DALI Night vision system for the car - thermal imaging camera and 7" CCTV monitor waterproof

Night vision system for the car - thermal imaging camera and 7" CCTV monitor waterproof

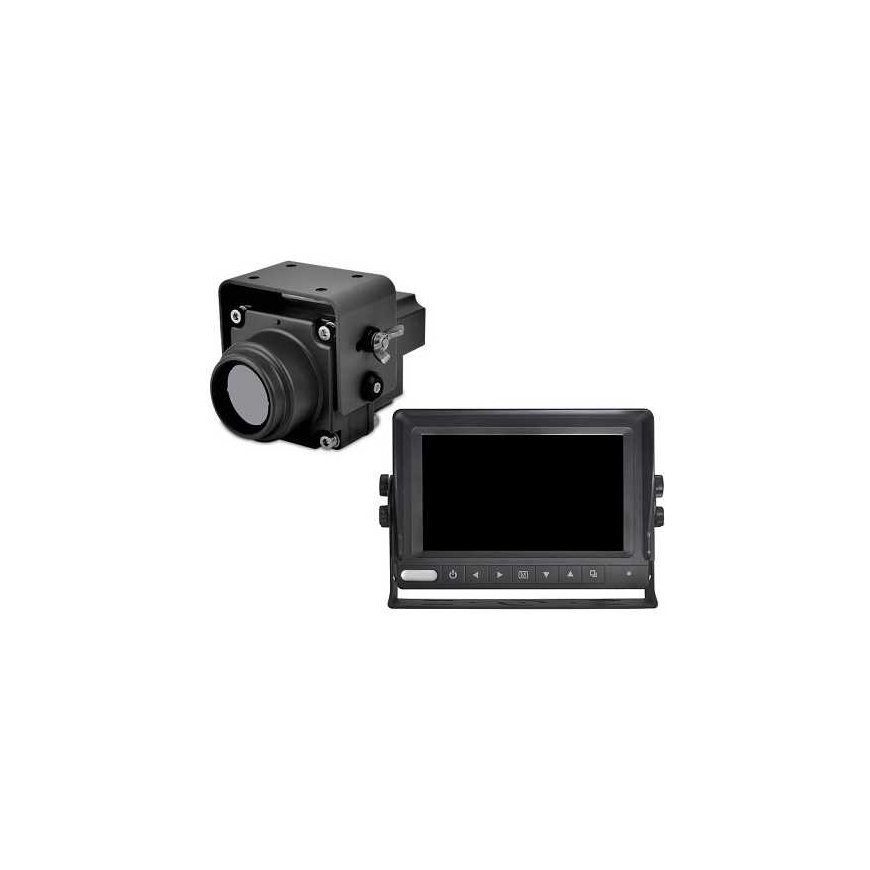

The thermal imaging camera (384x288 resolution) and 7-inch color TFT-LCD monitor (IP69k class), meeting the requirements of military and industrial standards, are adapted to harsh atmospheric conditions and strong vibrations and provide visibility for safe driving regardless of adverse circumstances.

Camera Features:

• The thermal imaging camera's uncooled infrared military-grade microbolometer sensor provides night vision even without any light source.
• The uncooled IR microbolometric sensor helps detect subtle temperature changes and provides effective visibility at a distance of 350m, regardless of total darkness, blinding reflectors, smoke, fog, dust or rain.
• Fixed lenses show a clear panoramic view.
• 384x288 pixel resolution sensor with fixed lens.
• Field of view 37.9°×28.5°.
• Low energy consumption, up to 6W.
• Shock and vibration resistant.
• Protection against reverse polarity and overvoltage.

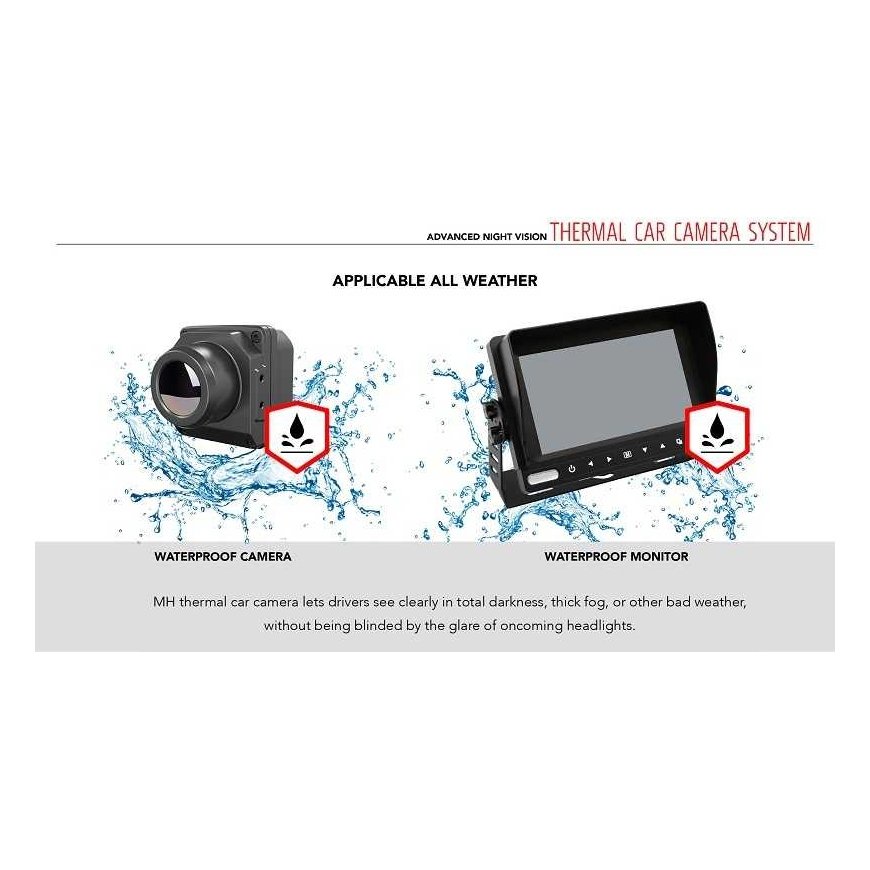

• IP67 protection - resistance to dust and water.
• Application: Can be installed in any type of vehicle, SUV, ATV, boat or car 4×4.
• The production process is controlled according to the international ISO TS 16949 standard for car production.

Features of the monitor:

• 7 inch color TFT-LCD monitor, industrial grade, IP69k waterproof and pressure resistant, RGB 800x480 high resolution, 400cd/m2 high brightness and clear image, with touch control keys.
• The monitor screen is covered with 2mm thick high permeability PMMA material, it is adapted to extreme environmental conditions: such as high humidity, low or high temperature, adverse weather conditions, rain, mud.
• Industrial-grade digital video processor for cars.
• Supports connection of two CVBS cameras.
• OSD menu functions: brightness, mirror/normal image of each camera separately, reverse image delay time, language selection.
• Sun visor. Heat-dissipating aluminum alloy body.
• Protection against load shedding, overvoltage, short circuit, reverse polarity.
• LED constant current and constant pressure support function.
• The monitor is robust, shock and vibration resistant.
• Wide application: SUVs, ATVs, ambulances, school buses, street sprinklers, horse trailers, waste management vehicles, trucks, loaders, forestry or agricultural machinery, marine territory, construction and mining equipment, various vehicle monitoring systems.

Technical data of the thermal imaging camera:

• Sensor resolution: 384x288.
• Sensor Type: Uncooled FPA.
• Field of view: 37.9°×28.5°.
• Focal length: fixed, >/= 6m.
• Wavelength: 8-14 microns (micrometers).
• Power supply: DC 12-32V.
• Consumption: <6W.
• Video output: PAL.
• Frame rate: 50Hz.
• Focus type: No focus.
• Impact protection: GJB150A-2009.
• Vibration resistance: GJB150A-2009.
• Electromagnetic compatibility: GJB151A.
• Operating temperature: -41°C~ +65°C.
• Storage temperature: -55°C~ +85°C.
• Protection class: IP67.
• Weight: 750g.
• Size: 64x64x115mm.

Monitor technical data:

• Screen resolution: 800(H) x 480(V) pixels.
• Active screen size: 153.6 x 86.6 mm.
• Response time: 25ms.
• Video input: 2-channel, PAL/NTSC.
• Brightness: 400 cd/m2.
• Contrast: 500:1.
• Processor: industrial grade Techwell.
• Power supply: DC 11-32V.
• Consumption: 5W (max.).
• Vibration resistance: GB/T 2423.56-2018.
• Surge and load shedding protection: ISO16750-2.
• Operating temperature: -20°C~ +70°C.
• Storage temperature: -30°C~ +80°C.
• Protection class: IP69k.
• Body material: ABS plastic, aluminum alloy.
• Weight: 700g.
• Size: 220x149x84mm.
