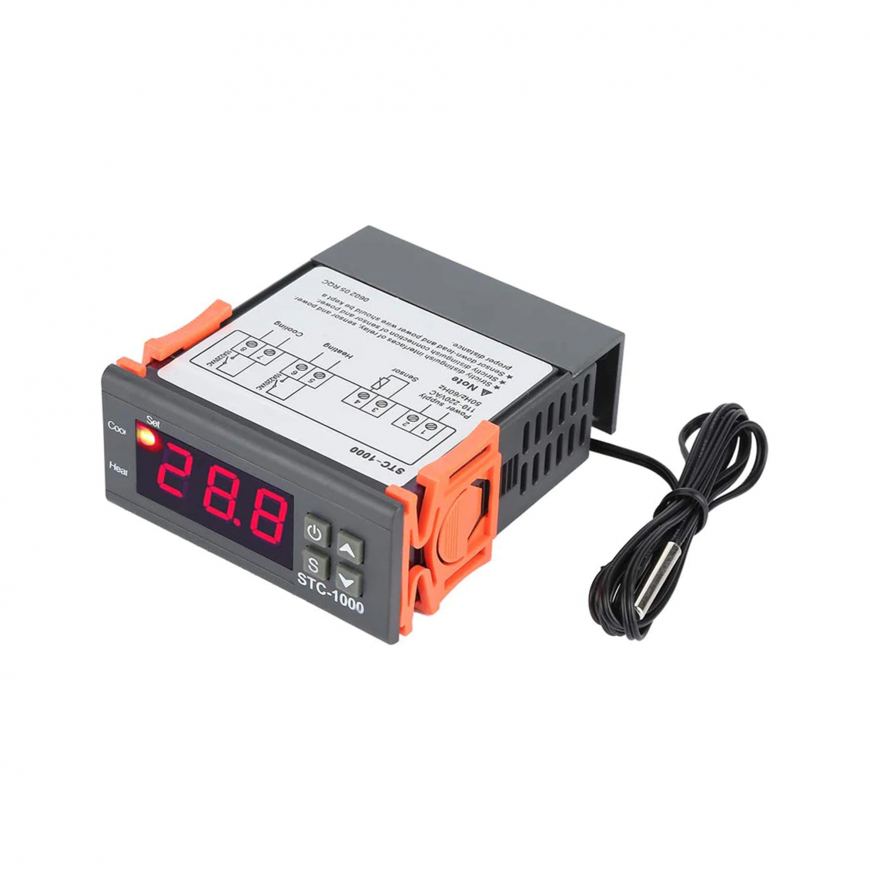

Eurokomp Thermostat 230V STC-1000
19.00 €
2766893 URZ4045
5903933691756
Tarneaeg 6-10 t.p.
Kauba vastu huvi?
Kõik toote kohta
Temperature regulator with sensorModel: STC-1000 STC1000
The universal regulator is used for the operation of central heating pumps, circulation pumps, fans and many similar devices.
Switching between cooling and heating modes
Temperature control
Temperature calibration
External thermostat
Key Features:
Heating - in this mode, the relay is activated until the temperature rises to the set value
Cooling - in this mode, the relay is activated until the temperature drops to the set value
Temperature control by setting setpoint and hysteresis value.
Temperature calibration.
Compressor delay.
Large and easy-to-read LCD display.
Connection diagram on the body.
Minimalistic and lightweight design, made with premium components.
Wide temperature adjustment range (from -50 to 90 degrees C).
Automatic alarm when temperature is too high or sensor error occurs.
Technical parameters and specifications:
Temperature measurement range: -50°C - 99°C
Measurement accuracy: ±1°C range (-50°C - 70°C)
Power supply: 220VAC ±10%, 50/60Hz
Sensor: NTC sensor (1pc)
Relay contact load: cooling (10A/250VAC), heating (10A/250VAC)
Maximum power of connected contacts: Cooling 2.5kW, Heating 2.5kW
Operating temperature: 0°C - 60°C
Permissible humidity: 20% - 85%
Measurement resolution: 0.1°C
Sensor error delay: 1 minute
Power consumption: <3W
Storage temperature: -30°C - 75°C
Product dimensions:
Front panel: 75 (length) x 34 (width) [mm]
Product dimensions: 75 (length) x 34 (width) x 85 (height) [mm]
Installation dimensions: 70 (length) x 27 (width) [mm]
Sensor cable length: ~1 meter (with sensor)
Including:
Thermostat
Temperature sensor
