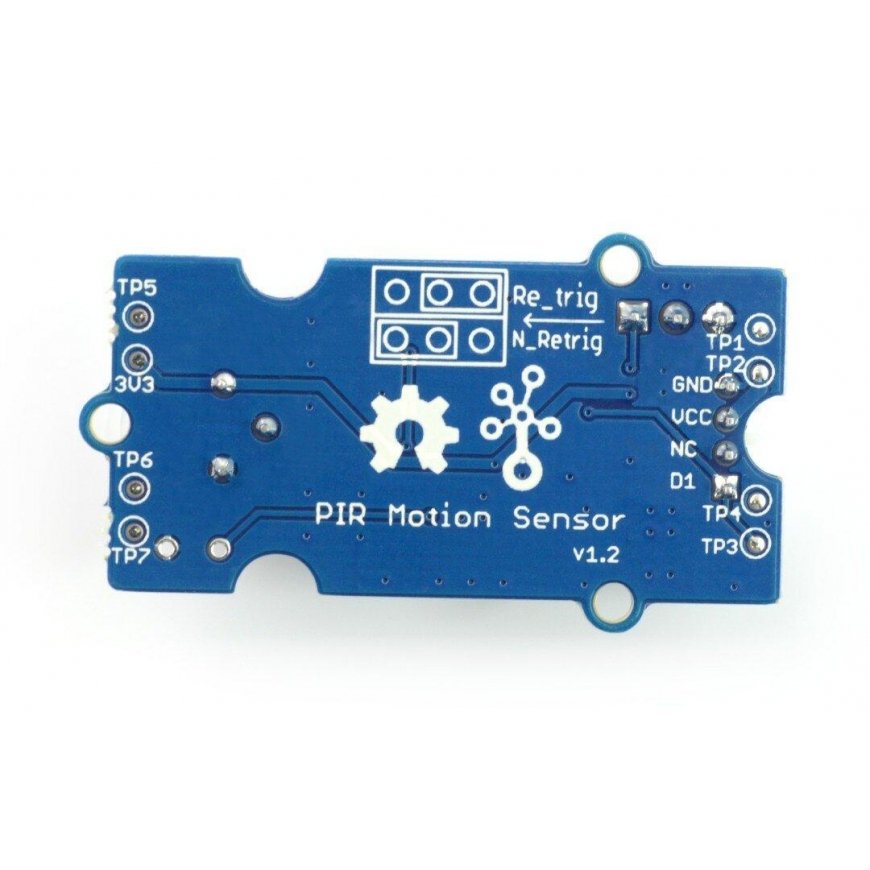

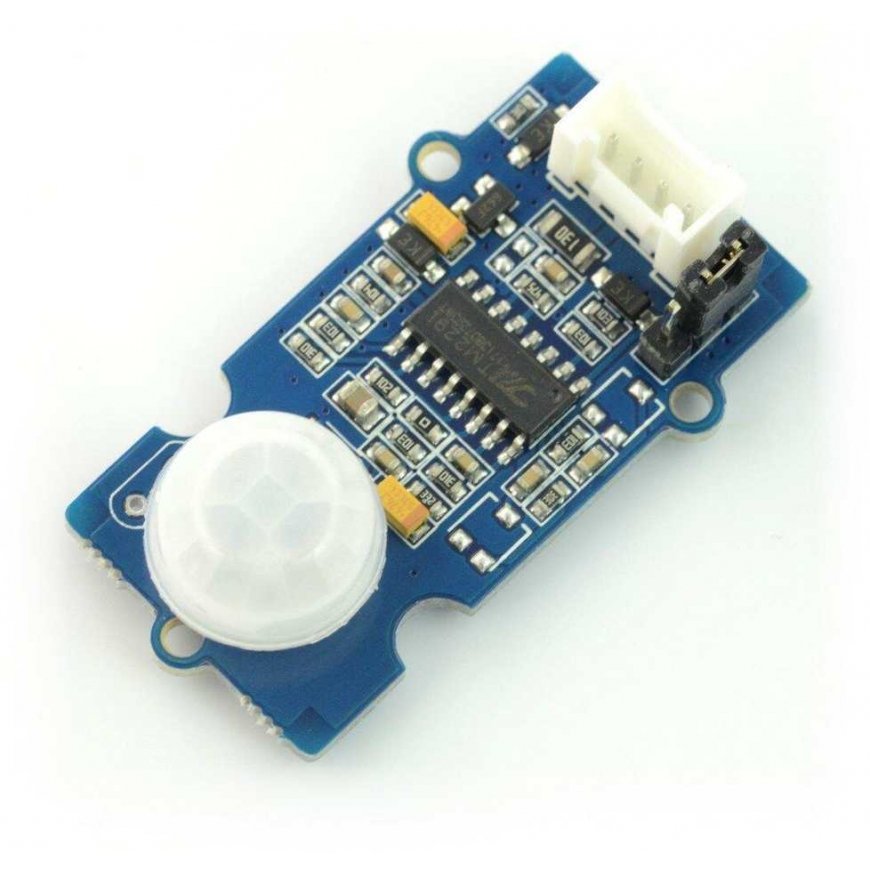

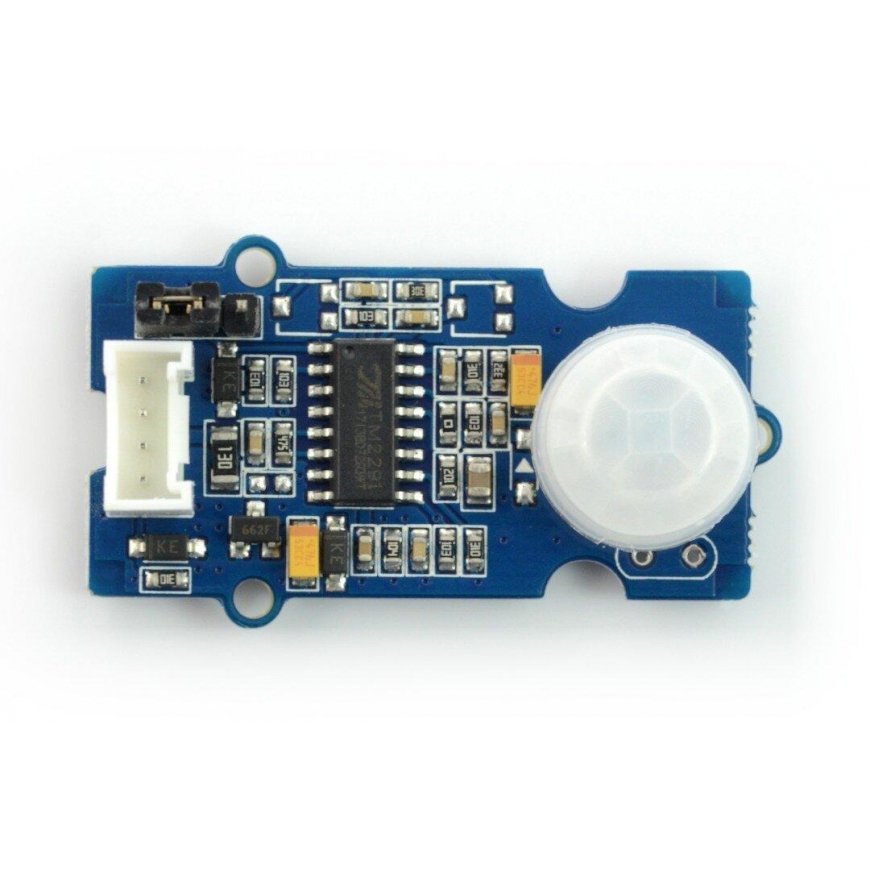

Seeed Studio Grove, PIR motion sensor
19.48 €
2730872 AN-11343
5904422350031
Tarneaeg 8-12 t.p.
Kauba vastu huvi?
Kõik toote kohta

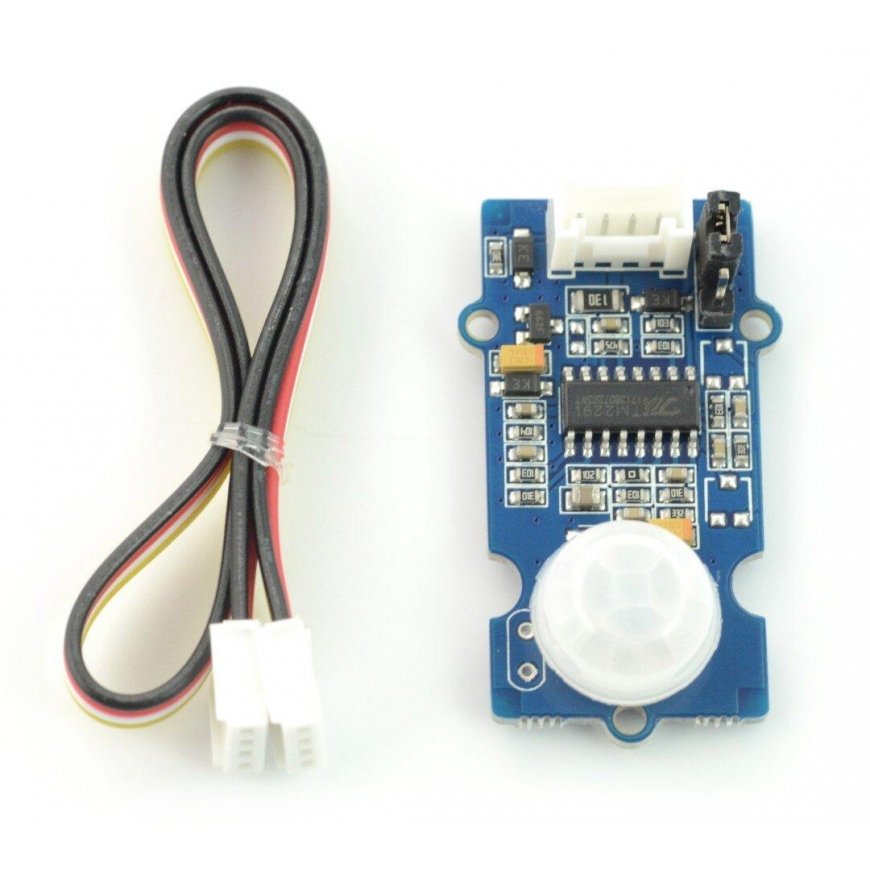

Motion sensor type PIR interface is compatible with Grove series. Object detection is indicated by the digital position relative to pin SIG. The range can be set from 0.1 to 6m and the response time from 0.3 to 25s. The sensor is compatible with Arduino, Raspberry Pi and other microcomputers/controllers. A Grove cable is also included.
Specifications:
- Supply voltage: 3V to 5V
- Current consumption (3 V): 100 µa
- Current consumption (5 V): 150 mA
- Range: 0.1m to 6m (3m)
- Response time: from 0.3s to 25s
- Wavelength: 7 µm to 14 µm
- Viewing angle: 120°
- Sensor lens: Fresnel 8120
- Controller: BISS0001

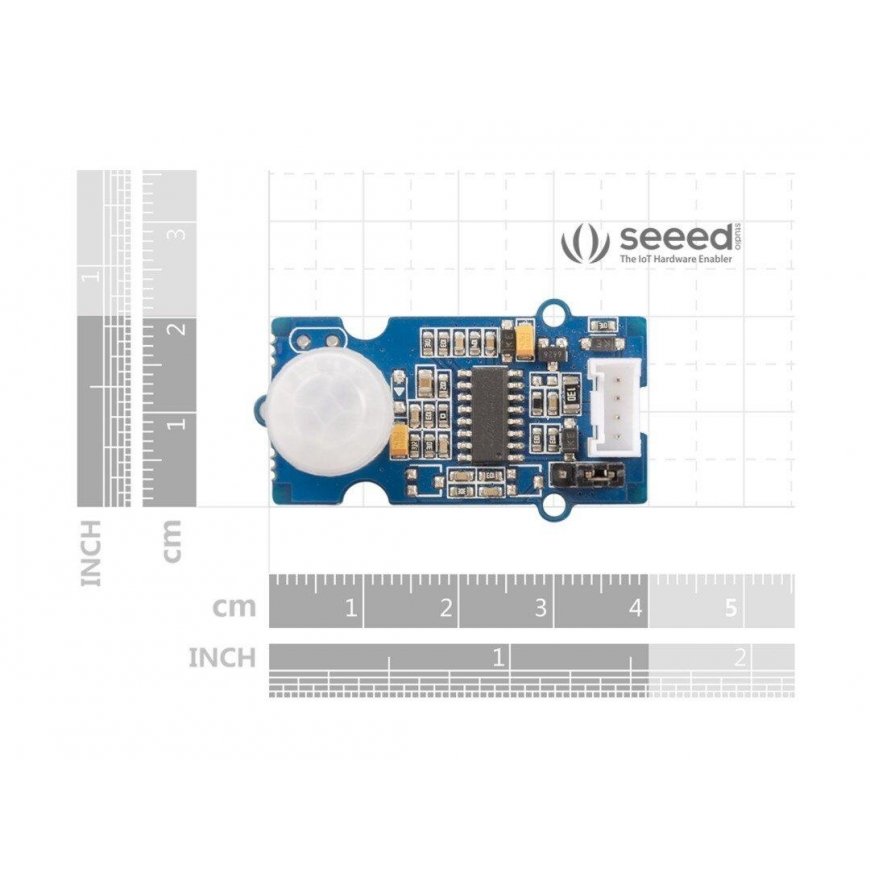

- Dimensions: 40 x 20 x 15 mm
- Weight: 12 g
