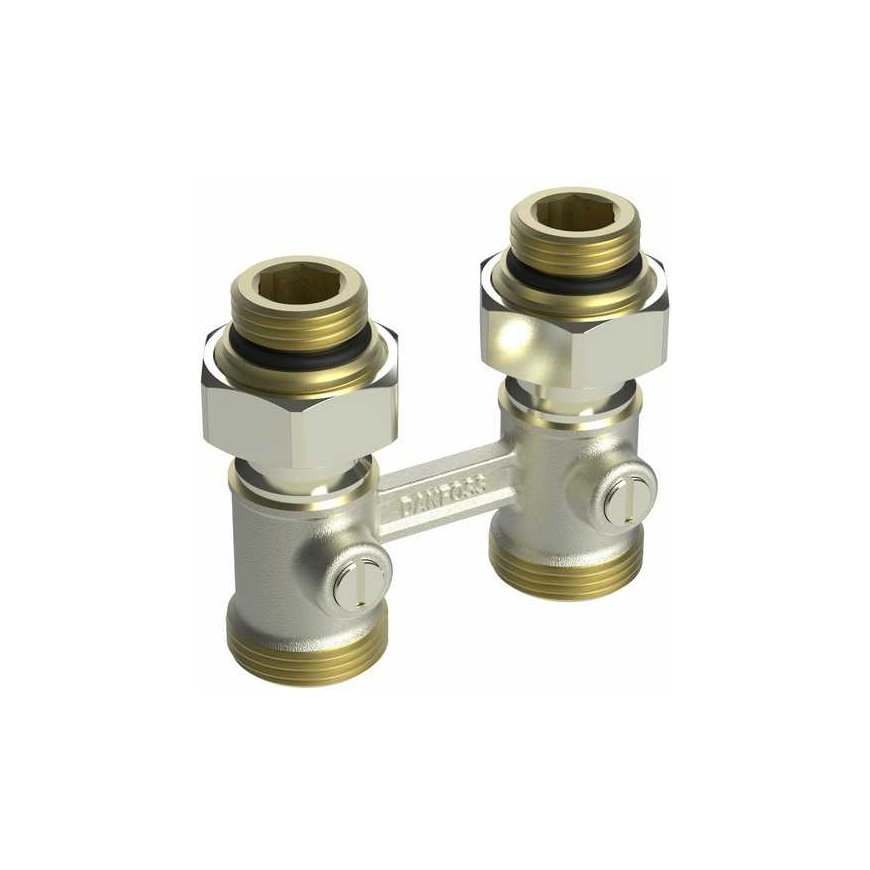

Lower connection assembly for two-pipe system Danfoss, RLV-KB, straight, 1/2&039&039-3/4&039&039, type H
2665384 003L0392
5714279001631
Tarneaeg 11-12 t.p.
Kõik toote kohta
H-type valve RLV-KB for radiators with integrated thermostatic valve in two-pipe systems.
The RLV-KB allows each radiator with an integrated thermostatic valve to be individually closed with a distance between centers of 50 mm, e.g. for easy maintenance without affecting other parts of the system.
The H-type RLV-KB valve is nickel-plated and comes in two versions: straight and angled. Special adapters allow the H-type valve to be used both in radiators with an internal thread of G ½ and in radiators with an external thread of G ¾.
Connections to copper, mild steel, PEX and Alupex pipes are made using Danfoss compression fittings. See separate technical description. Connections to copper, mild steel, PEX and Alupex pipes are made using Danfoss compression fittings.
To prevent deposits and corrosion, the composition of the hot water must meet the requirements of the VDI 2035 directive (Verein Deutscher Ingenieure).
