Smallrig 2904 Swivel and Tilt Adjustable Monitor Mount with 1/4
2600724 2904B
6941590008721
Tarneaeg 8-12 t.p.
Kõik toote kohta

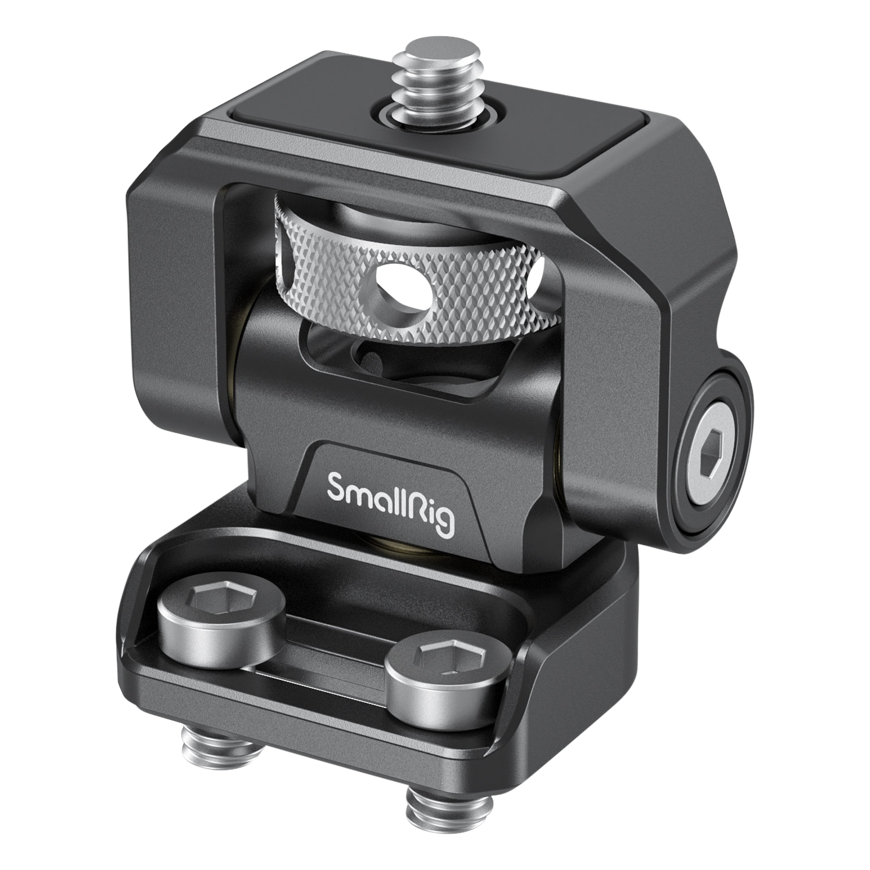

The SmallRig 2904 Swivel & Tilt Adjustable Monitor Mount with 1/4" Screws Mount is designed to attach a monitor to a camera mount or other mounting system with two 1/4"-20 screws. There is a 1/4"-20 screw on the top for mounting a monitor, light or microphone. The mount can be rotated 360° sideways and tilted 170° with free braking in any position. The tightness of each axis can be adjusted with a diagonal wrench. The sturdy mount is CNC machined machined aluminum and can hold a 5" and 7" monitor weighing up to 1.5kg. The swivel and tilt mount has protective rubber padding on top and a key to tighten the mounts is included for added security /4"-20 threaded holes for more DIY options.
SPECIFICATIONS
Maximum load: supports 5 and 7 inch built-in monitor up to 1.5 kg.
Tilt angle: rotates 360° and tilts 170°
Adjustment: adjustable compression of each axis; there are slots on the thumb screws to tighten the bracket

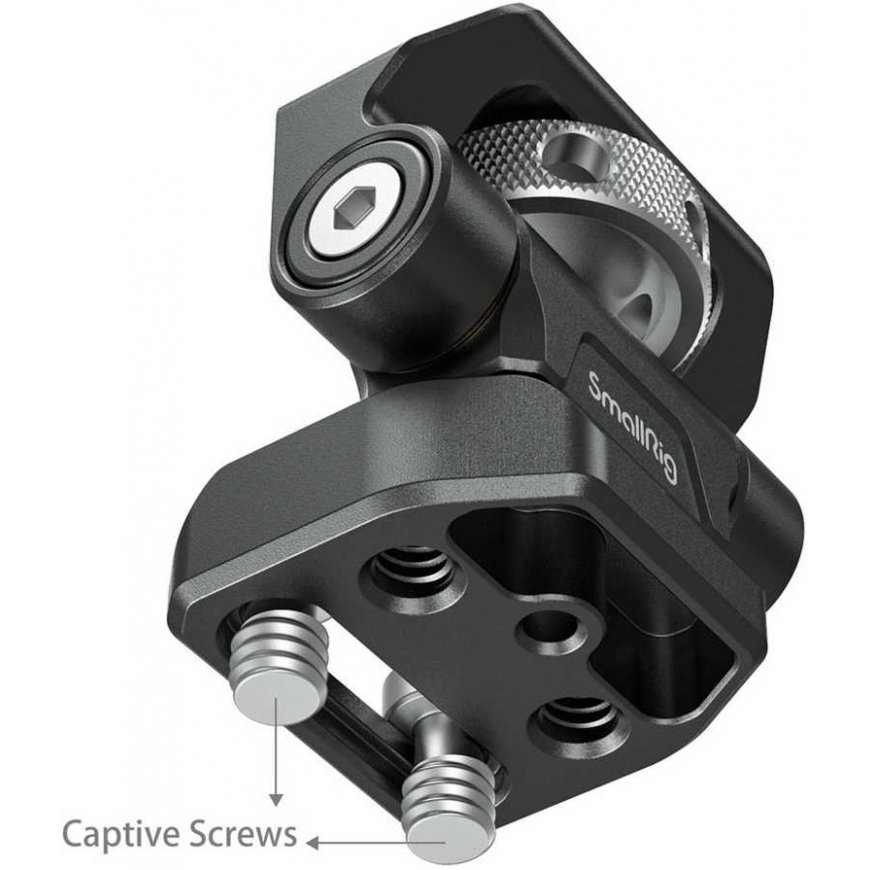

Mounting: Attaches to the bracket handle with two 1/4"-20 captive screws
Package Contents: 1 x Monitor Mount; 2 x Allen key
Compatibility: Compatible with SmallHD Focus Series, SmallHD Focus OLED Series, SmallHD UltraBright Series, SmallHD 500 and 700 Series, Atomos Ninja Series, Atomos Shogun Flame, Blackmagic Video Assist 5", Blackmagic Video Assist 4K 7"
Manufacturer: SmallRig

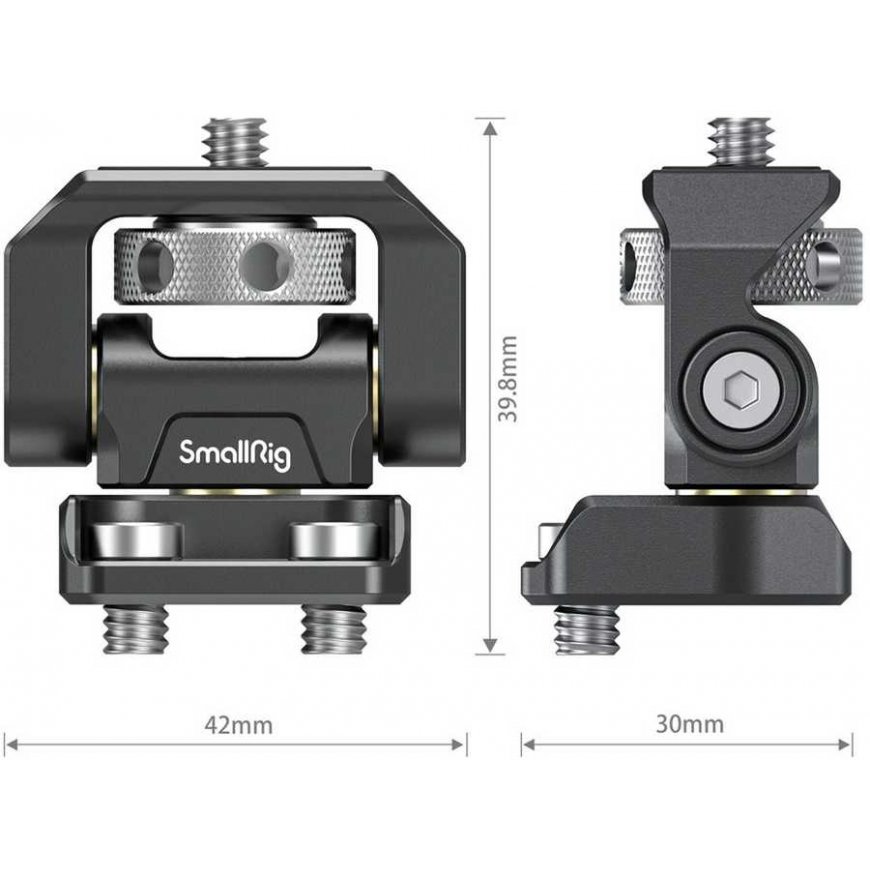

Dimensions: 42 x 30 x 39.8 mm
