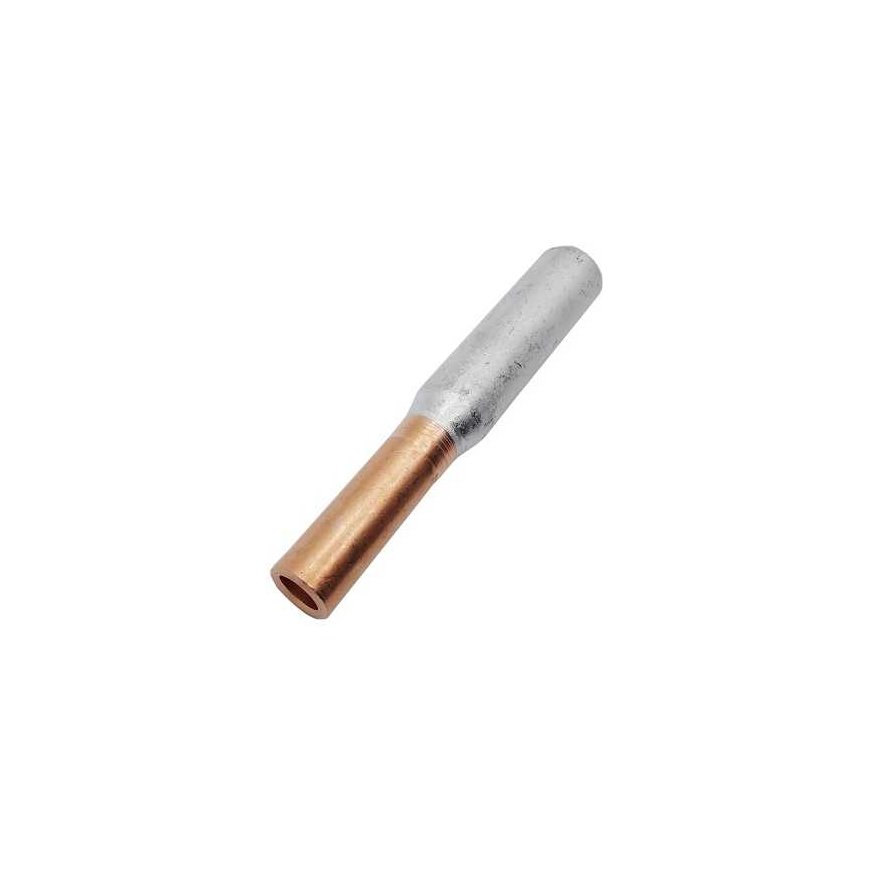

Hismart Pressed bimetallic connector, aluminum+copper, for 16+10mm² cables, 10 pcs.
13.38 €
2546104 NV822225
9990000822225
Tarneaeg 4-7 t.p.
Kauba vastu huvi?
Kõik toote kohta
Pressed bimetallic connector, aluminum+copper, for 16+10mm² cables, 10 pcs.Features:
A contact made of two different metals, tube-shaped, pressed.
Intended for connecting aluminum wires with ordinary multi-core copper wires.
Solid central barrier.
Pre-filled with joint compound.
Fused by friction.
Technical data:
Aluminum cable cross-sectional area: 16.0mm².
Copper cable cross-sectional area: 10.0mm².
Material: copper >/=99.9% + aluminum >/=99.5%.
Surface treatment: no.
Isolated: no.
Connection angle: 180° (horizontal).

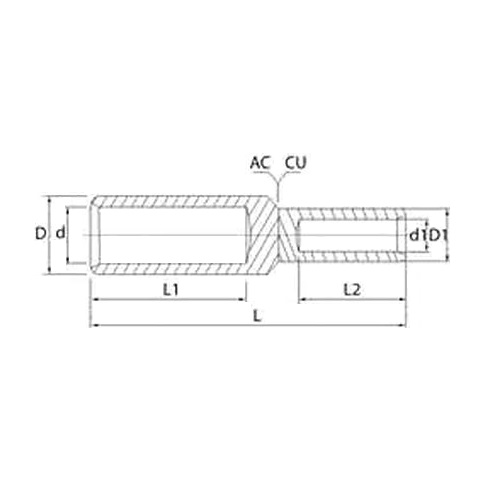

Connector length: 75mm.
Aluminum joint depth: 35mm.
Copper connection depth: 30mm.
With inspection cavity: no.
Inner diameter of aluminum connector: 6.0mm.
Outer diameter of aluminum connector: 10mm.
Inner diameter of copper connector: 5.0mm.
Outer diameter of copper connection: 9mm.
The set consists of: 10 pcs.
