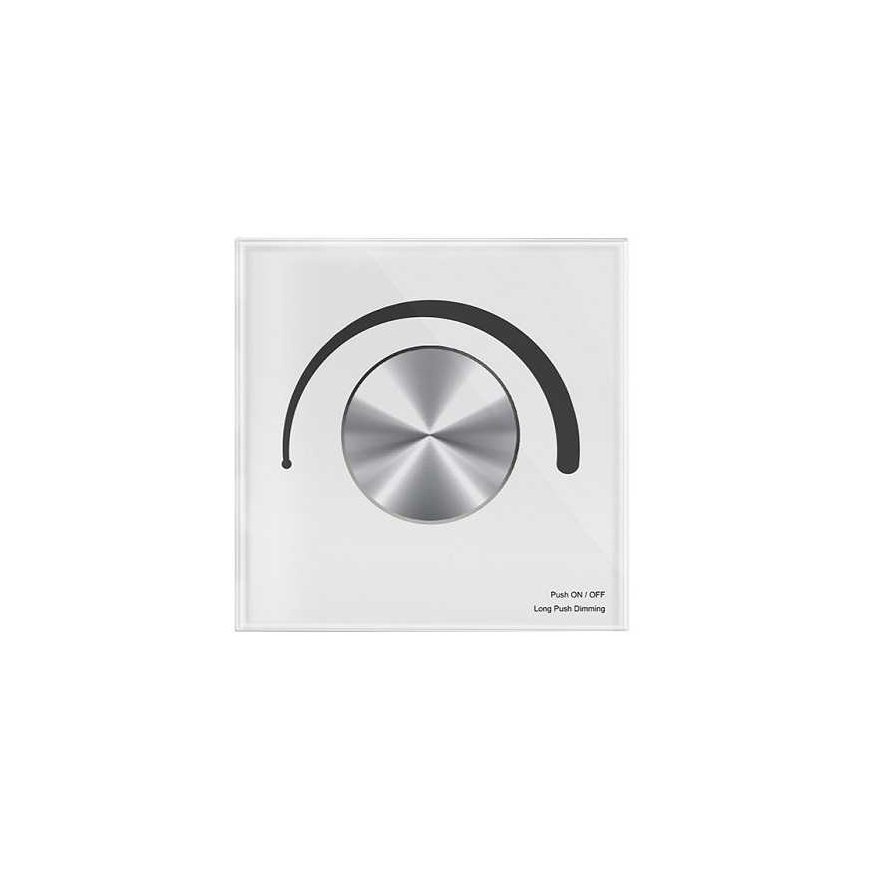

Wall-mounted TRIAC light regulator 100-240V AC 1x 1.5A, for single-color LED strips, incandescent and halogen lamps, 1 channel, with mechanical wheel, supports control of 50 lighting levels.


Features:
Supports lighting systems: single color.
Allows you to smoothly dim or brighten the lighting. Compatible with dimmable LED strips/bulbs, incandescent lamps, halogen lamps.
The rotating wheel allows you to conveniently turn the light on/off and adjust the brightness of the illumination in 50 levels.
A long press of the wheel allows you to adjust the brightness of the illumination in 256 levels.
Has a TRIAC control function.
Can be used as a remote control.
The operating frequency is 2.4GHz, which ensures a stable signal at a distance of up to 10m, it is less disturbed by obstacles such as walls, partitions, etc.
It has a matching button (MATCH) for connecting remote controls.
Luxurious design, glass panel and silver dial. Mounted on the wall as a switch.
The control regulator is universal, it can work with various LED controllers.
Protection against overload, overheating and short circuit.
Certificates: CE (EMC/LVD), RoHS.


Technical data:
Product model: S1-K.
Compatibility: Skydance V1, V2-L, V3, V3-L, V3-X, V4-L, V4-D, VP.
Number of channels: 1.
Controlled lighting systems: single color.
Operating frequency: RF 2.4GHz.
Supply voltage: 100-240V AC.
Output voltage: 100-240V AC.
Output current: 1.5A.
Power: 200W@220V; 100W@110V (LED / TRIAC); 400W@220V; 200W@110V (for incandescent/halogen lamps).
Dimming range: 0-100%.
Buttons: 1 (rotate and press) wheel.
Operating distance: up to 10m.
Safety class: IP20 (not waterproof).
Cross-sectional area of suitable wires: 0.5-2.0 mm².
Certificates: CE, EMC, LVD, RED, RoHS.
Operating temperature: -30~+55°C.
Dimensions: 86 x 86 x 48 mm.
Color: white.
Weight: 181g.


Complete set: controller, 2x mounting screws, user manual.


Warranty: 24 months
