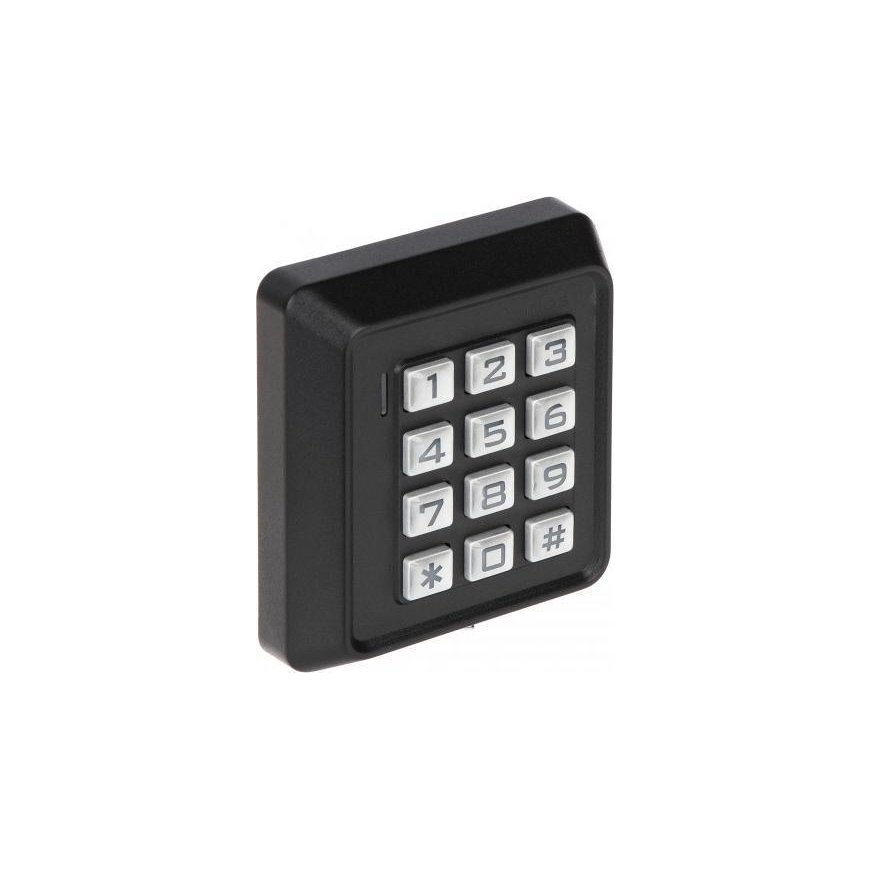

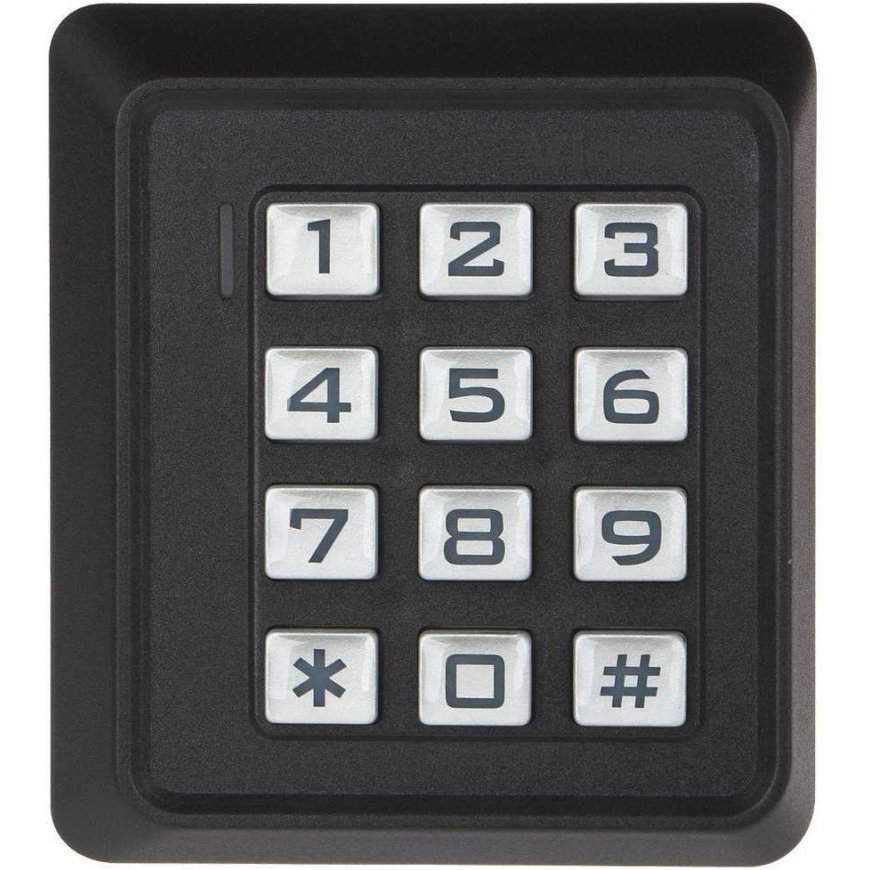

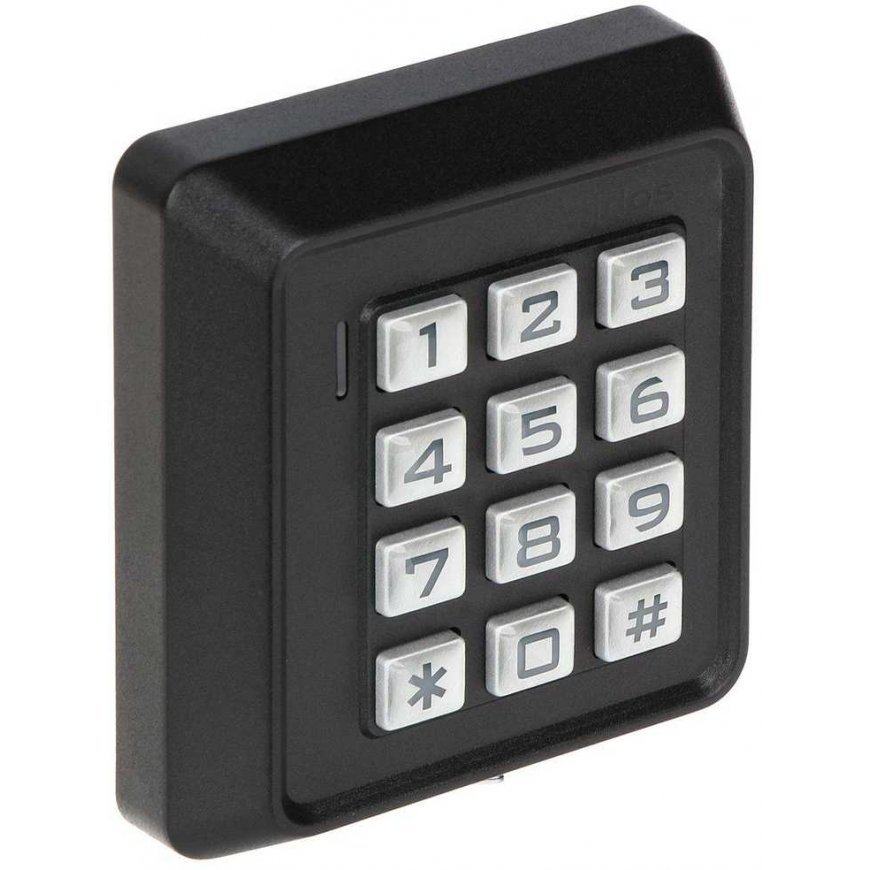

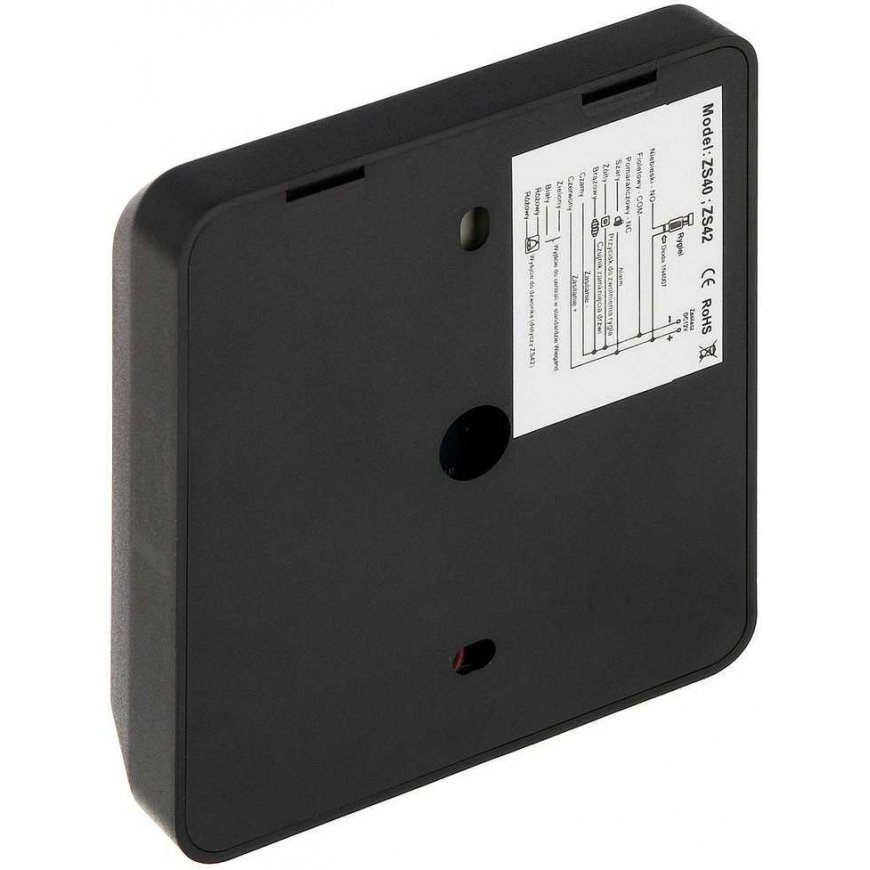

CODE LOCK ZS40B INSIDE
2379028 ZS40B
5907281203418
Tarneaeg 11-15 t.p.
Kõik toote kohta
Internal, independent code lock with RFID reader.
Independent installation work gives the user the opportunity to:
Opening with the help of a card or PIN code.
Adding saved cards or PIN codes to the memory.
Would leave the door open alarm.
Sound and optical alarm.
Options provided to the administrator:.
Keyboard programming.
Adding a new card with a keyboard.
Adding a new card and entering a PIN code.
Changing the user's PIN code.
Deleting a user's PIN code.
Setting the time to remove the blockade.
Return to default settings.
| Card support : | Unique EM 125kHz |
| Remote card reading distance : | 3 ... 6 cm |
| Automatic work : | ✔ |
| Integrated keyboard : | ✔ |
| Connection : | Wiegand 26 |
| Call Button : | - |
| Tamper output : | - |
| Meals : | 12 V DC ± 10% |
| Maximum current demand : | 25 mA (Standby mode) 60 mA (operating) |
| Relay contact load : | 1 A / 12 V |
| Main features : | Number of relay outputs: 1, 2000 indexed users, Identification: Card and/or PIN code Blue button lighting Cooperation with door contact and exit button Servicing of electric suspensions and electromagnetic valves Reversing screw service Anti-sabotage protection (detection of removal from the installation site and opening of the housing) Alarm output NO/NC output |
| Working temperature : | -20 °C ... 50 °C |
| Permissible relative humidity of the environment : | 10 ... 90% (non-condensing) |
| Sealing class : | IP40 |
| Body : | Plastic (ABS) |
| Color : | Black |
| Weight : | 0.09 kg |
| Dimensions : | 82 x 92 x 21 mm |
| Manufacturer / Brand : | INSIDE |
| Warranty : | 3 years |
