OUTPUT/INPUT EXPANDERS MCX8-BRD ROGER
229.00 €
Kuumakse alates 6,80 €
2345540 MCX8-BRD
5907608961632
Tarneaeg 11-15 t.p.
Kauba vastu huvi?
Kõik toote kohta

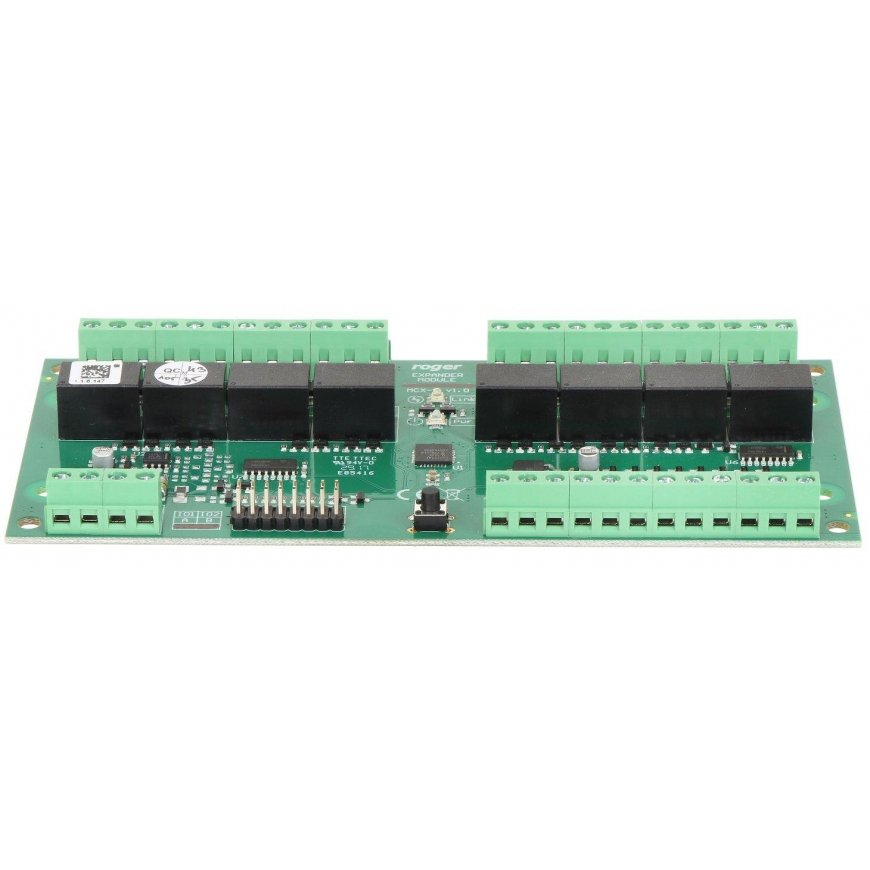

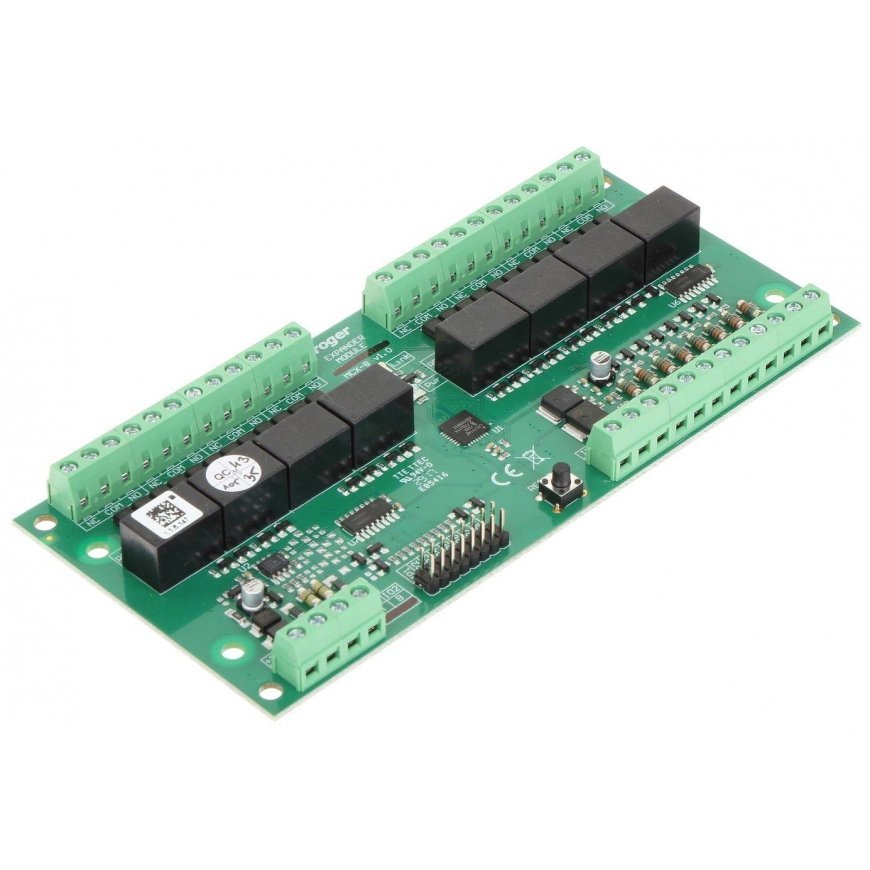

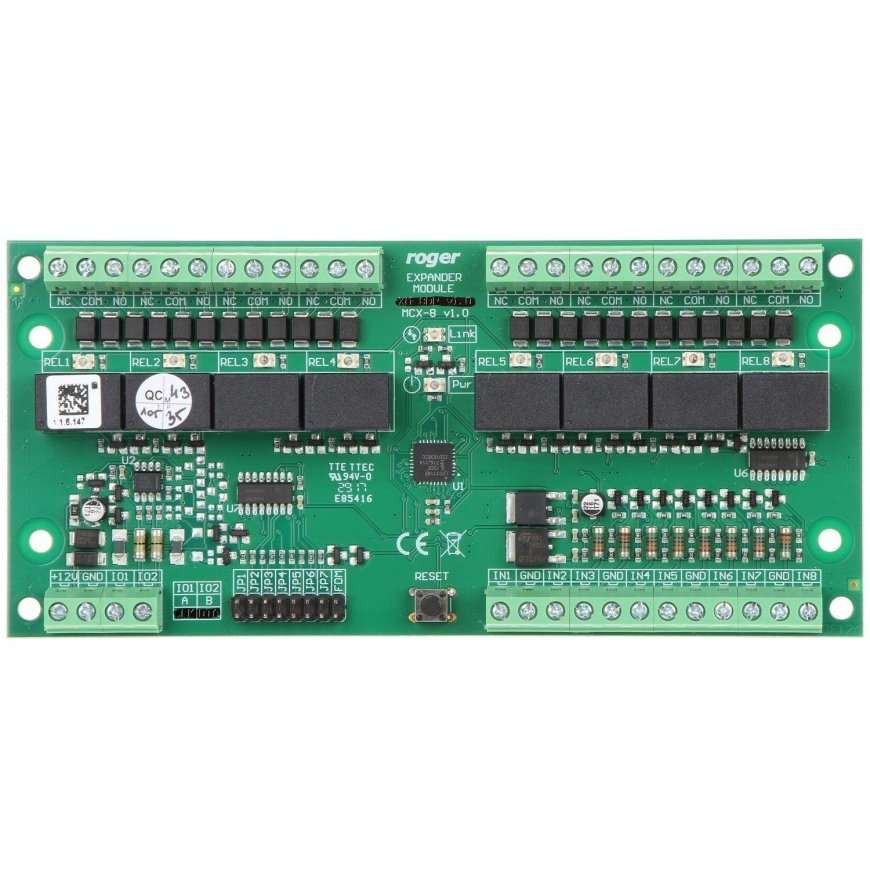

MCX8-BRD is an input and output expander designed for use in the access control system RACS 5.
The device provides 8 parameter input lines and 8 relay outputs.
Each input can be individually parameterized in terms of response time and typology of connected contacts and resistors.
| Inputs : | 8 x NO/NC/EOL/2EOL/3EOL |
| Relay output : | 8 x 1.5 A / 30 V |
| Meals : | 12V DC |
| Main features : | Possible working time of the outputs in Double Wiring mode The reaction time of the outputs is defined in the range of 50 ... 5000 ms Definition of the output line rest polarization Configuration via RS-485 (RogerVDM) Software update via the RS-485 (Roger VDM) port LED indication |
| Weight : | 0.118 kg |
| Dimensions : | 72 x 155 x 15 mm (without stand) |
| Manufacturer / Brand : | ROGER |
| Warranty : | 3 years |
