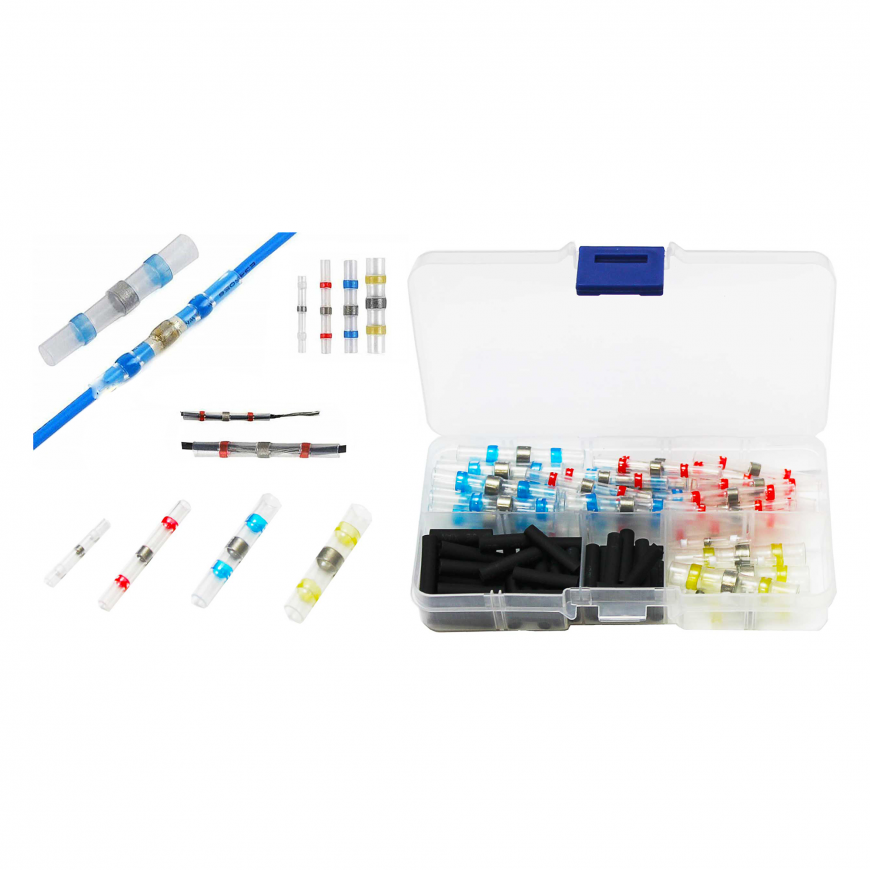

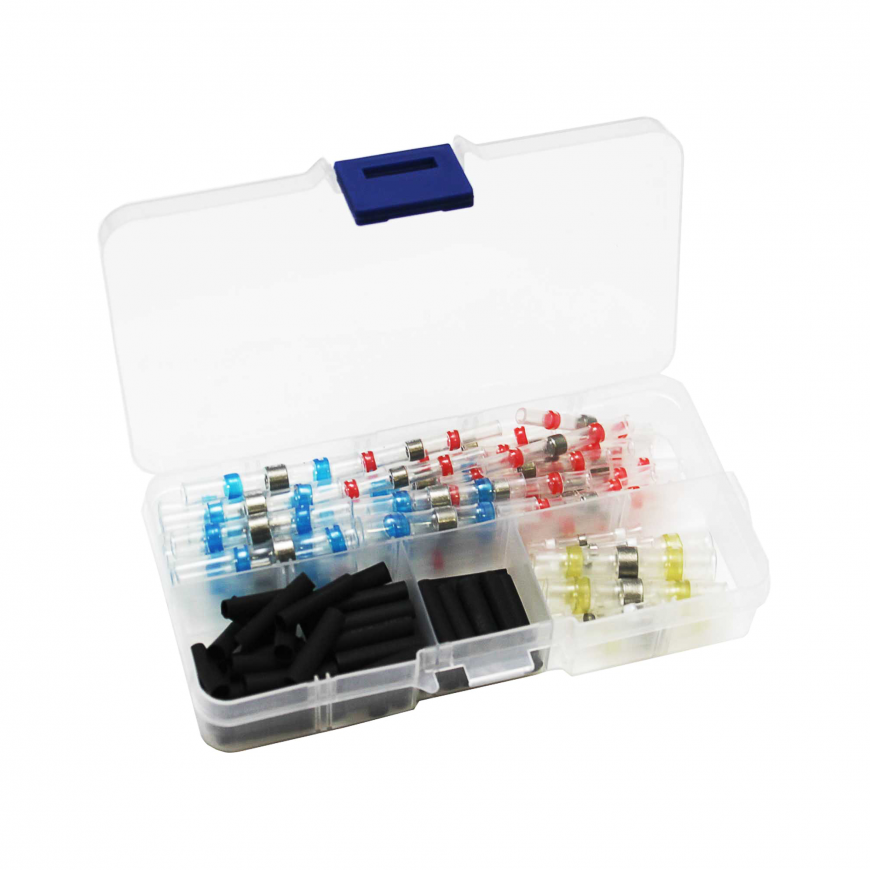

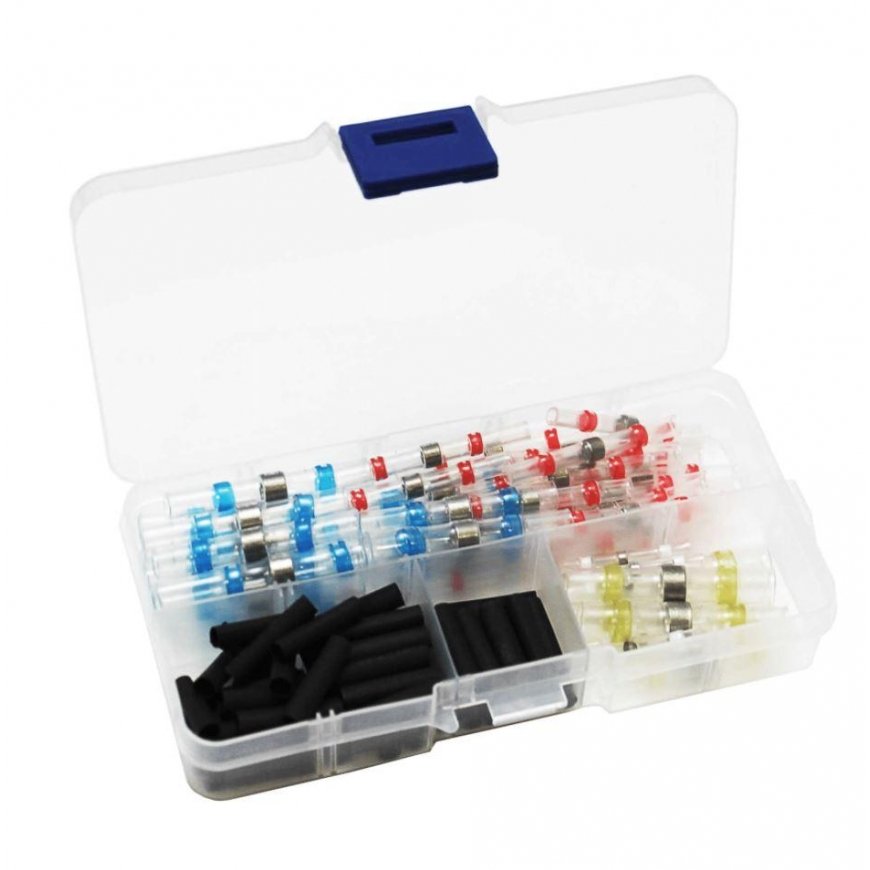

Inne Set of contacts with solder for connecting wires and thermotubes
19.00 €
2334806 NAR0856
5903933690872
Tarneaeg 6-10 t.p.
Kauba vastu huvi?
Kõik toote kohta
Solder contacts are indispensable when we want to firmly and reliably connect or repair cables. The heat-shrink tube contains a ring of solder which, when heated to about 150°C, melts and joins the wires together. In addition, there is an adhesive layer inside that strengthens and protects the joint from moisture. After connecting the wires, no additional insulation is required.
The set includes:
- Solder Contact - White: 0.25~0.35mm² (5pcs)
- Solder Contact - Red: 0.5~1.5mm² (20pcs)
- Solder Contact - Blue: 1.5~2.5mm² (20pcs)
- Solder Contact - Yellow: 4~6mm2 (5pcs)
- Thermal tubes without glue 3.2 / 1.6 mm 20 mm long (50 pcs.)
Specification:
- Operating temperature: -55°C ~ 125°C
- Shrinkage and melting temperature of solder contacts: above 150 °C
- Shrinkage ratio: 2:1
- Insulating material: polyolefin
- Maximum voltage: 600V.
- Shrink ratio: 2:1
