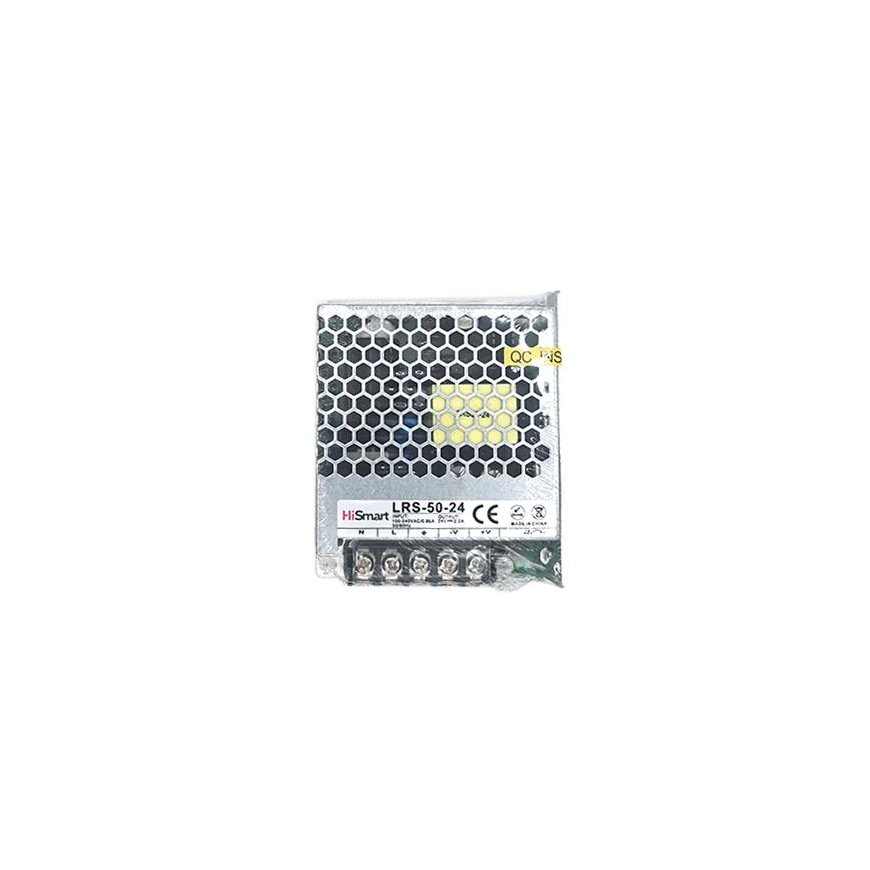

Hismart Power supply 24V, 2.2A, 50W
12,87 €
11.87 €
2243383 LRS-50-24
9990000700264
Tarneaeg 2-4 t.p.
Kauba vastu huvi?
Kõik toote kohta
Pulse power supply 24V, 2.2A, 50W.Features:
Narrow profile open type power supply operating in pulse mode.
Miniature size, 1U profile, light weight, high efficiency.
Protection: against overload, voltage increase, short circuit.
Cooling by free air convection.
Power consumption without load: <0.5W.
Working altitude up to 5000 meters.
Technical data:
Power supply type: pulsed.
Input voltage: AC 90-264V. Frequency: 47-63Hz.
Output voltage: DC 24V.
Possibility to adjust the output voltage within ±10%.
Maximum output current: 2.2A.
Maximum power: 52.8W.
Irregularities and noise: 150mV pp.
AC voltage: 0.95A/115V, 0.56A/230V.
Efficiency: 88%.
Drain current in the input circuit at AC 240V: up to 0.75mA.
MBTF: min 630000 hours
Operating temperature: from -30°C to +70°C.
Operating humidity: 20%-90%RH.
Dimensions: 99x82x30mm.
Weight: 0.21kg.
Warranty: 24 months
