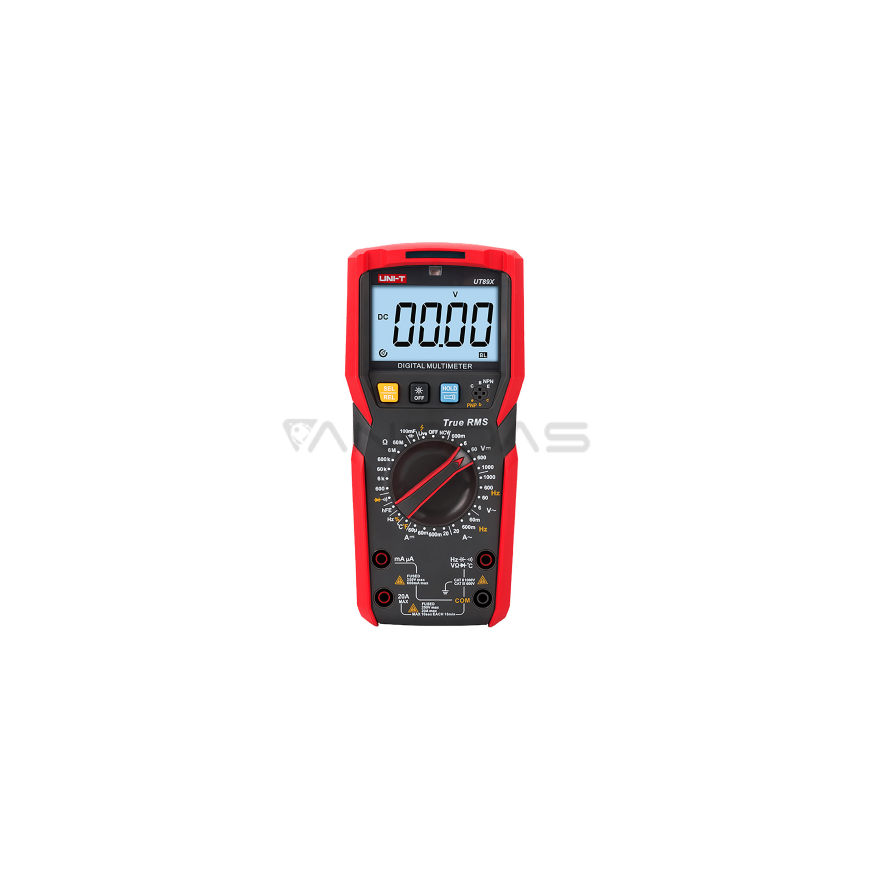

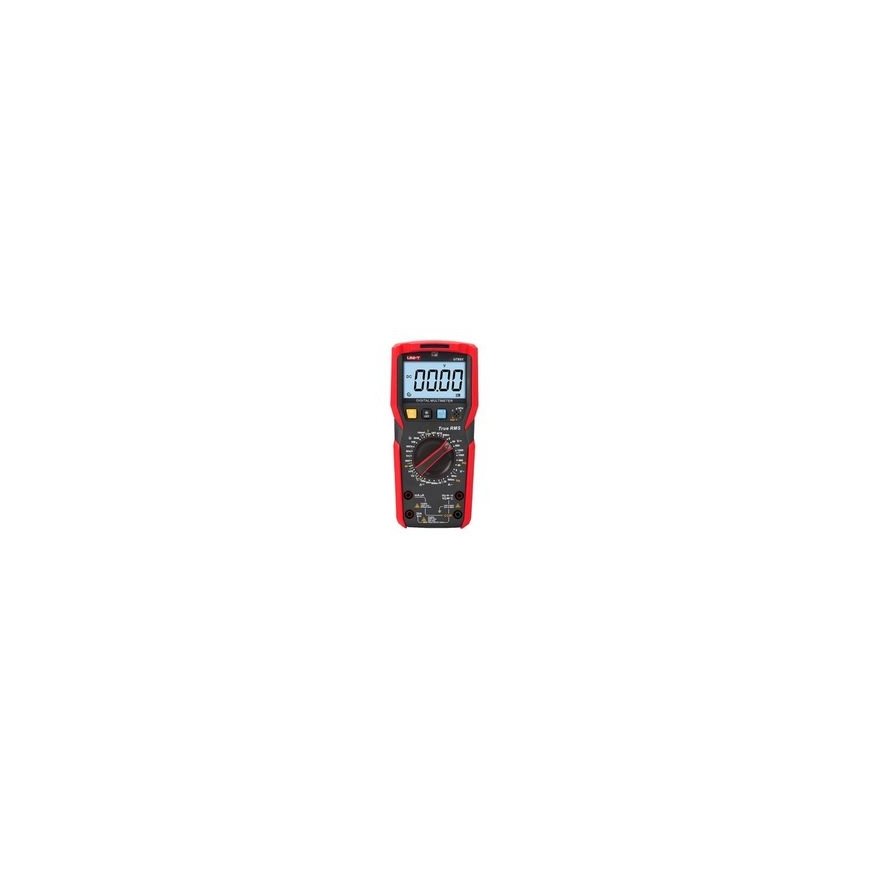

Universal multimeter Uni-T UT89X

Kõik toote kohta

UNI-T UT89X digital multimeter.

Functions:

• RMS
• A dual-range NCV test that quickly identifies neutral and live wires based on light intensity
• Audio/Video signal (V/A/Cap/Diode/hFE/NCV/Live)
• Diode/Continuity Test
• Transistor hFE
• Data storage
• Capacitor charging indicator
• Ergonomic design
• Drop resistance (1m)
• Flashlight
• Automatic backlight
• Automatic shutdown
• Low battery indicator

Specification:

• DC voltage: 600mV / 6V / 60V / 600V / 1000V ±(0.5%+2)
• AC voltage: 6V / 60V / 600V / 1000V ± (0.8%+5)
• Continuous current: 60 μA / 60 mA / 600 mA / 20 A ± (0.8%+8)
• AC current: 60 mA / 600 mA / 20 A ± (1%+12)
• Impedance: 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ ± (0.8%+3)
• Capacitance: 6 nF / 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF / 60 mF / 100 mF ± (2.5%+20)
• Frequency: 9.999 Hz / 9.999 MHz ± (0.1%+4)
• Duty Cycle: 0.1% ~ 99.9% ± (2% + 5)
• Temperature: -40℃~1000℃ ±(2%+4); -40℉~1832℉ ±(2%+8)
• AC voltage frequency response: 45~1000 Hz
• AC frequency response: 45~1000 Hz
• Power supply: 1.5V battery (R03) x 4
• Screen: LCD, 61 × 36 mm
• Size: 189×89×53mm
• Weight: 345 g
