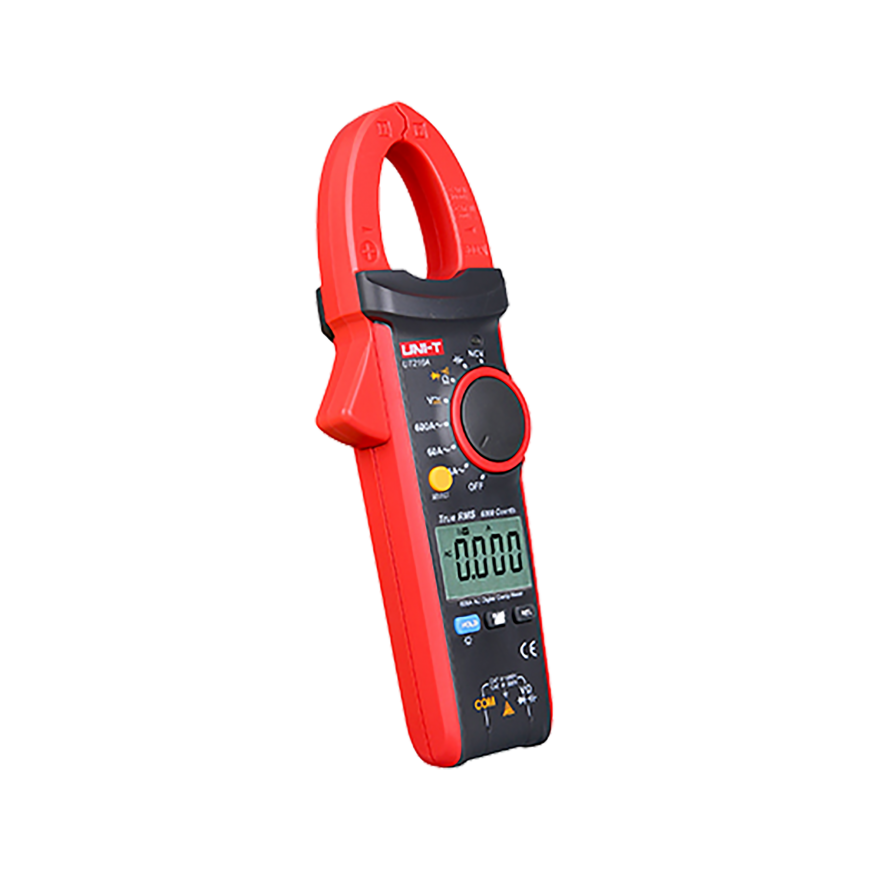

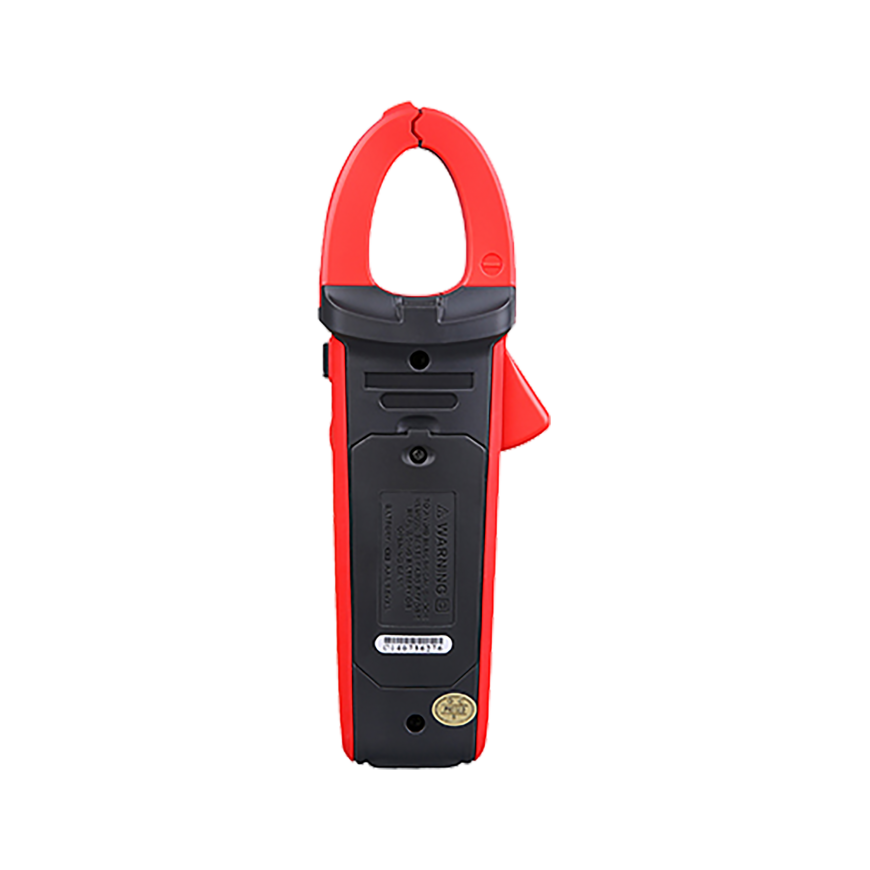

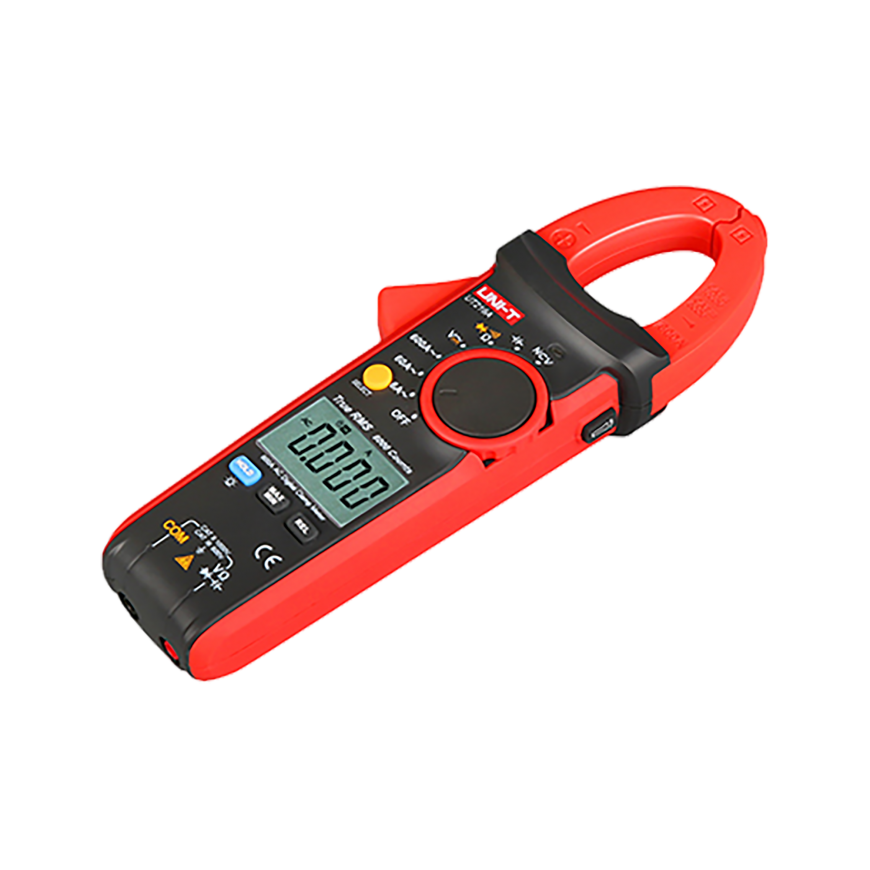

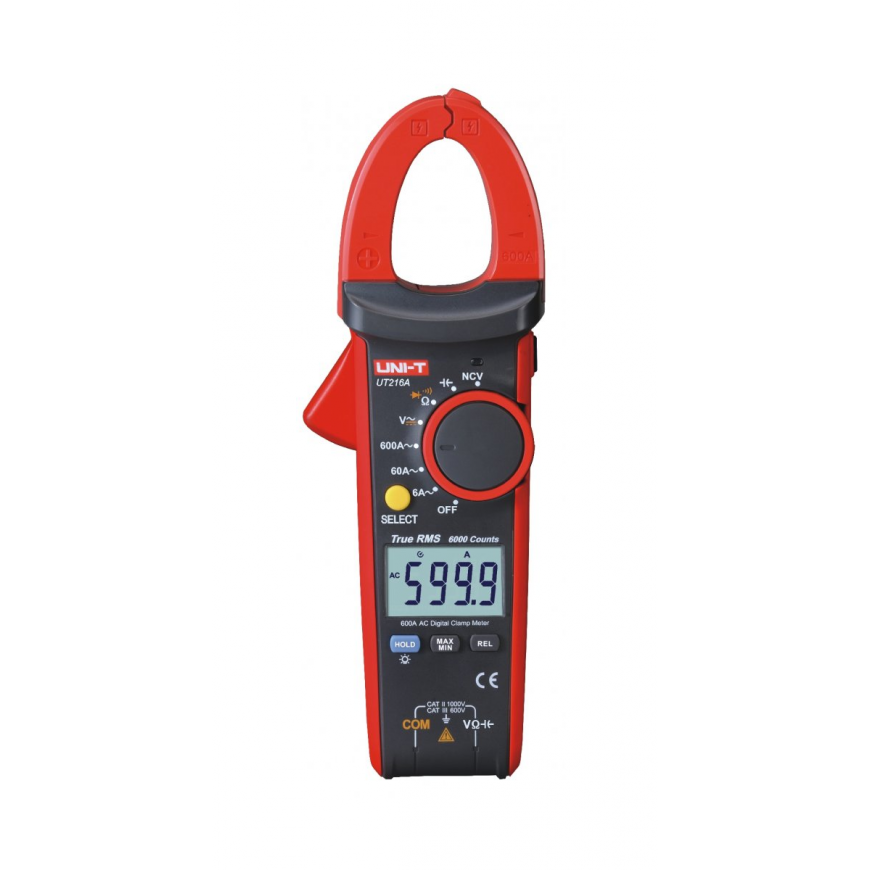

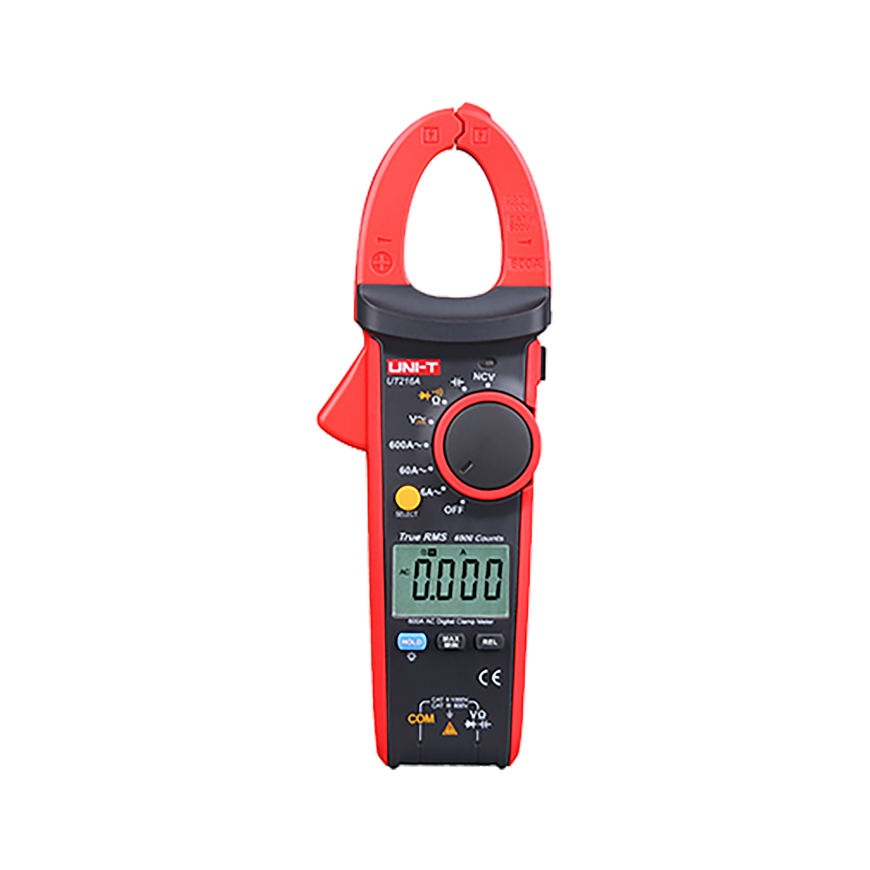

Uni-T 600 A TrueRMS Terminal Meter, Model UT216A
79.00 €
Kuumakse alates 2,93 €
1950509 MIE0187
5901890018227
Tarneaeg 6-10 t.p.
Kauba vastu huvi?
Kõik toote kohta
MEASUREMENT RANGESDC voltage: 600 mV / 6 V / 60 V / 600 V / 1000 V? (0.8% + 1)
AC voltage: 6V / 60V / 600V / 750V? (1.2% + 5)
alternating current: 6 A / 60 A / 600 A (2.5% + 5); (measuring frequency range: 50/60 Hz)
Resistance: 600 Ohm / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm? (1% + 2)
Capacitance: 99.99nF / 999.9nF / 9.999F / 99.99F / 999.9F / 9.999F / 59.99mF (4% + 5)
Diode test: about 3V
Continuity check
ADDITIONAL FUNCTIONS
Automatic change of measurement ranges
Electric Field Detection (NCV)
True RMS measurement
Freezes the last reading
Relative measurement mode
Record of MAX / MIN values
LCD screen with lighting
Lighting of the measuring area
Automatic power off: after about 15 minutes
Low battery indicator
Maximum reading: 6000
GENERAL CHARACTERISTICS
DC Input Impedance: > = 10 MOhm
Number of measurements: 3/s
Power supply: 3x 1.5 V (R03)
Jaw opening: 30 mm
Screen size: 38 x 24 mm
Dimensions: 220 x 75 x 40 mm
Weight: 231.7 g
Accessories: batteries, test leads, case
