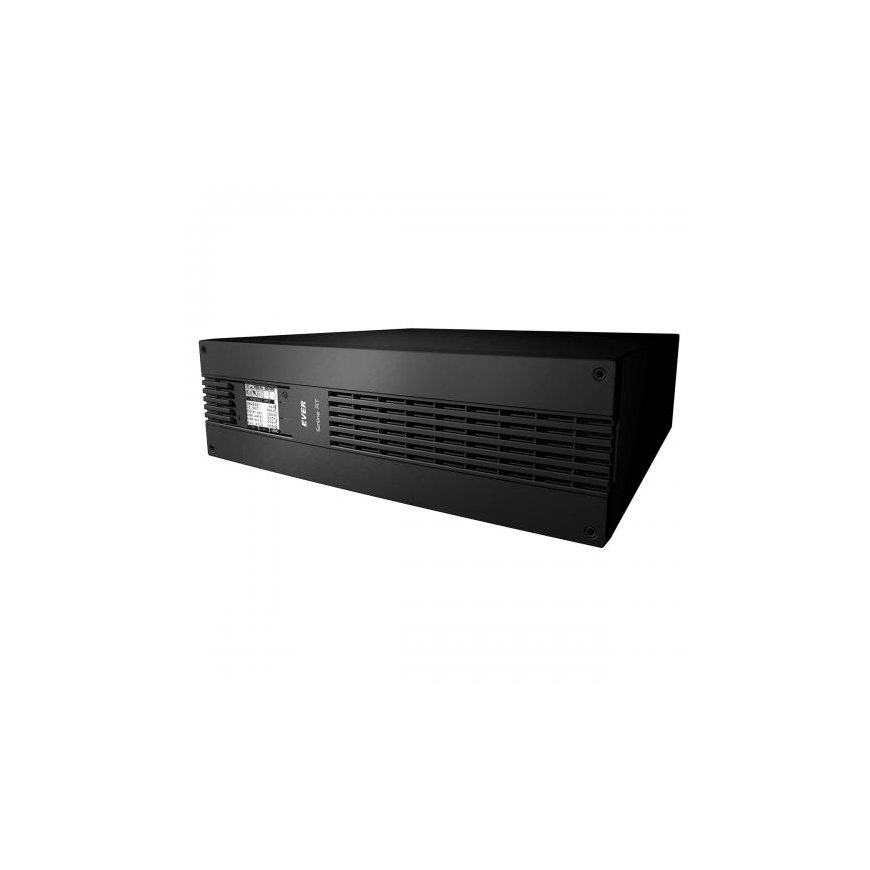

Ever SINLINE RT XL 3000 uninterruptible power supply (UPS) Line-Interactive 3 kVA 3000 W 9 AC outlet(s)
1 291,22 €
Monthly payment from 34.15 €
906286 W/SRTXRT-003K00/00
5907683603809
Shipping 3-5 b.d.
You are interested in this product?

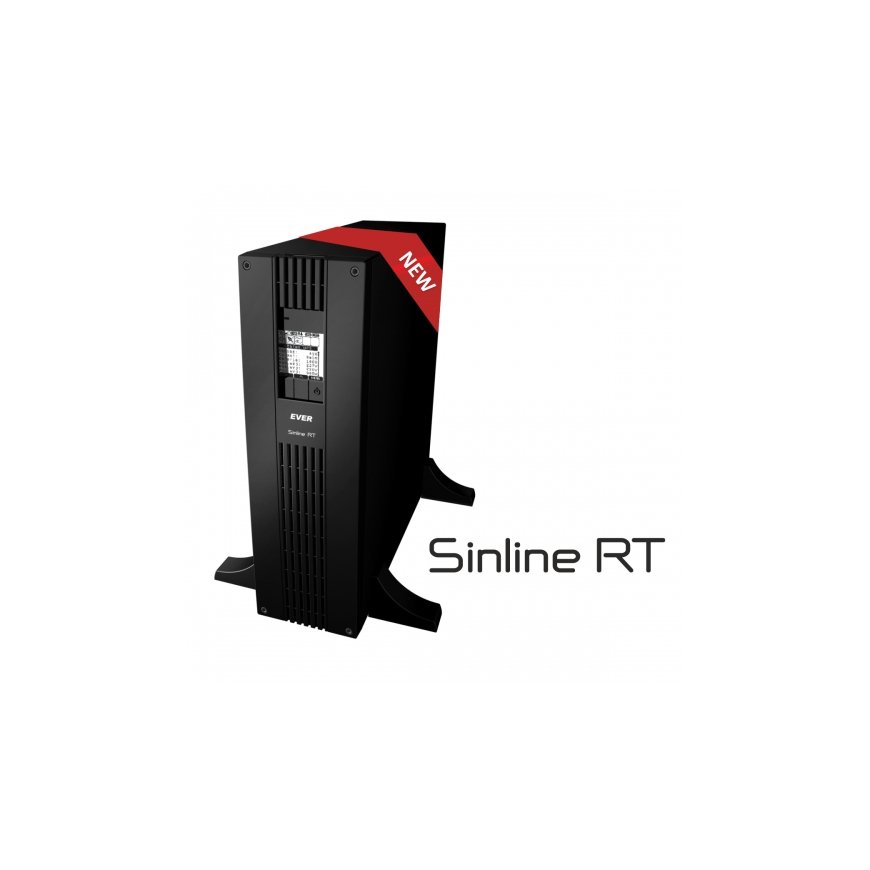

Thanks to the optional RS232/RS485 RS communication interface with MODBUS protocol and a zero voltage outputs and control inputs card, the UPS unit can be integrated with automatic systems. The universal Rack/Tower housing means that the UPS orientation can be changed quickly.
In battery operation mode, the Clear Digital Sinus (CDS) system used in this series of UPS units generates a sinusoidal waveform at output. AVR, a built-in system for regulating (increasing and decreasing) the mains voltage adjusts incorrect input voltage to a level that is acceptable to the receivers, without the use of battery power. The unit's battery charging system with thermal compensation additionally protects the built-in batteries and prolongs their life.
The units feature an extensive communication system that uses an integrated network management card (for SNMPv2 and HTTP protocols) and HID USB, a communication interface for linking the UPS with other devices without the necessity to install software. The series also has a cold start function, with which the connected device can be started from the battery, while the UPS is not connected to the mains. Optionally, the unit can feature EPO - Emergency Power Off - function.
| Product colour | Black |
| USB 2.0 ports quantity | 1 |
| Display type | LCD |
| Form factor | Rackmount/Tower |
| International Protection (IP) code | IP20 |
| Weight | 42 kg |
| Width | 440 mm |
| Depth | 630 mm |
| Height | 132 mm |
| Cables included | Input power cable |
| Cooling type | Active |
| Package width | 547 mm |
| Package depth | 765 mm |
| Package height | 247 mm |
| Package weight | 45 kg |
| Number of batteries supported | 8 |
| Manual | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Ethernet LAN (RJ-45) ports | 1 |
| LED indicators | Yes |
| Battery recharge time | 4 h |
| Quick installation guide | Yes |
| Battery voltage | 12 V |
| Battery capacity | 7 Ah |
| Power protection features | Overload; Short circuit |
| Storage relative humidity (H-H) | 20 - 95% |
| AC outlets quantity | 9 AC outlet(s) |
| Maximum current | 16 A |
| Operating altitude | 0 - 1000 m |
| Surge protection | Yes |
| Output power | 3000 W |
| Rubber feet | Yes |
| UPS topology | Line-Interactive |
| Output power capacity | 3 kVA |
| Waveform | Sine |
| Input operation voltage (min) | 178 V |
| Input operation voltage (max) | 281 V |
| Input frequency | 50 Hz |
| Output operation voltage (min) | 195 V |
| Output operation voltage (max) | 253 V |
| Emergency Power Off (EPO) | Yes |

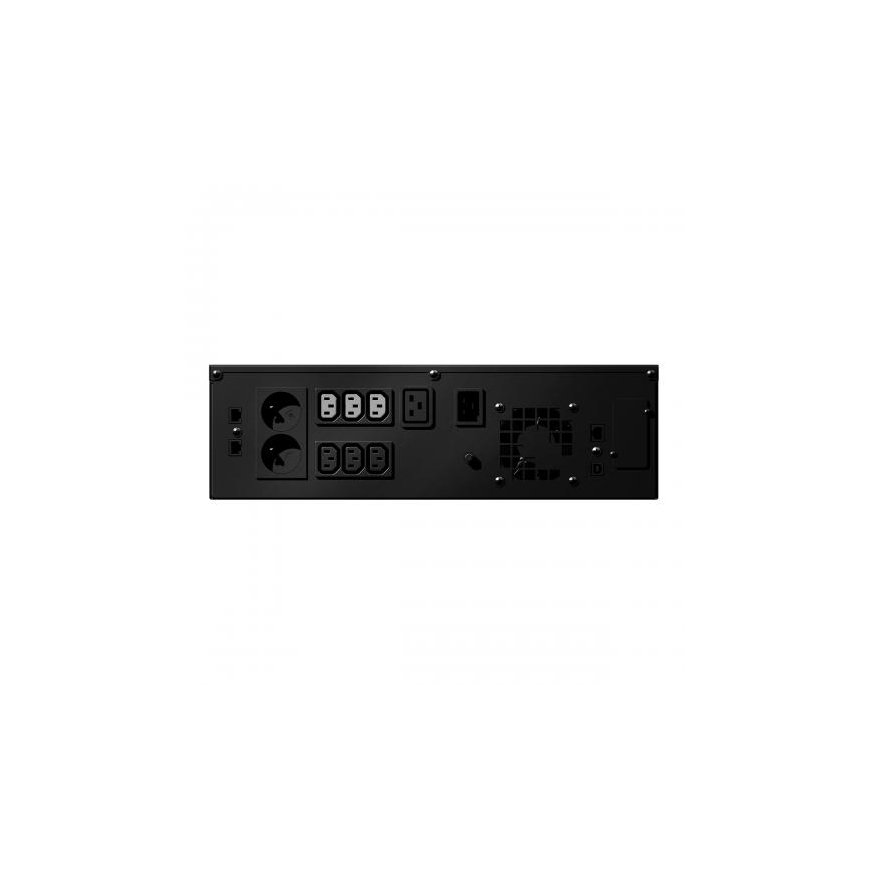

| AC outlet types | C19 coupler; C13 coupler |
| Power plug | C20 coupler |
| Typical backup time at full load | 3 min |
| Typical backup time at half load | 7 min |
| Cold start | Yes |
| Number of phases | 1 |
| Number of input phases | 1 |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
