Televes T561801 mast amplifier, 3-in
628925 T561821
8424450161012, 8424450201732
Goods will arrive at the Tallinn warehouse on 09.07.26

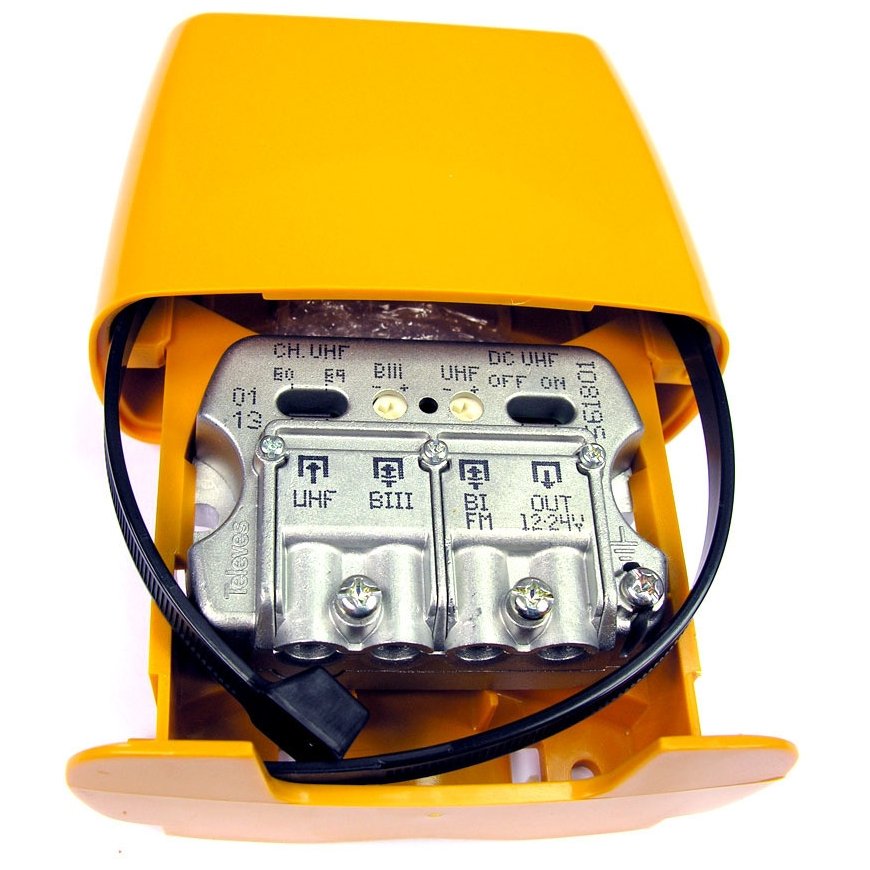

The Televes T561801 is a whole new generation of mast amplifier. We call our new Amplifier Breakthrough Technology called USOS (User Selectable Output Signal). Set the desired output level and the AGC feature of the amplifier will always keep it set.
TV picture interference is almost always caused by a weak signal. If the signal from the TV antenna is less than 45 dB, a mast or antenna amplifier is required. In antenna reception, the signal usually needs to be amplified to provide a sufficiently strong connection (45-74 dB) for all antenna sockets. An amplifier is needed especially when receiving a picture from a remote TV station.
features include:
- DC bypass can be activated with ON / OFF switch
- Very low noise
- User-friendly design - very small in size and easy to handle
- EasyF connectors
- Weatherproof housing made of ABS plastic

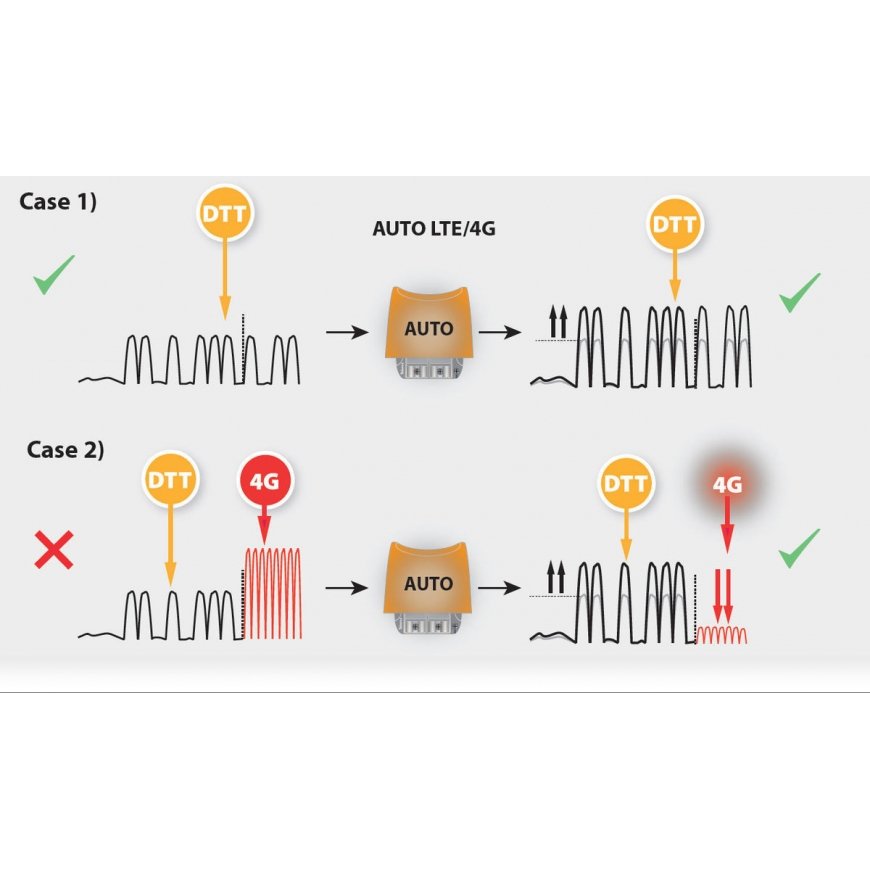

- LTE700 filter
Does not include AC adapter. Must be ordered separately, eg .5795 or T550401.

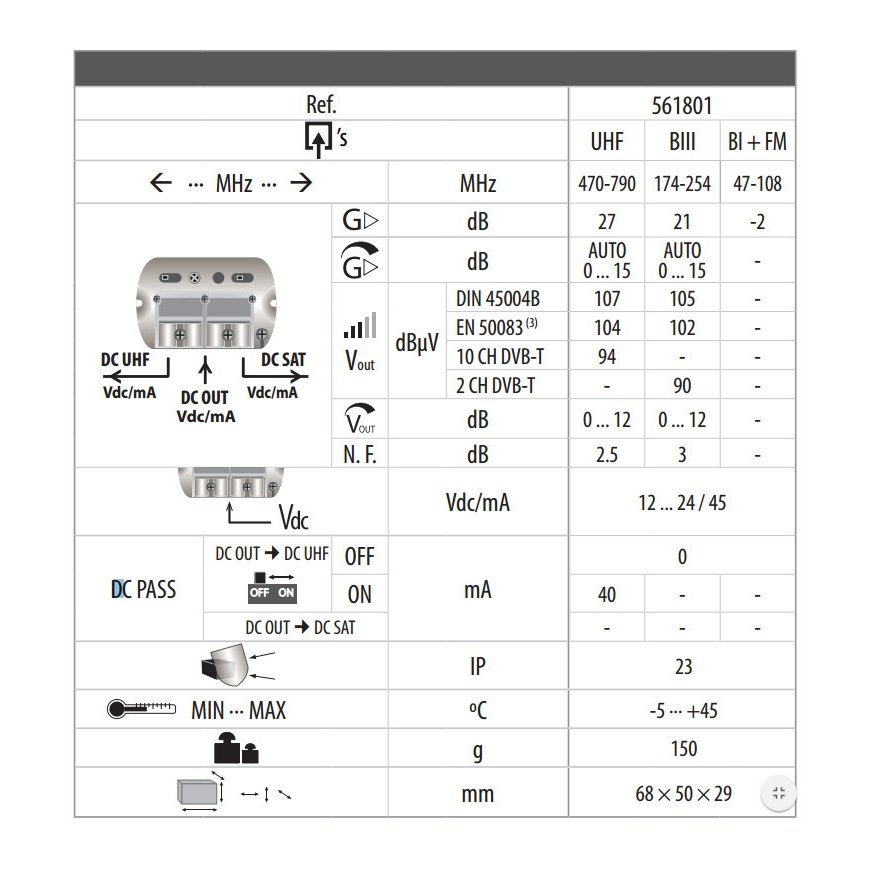

Technical information:
- VHF gain 21 dB, 174230MHz, NF 3.0 dB, AGC
- UHF Gain 29 dB, 470790 MHz, NF 1.0 dB, AGC
- ULA passive
- 1224V, 40mA.
