be quiet! Shadow Wings 2 | 140mm PWM
539959 BL087
4260052186893
Shipping 4-6 b.d.
WHISPER-QUIET OPERATION
The Shadow Wings 2 140mm PWM fan blades have been optimized to ensure maximum airflow, resulting in a whisper-quiet operation yet solid cooling. They operate at only 14.9 dB(A) even at its maximum speed of 900 rpm. The perfect choice for all who appreciate maximum silence for their PC case.

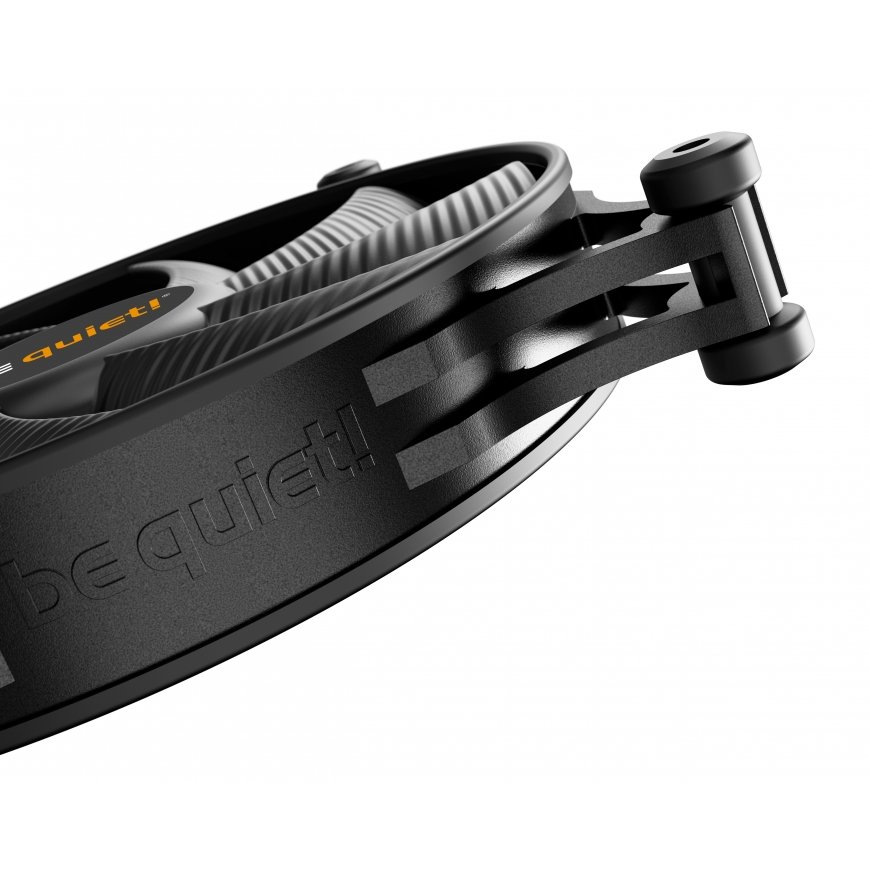

ANTI-VIBRATION CONCEPT
Removable anti-vibration mountings on all four edges of the fan reduce vibrations transmitted to the PC case. In addition, the fan is equipped with a rubberized frame that reinforces the anti-vibration concept and ensures vibrations are reduced to an absolute minimum.
RIFLE BEARING TECHNOLOGY
The Shadow Wings 2 140mm PWM is the hallmark of outstanding reliability. This is achieved by its high-quality rifle bearing technology, which assures a very long lifespan of up to 80,000 hours.

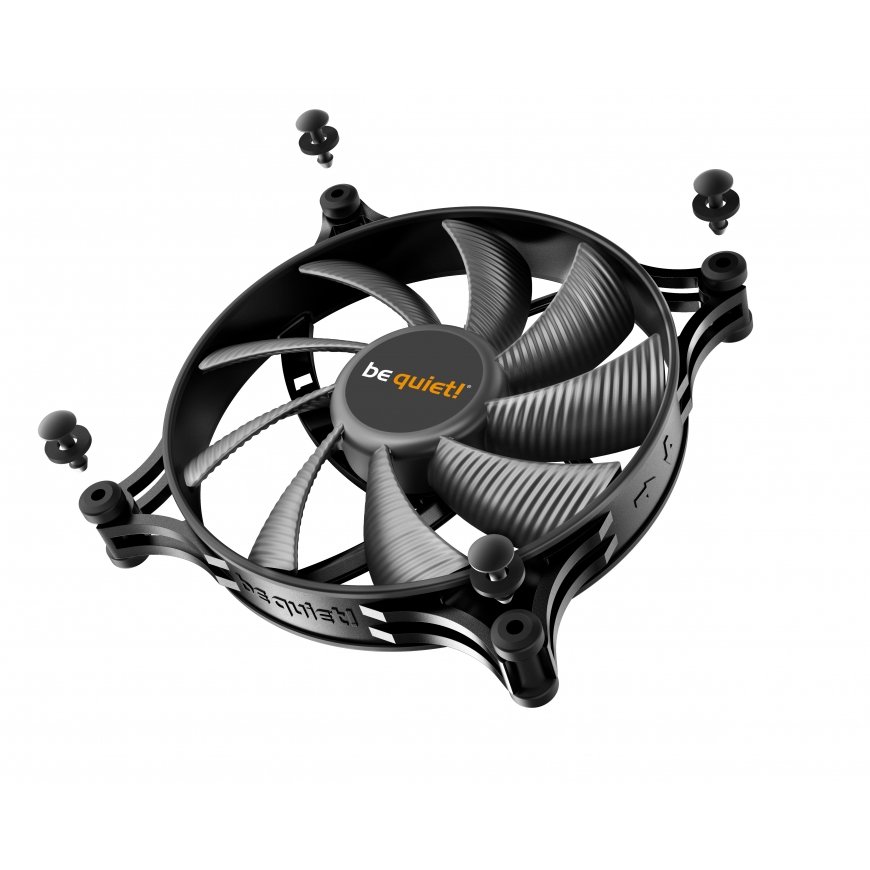

PUSH-PIN MOUNTING
With the Shadow Wings 2 anti-vibration mounting system the fan is simple to install. The push-pins ensure a very fast and secure installation without needing screws.
VARIABLE FAN SPEED FUNCTION
Pulse Width Modulation (PWM) allows compatible 4-pin controllers to vary the speed intelligently and thus minimize the noise level of the fan. With PWM your system can ramp up the cooling when it’s needed, or operate at maximum quietness when it’s not.
Performance | |
| Supported processor sockets | Not supported |
| Type | Fan |
| Fan diameter | 14 cm |
| Airflow | 85 m³/h |
| Maximum airflow | 49.8 cfm |
| Maximum air pressure | 0.58 mmH2O |
| Compatible processor series | Not supported |
| Noise level (high speed) | 14.9 dB |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (max) | 900 RPM |
| Bearing type | Rifle bearing |
| Suitable location | Computer case |
Design | |
| Certification | CE, TÜV, UL |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
Power | |
| Rated current | 0.3 A |
| Power supply | 3.6 W |
| Voltage | 6 - 12 V |
| Safety current | 0.3 Ah |
| Rated voltage | 12 V |
Weight & dimensions | |
| Weight | 175 g |
| Package weight | 202 g |
| Cable length | 0.5 m |
| Package height | 28 mm |
| Package width | 140 mm |
| Package depth | 175 mm |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Other features | |
| Country of origin | China |
Logistics data | |
| Products per master (outer) case | 72 pc(s) |
| Master (outer) case gross weight | 15.6 kg |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 460 mm |
| Master (outer) case height | 340 mm |
| Harmonized System (HS) code | 84733080 |
