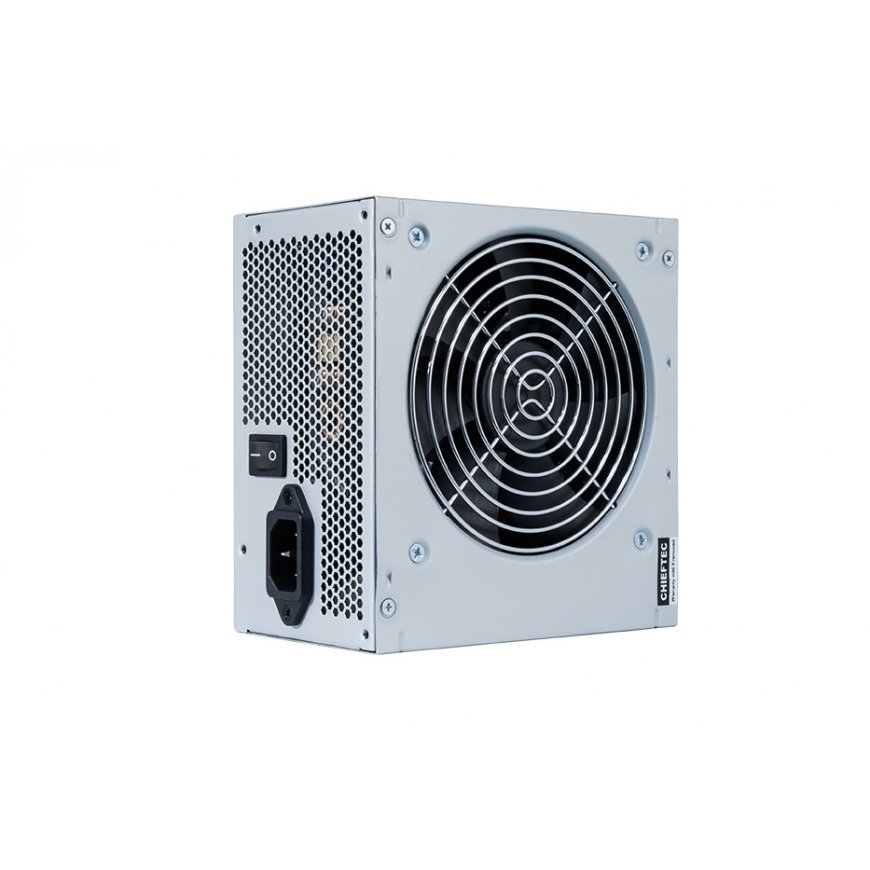

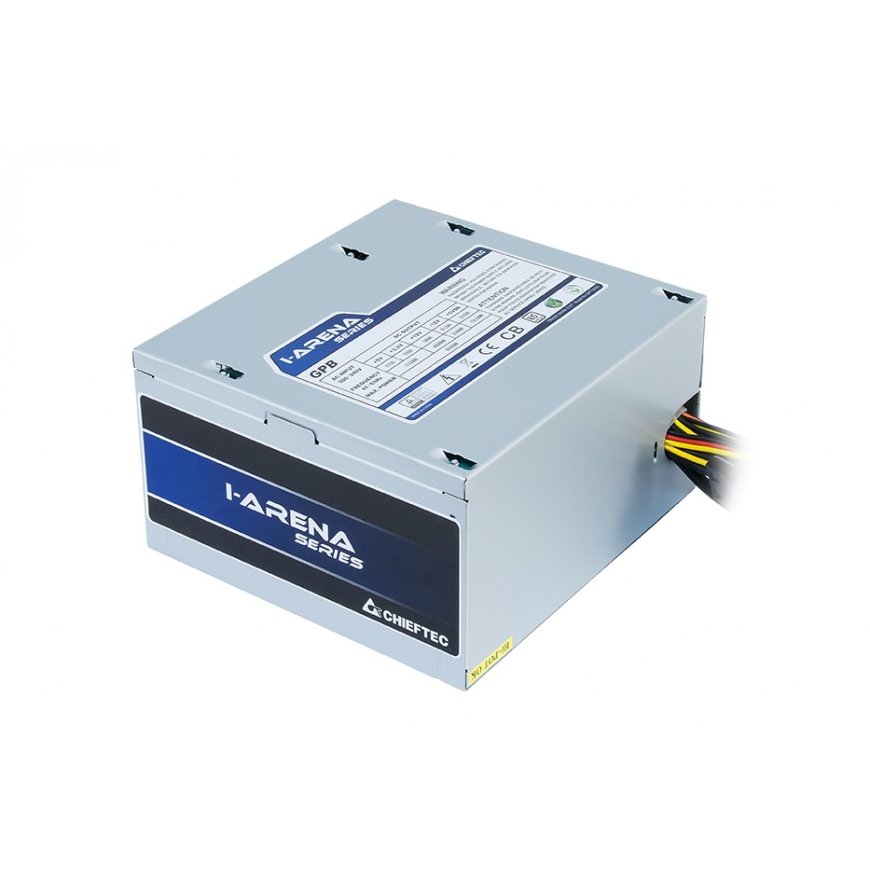

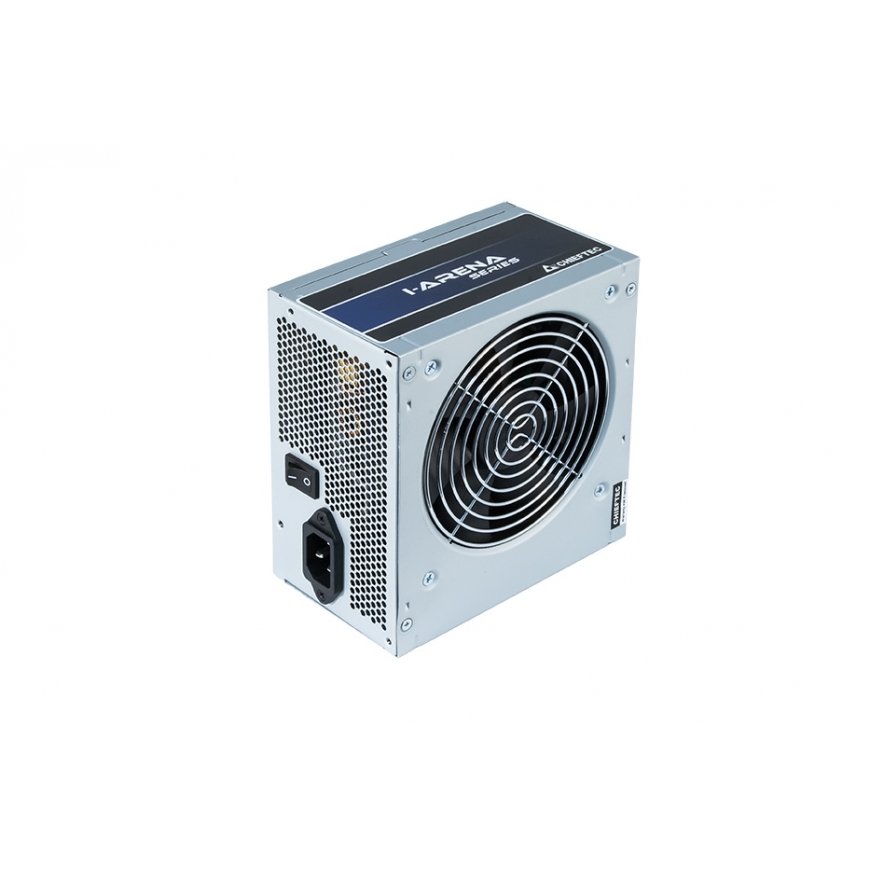

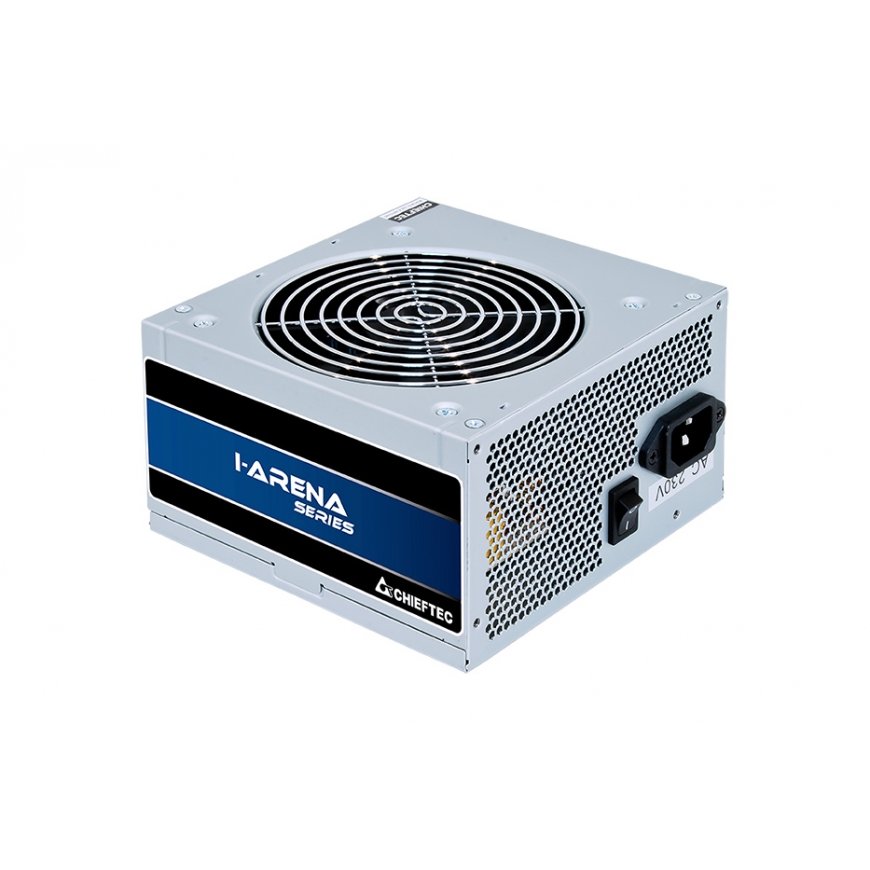

Chieftec GPB-500S power supply unit 500 W 20+4 pin ATX PS/2 Silver
37,24 €
Monthly payment from 1.86 €
488289 GPB-500S
4710713233645, 5704174261032
Shipping 2-3 b.d.
You are interested in this product?
Power | |
| Efficiency | 85% |
| Input current | 4 A |
| Power protection features | Overload, Over voltage, Short circuit, Under voltage |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+5V) | 17 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Max output current (+12V1) | 38 A |
| Total power | 500 W |
Performance | |
| ATX version | 2.3 |
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
Design | |
| Product colour | Silver |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
Weight & dimensions | |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 87 mm |
Packaging data | |
| Manual | Yes |
| Package type | Box |
Other features | |
| Warranty card | Yes |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Certificates | |
| Compliance certificates | RoHS |
