ANCEL MT310 Motorcycle Diagnostic Scanner
4532616 MT310
6978281190533
Shipping 3-5 b.d.

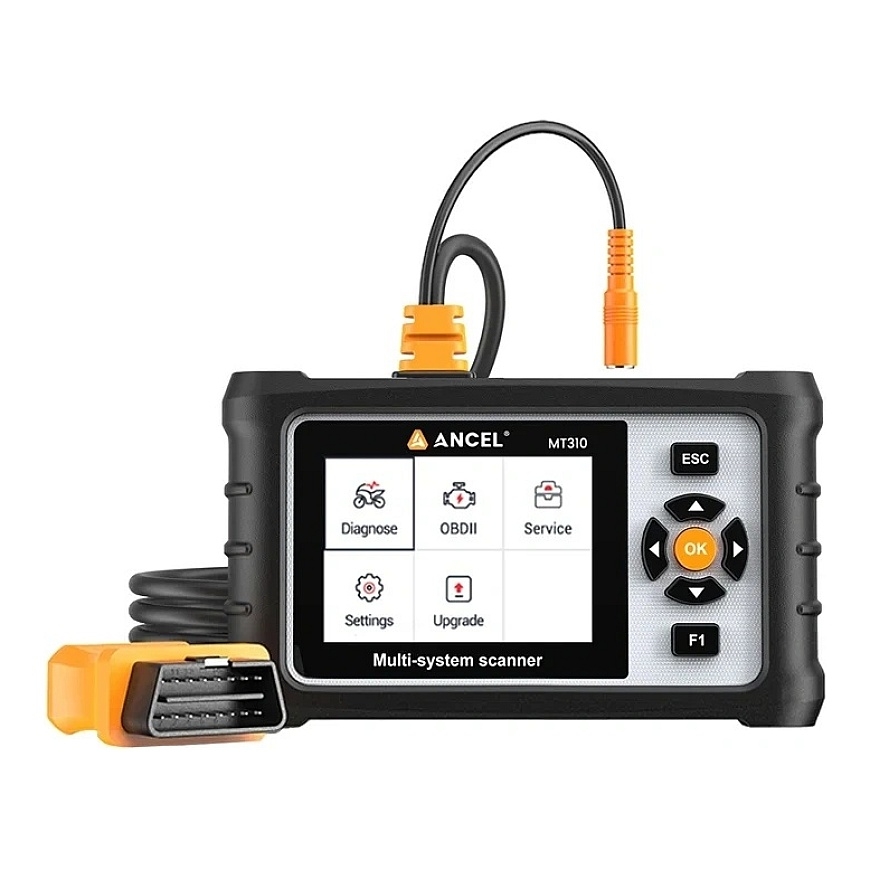

ANCEL MT310 Motorcycle Diagnostic Scanner
The ANCEL MT310 is a motorcycle diagnostic scanner equipped with a 3.5-inch color TFT display. It enables diagnostics for BMW, Harley, Honda, Yamaha, Suzuki, and Kawasaki, offering diagnostic and service functions for various vehicle systems. The device also supports the OBDII standard as well as the CAN, J1850 PWM, J1850 VPW, ISO9141, and KWP2000. As a result, it is compatible with many vehicles from the U.S., Europe, and Asia manufactured since 2000.
Automatic Vehicle Recognition and Multi-System Diagnostics
The device enables automatic vehicle search using the Auto VIN feature, allowing you to quickly identify the motorcycle model and begin diagnostics. If automatic identification fails, the user can manually select the vehicle from the menu. Depending on the motorcycle model, the scanner can diagnose systems such as ABS, DME, SME, GMS, and ESA2, among others.
Reading and clearing error codes, and viewing operating parameters
The ANCEL MT310 supports basic diagnostic functions, such as reading and clearing error codes and viewing data streams. It also allows you to check software version information and monitor vehicle operating parameters. The diagnostic menu is designed to provide quick access to the motorcycle’s most important functions and systems.
OBDII functions for vehicles from the U.S., Europe, and Asia
The scanner is compatible with most OBDII-equipped motorcycles manufactured since 2000. When the OBDII function is activated, the device automatically detects the communication protocol and displays the diagnostic functions available for that vehicle. The MT310 supports, among other things, reading and clearing codes, I/M readiness, data stream, O2 sensor test, on-board monitoring, evaporative system test, and vehicle and software information.
Service Functions and Updates
The “Service” menu provides quick access to special functions, such as ETC reset and bleeding. The availability of individual options depends on the vehicle’s configuration and the specific motorcycle model. The ANCEL MT310 also supports software updates in two ways—via a USB connection to a computer or wirelessly via Wi-Fi.
Included in the package
- Main unit of the motorcycle diagnostic device
- USB cable
- User manual
- Carrying case for the device and accessories
| Manufacturer | ANCEL |
|---|---|
| Model | MT310 |
| Device type | Motorcycle diagnostic scanner |
| Display | 3.5" color TFT display |
| Power supply voltage | 8–18 V DC |
| Operating temperature | 0°C to 60°C |
| Storage temperature | -20°C to 70°C |
| Supported motorcycle brands | BMW, Harley, Honda, Yamaha, Suzuki, Kawasaki, and others (with OBDII) |
| Supported OBDII Protocols | CAN, J1850 PWM, J1850 VPW, ISO9141, KWP2000 |
| Updates | Via USB / Wi-Fi |
| Languages | German, English, Spanish, French, Portuguese |
| Number of buttons | 7 |
