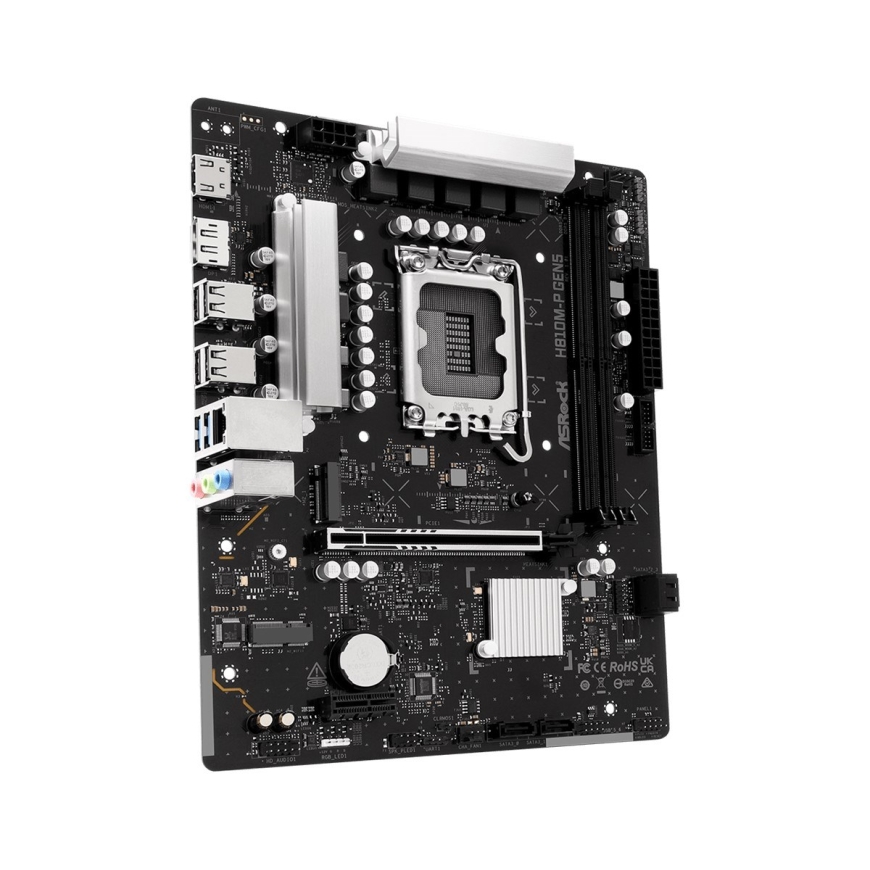

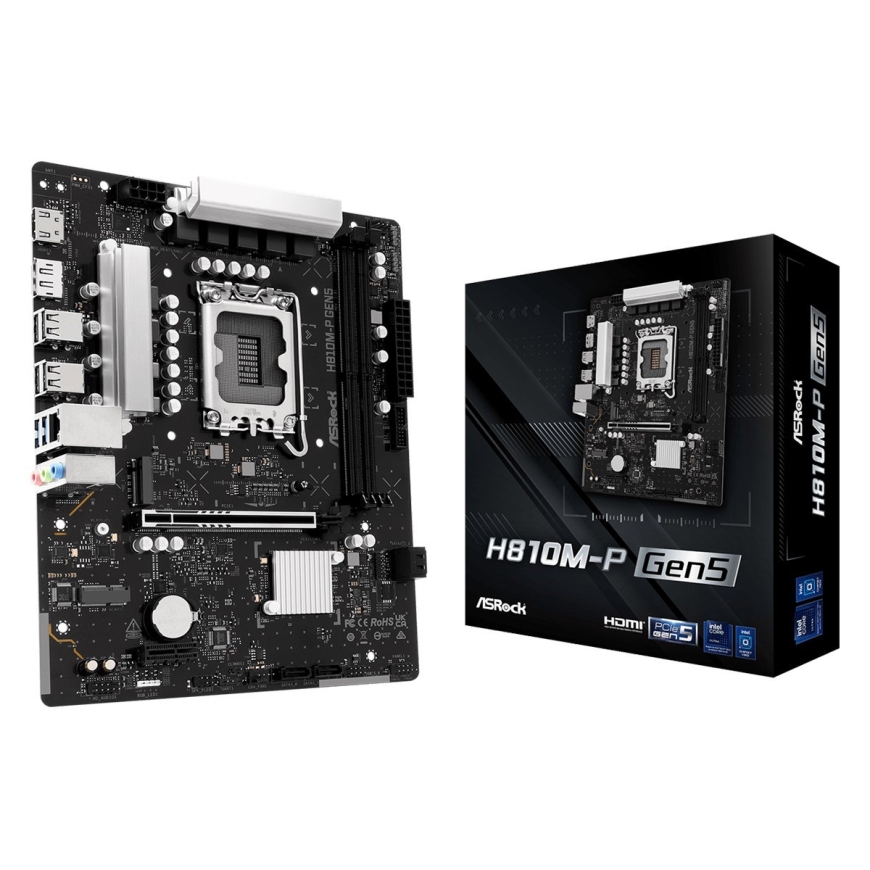

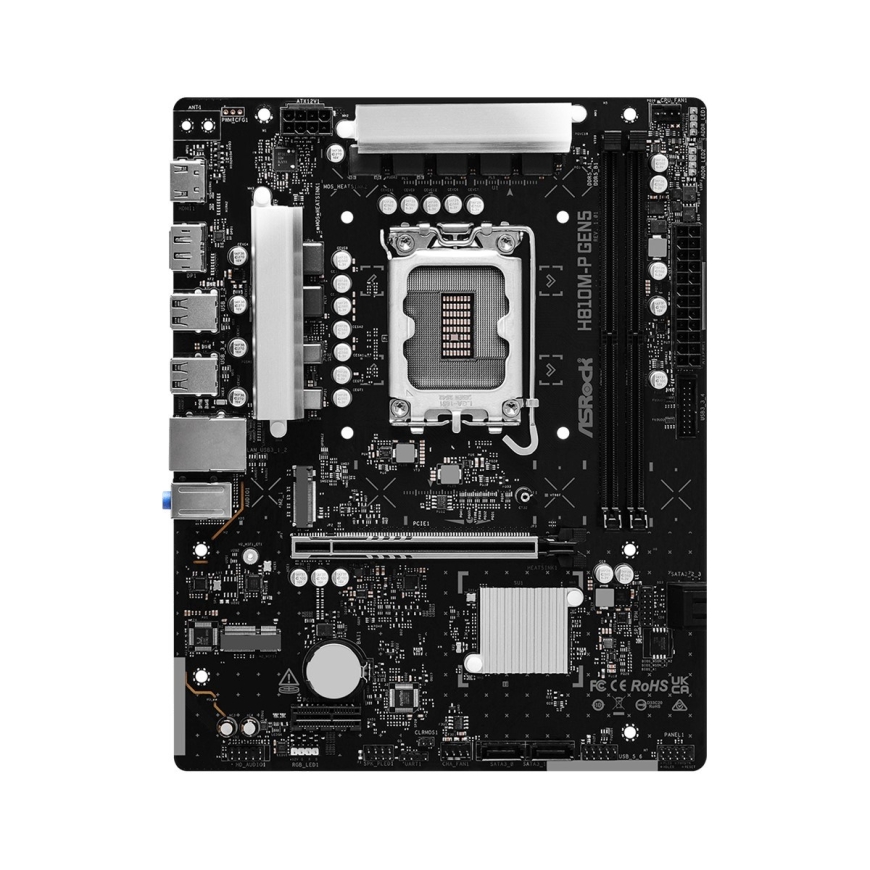

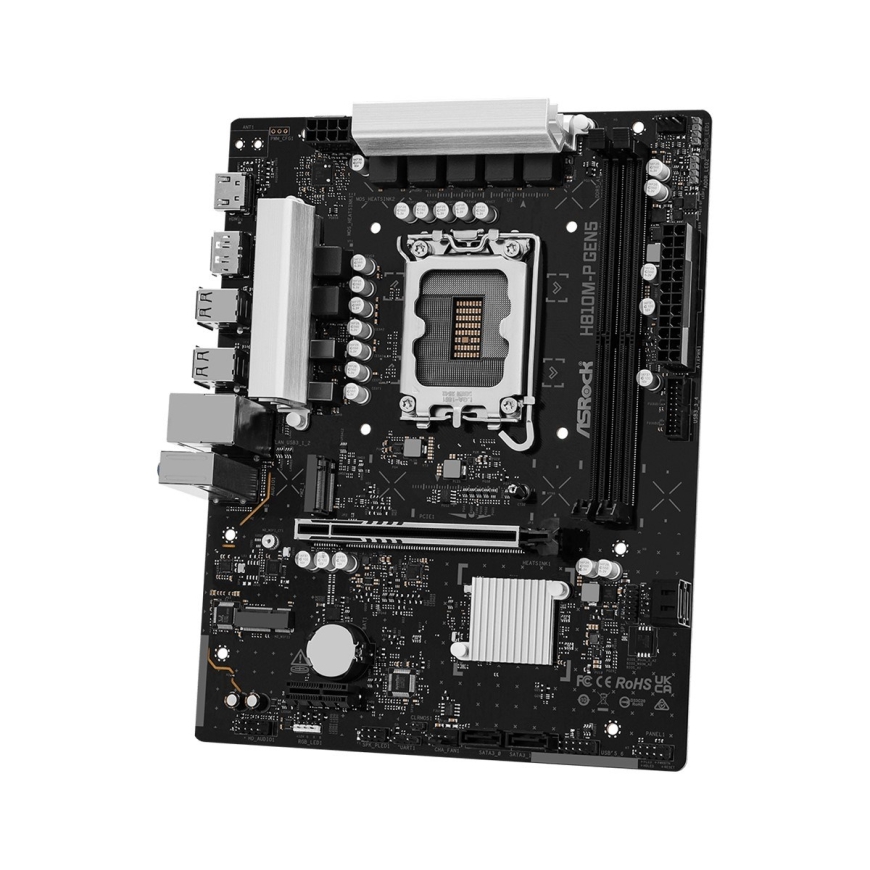

Asrock H810M-P GEN5 motherboard
Asrock H810M-P GEN5 motherboard
Asrock H810M-P GEN5 motherboard
Asrock H810M-P GEN5 motherboard
Asrock H810M-P GEN5 motherboard

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Asrock H810M-P GEN5 motherboard

91,80 €
Monthly payment from 3.26
4523690

90-MXBUE0-A0UAYZ

4711581494206

Shipping 2-3 b.d.

Quantity
You are interested in this product?
(Read terms of service)
Description

Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience.

Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboards built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow the motherboard to be connected to compatible LED devices such as strips, CPU fans, coolers, chassis, and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections via the M.2 (Key E) slot.

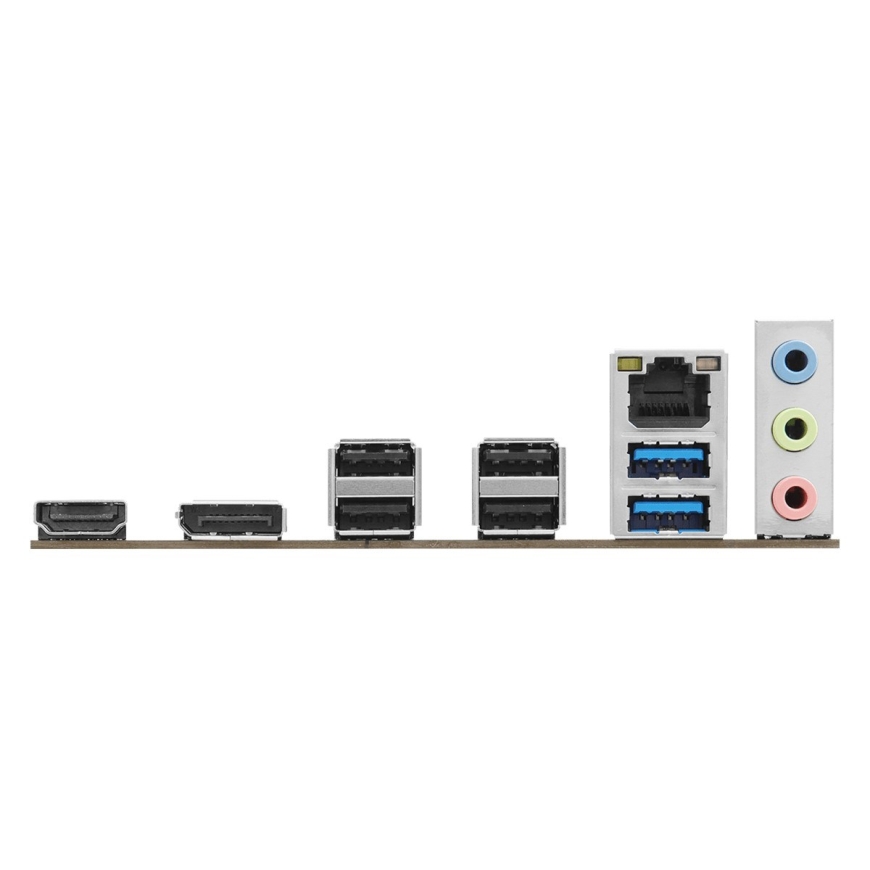

Dual Graphics Outputs
Complete with two types of the most used connectors! Packed with an HDMI + DisplayPort combo, you have more graphics output options now.

SummaryAsrock H810M-P Gen5. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, M.2, Supported storage drive types: HDD & SSD. LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
URLhttps://www.asrock.com/MB/Intel/H810M-P%20Gen5/index.asp#Overview
Category CodeMBI
CnCode84733020
Unit Box Height0.06
Unit Box Length0.265
Unit Box Width0.26
Audio chipRealtek ALC897
Audio output channels7.1 channels
Component forPC
Motherboard chipsetIntel H810
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Windows operating systems supportedWindows 11 x64
Compatible processor seriesIntel Core Ultra (Series 2)
Maximum number of SMP processors1
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
ECC compatibilityNon-ECC
Maximum internal memory128 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Supported storage drive interfacesSATA III,M.2
Supported storage drive typesHDD & SSD
HDCPYes
HDCP version2.3
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Number of chassis fan connectors1
Number of CPU fan connectors1
Number of EPS power connectors (8-pin)1
Number of RGB LED pin headers2
Number of SATA III connectors4
RGB LED pin headerYes
TPM connectorYes
USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
DisplayPort version1.4
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Line-inYes
Microphone inYes
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LANYes
LAN controllerRealtek RTL8111H
Wi-FiNo
Number of M.2 (M) slots1
PCI Express x1 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
BIOS memory size256 Mbit
BIOS typeEFI AMI
Depth193 mm
Width244 mm
Cables includedSATA
Screws includedYes
Product Net Weight0.9 kg
Shipping Box Depth54.5 cm
Shipping Box Height28.5 cm
Shipping Box Weight9.89999961853027 kg
Shipping Box Width31.5 cm
Unit Calculated Volume0.004893 cubm
Unit Calculated Weight0.99 kg
Units per Shipping Box10
