Teltonika TRB501 Gateway | Industrial 5G network gateway | Ethernet 2.5 Gbps, Release 16, compact IP30 enclosure
4457803 TRB5011A0000
4779051849215
Shipping 4-5 b.d.

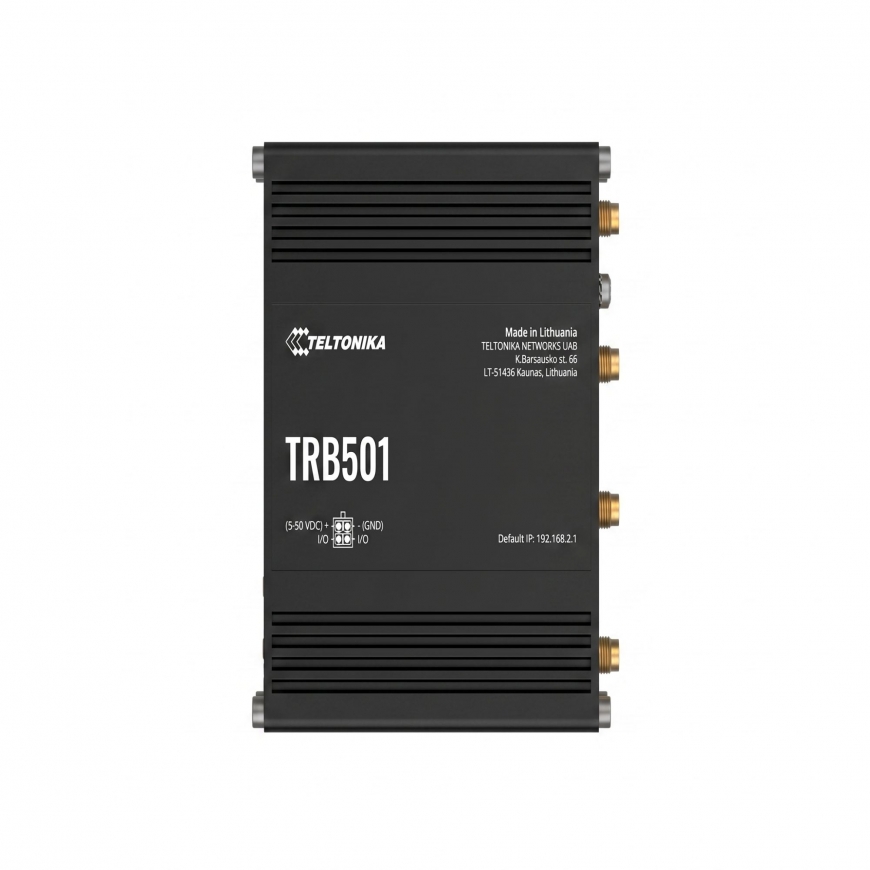

Teltonika TRB501 Gateway – A New Era of Industrial 5G Connectivity
Teltonika TRB501 is an advanced industrial network gateway that opens the door to next-generation 5G technology. The device has been designed with the most demanding environments in mind, offering lightning-fast data transmission while maintaining minimal latency. Thanks to support for the 3GPP Release 16 standard and 5G band aggregation, the gateway ensures optimal use of the radio spectrum. It is an ideal solution for modern automation, security systems and advanced IIoT installations, where connection reliability is a priority.
Ultra-fast 2.5 Gbps Ethernet port and uncompromising performance
A key design element of the TRB501 gateway is its Ethernet interface with throughput of up to 2.5 Gbps. Such high wired speed allows the full potential of the 5G network to be utilised, eliminating so-called “bottlenecks” in data transmission. Despite its powerful performance, the device retains an extremely compact size (100 x 30 x 93.4 mm), which allows it to be installed in places with limited space, such as control cabinets or ATMs, without having to give up top network performance.
Ready for IIoT protocols: Modbus, DNP3 and DLMS
Teltonika TRB501 is a device fully prepared for operation in industrial environments. The gateway natively supports key communication protocols such as Modbus (TCP/RTU), DNP3 and DLMS. As a result, it becomes an integral part of SCADA supervision systems, smart grids and advanced telemetry systems. The ability to easily integrate with existing industrial infrastructure makes the TRB501 a versatile tool for the digital transformation of enterprises.
Advanced security and stable RutOS system
Data security in the TRB501 gateway is guaranteed by the proprietary RutOS operating system (based on Linux OpenWrt). The user gains access to a wide range of tools, including numerous VPN standards (OpenVPN, IPsec, WireGuard, ZeroTier), an advanced firewall and protection against DDOS attacks and port scanning. In addition, the gateway offers network separation through VLAN and control of mobile data limits, allowing full management of security and transmission costs within the company infrastructure.
Durability and professional management with Teltonika RMS
The device is housed in a robust anodised aluminium enclosure with an IP30 protection rating, allowing trouble-free operation in extreme temperatures from -40°C to 75°C. The TRB501 is fully compatible with the Teltonika RMS (Remote Management System) remote management system. It enables remote access to the device, mass software updates and full diagnostics without the need to be physically present at the installation site, significantly reducing network maintenance costs.
Technical data
| Parameter | Value |
| Mobile module | 5G Sub-6Ghz SA/NSA (3.4 Gbps DL), 4G LTE Cat 19, 3G |
| 3GPP standard | Release 16 |
| Ethernet | 1 x RJ45 port, 10/100/1000/2500 Mbps |
| Processor | Qualcomm, 1.5 GHz, ARM Cortex-A7 |
| Memory | 512 MB RAM, 512 MB Flash |
| Power supply | 9 - 30 VDC (4-pin connector or passive PoE) |
| I/O interfaces | 2 x configurable digital inputs/outputs |
| Enclosure | Anodised aluminium, IP30 class |
| Operating temperature | -40 °C to 75 °C |
Key advantages
- Next-generation 5G technology: Band aggregation and low latency ensure smooth operation even in the most demanding automation processes.
- 2.5 Gbps port: Full 5G throughput without losses on the wired connection.
- Industrial standards: Native support for Modbus TCP, DNP3 and DLMS protocols.
- Enterprise-grade security: Extensive support for VPN, Firewall and advanced content filtering.
- Remote management: Full integration with the Teltonika RMS platform for remote diagnostics and configuration.
The product is intended for
- SCADA and Smart Grid operators: Looking for a reliable connection for monitoring critical infrastructure.
- IIoT solution providers: Needing a compact yet extremely powerful data transmission device.
- The banking and retail sector: Requiring a secure 5G connection for ATMs and modern POS systems.
