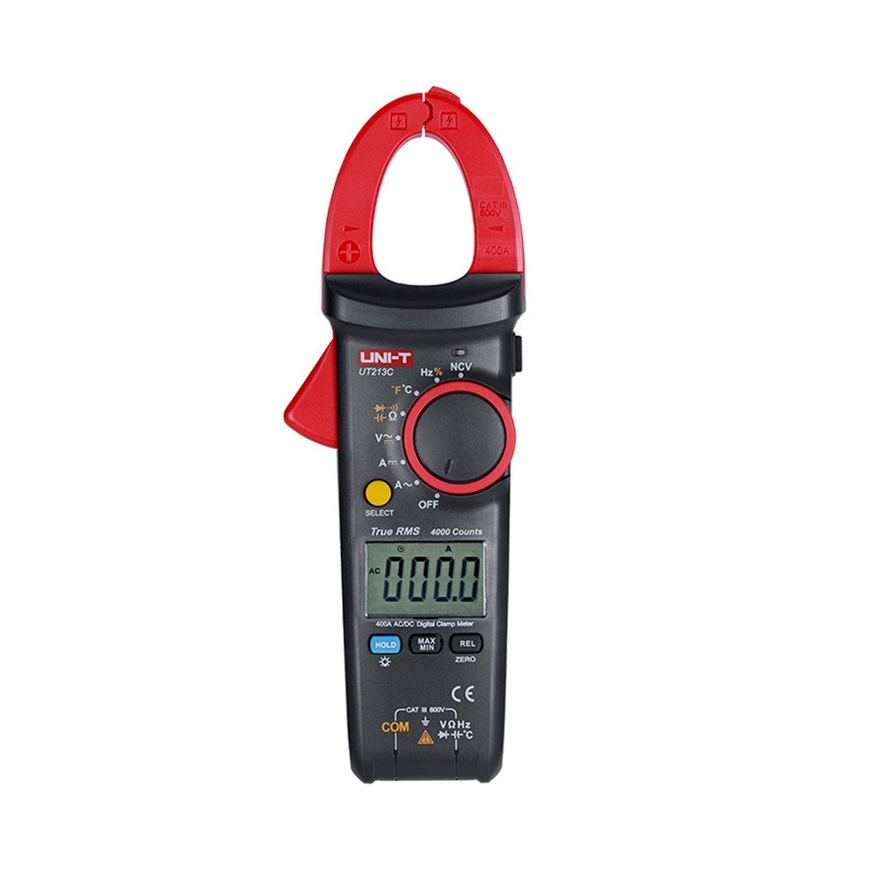

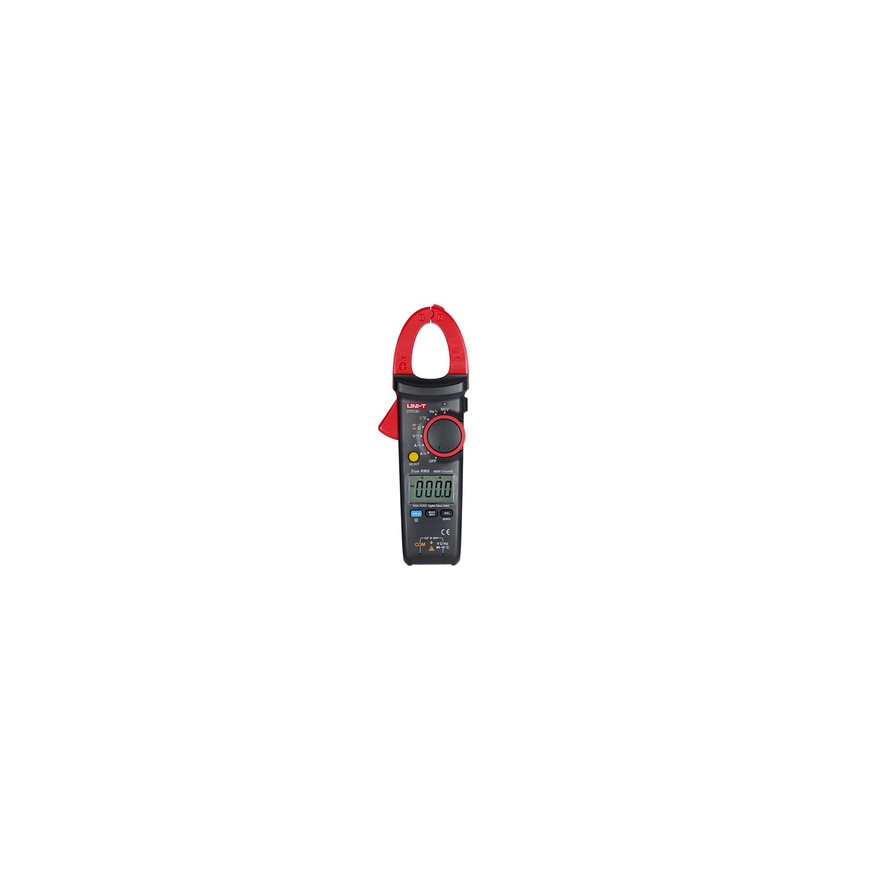

Uni-T 400A 4th Generation Digital Clamp Meter UT213C
4408712 UT213C
6935750521335
Shipping 3-5 b.d.
Uni-T UT213C 4th Generation 400A Digital Clamp Meter
The Uni-T UT213C is the most feature-rich model in this series, designed for more versatile measurements in everyday electrical and maintenance work. The device complies with the CAT III 600V safety standard and is designed for electricians and HVAC/R technicians who require greater measurement flexibility. Thanks to its flashlight, LCD backlight, and compact housing, the model also performs well when working in darker areas and in installations with limited access.
AC and DC measurement in a single device
The UT213C model allows for the measurement of AC current up to 400A and DC current up to 400A, as well as AC/DC voltage up to 600V, resistance up to 40MΩ, capacitance up to 40mF, frequency from 10Hz to 1MHz, and temperature from -40°C to 1000°C and from -40°F to 1832°F. A maximum reading of 4000, a 30 mm jaw opening, and True RMS enhance the convenience and accuracy of daily measurements. This model is designed for users who need a wider range of applications in a single clamp meter.
Advanced features for more demanding tasks
The device is equipped with a diode test, NCV function, Data Hold, Relative mode, MAX/MIN, LCD backlight, flashlight, auto-off, continuity buzzer, and input protection. Weighing 231.7 g, the model remains portable despite its wide range of measurement capabilities.
Included in the set
- Clamp meter
- Batteries x3
- Test leads
- Temperature probe
- Carrying case
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT213C |
| Type | True RMS clamp meter |
| AC current | 400A ±(2.5%+5) |
| DC current | 400A ±(2%+3) |
| AC voltage | 600V ±(1.2%+5) |
| DC voltage | 600V ±(0.8%+3) |
| Resistance | 40MΩ ±(1%+2) |
| Capacitance | 40mF ±(4%+5) |
| Frequency | 10Hz ~ 1MHz ±(0.1%+4) |
| Temperature | -40°C ~ 1000°C ±(1%+3) |
| Maximum reading | 4000 |
| Functions | True RMS, NCV, diode test, continuity test, Data Hold, Relative mode, Max/Min, LCD backlight, flashlight, automatic range switching, automatic shut-off |
| Jaw opening | 30 mm |
| Power supply | 3x 1.5V battery (R03) |
| Dimensions | 220 x 75 x 40 mm |
| Weight | 231.7 g |
| Safety | CAT III 600V |
| Certifications | CE, UKCA, cETLus |
