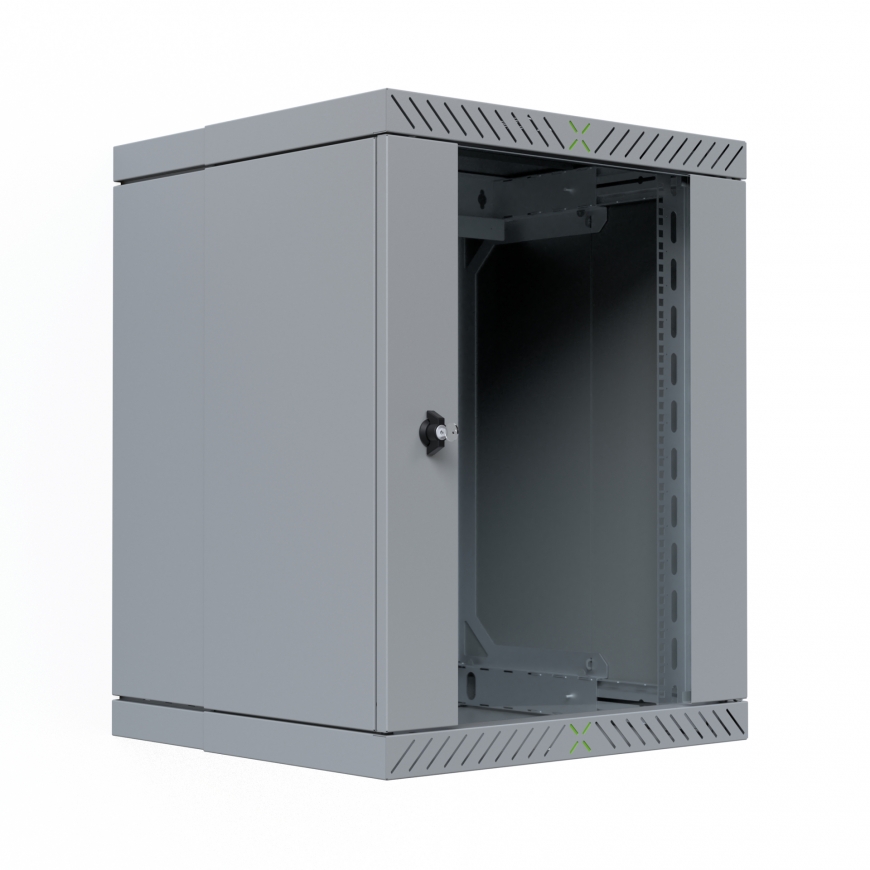

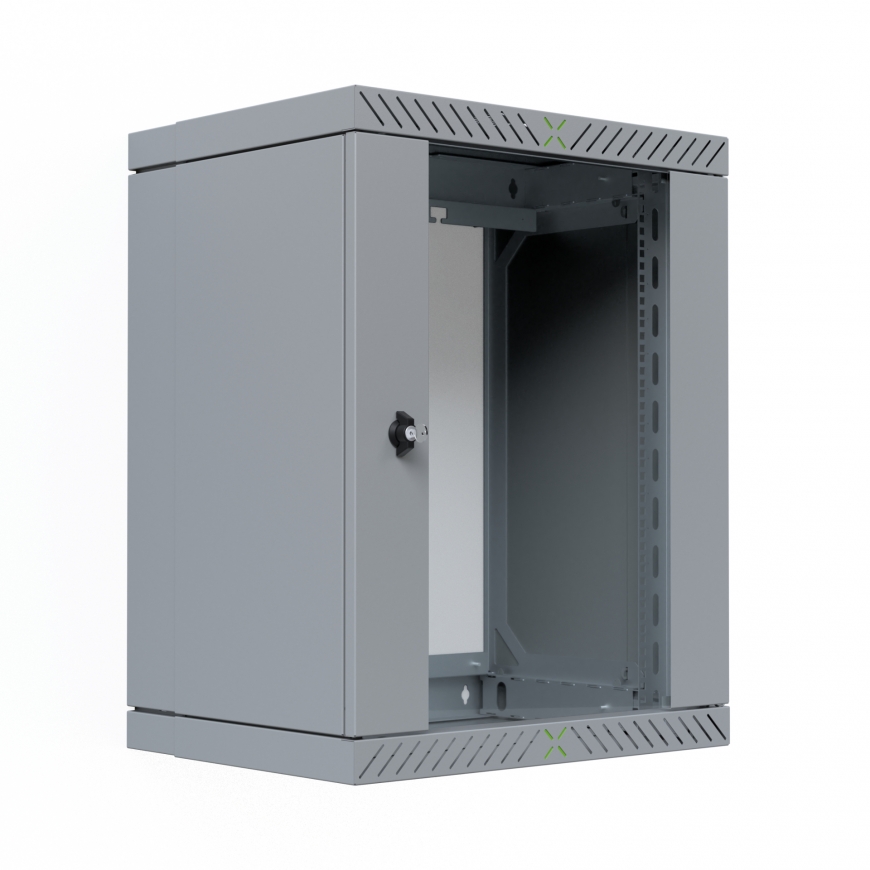

EFB Elektronik WGX-1506GR.G1 rack cabinet 15U Wall mounted rack Grey
619,00 €
Monthly payment from 16.84 €
4264474 WGX-1506GR.G1
4049759323028
2026-07-28
You are interested in this product?
Housing continuously depth adjustable from 400 .. 600 mm
Secured side walls, can only be removed after opening front door
Inside front-sided 2 x 19“ profile, additionally depth-adjustable by 50 mm

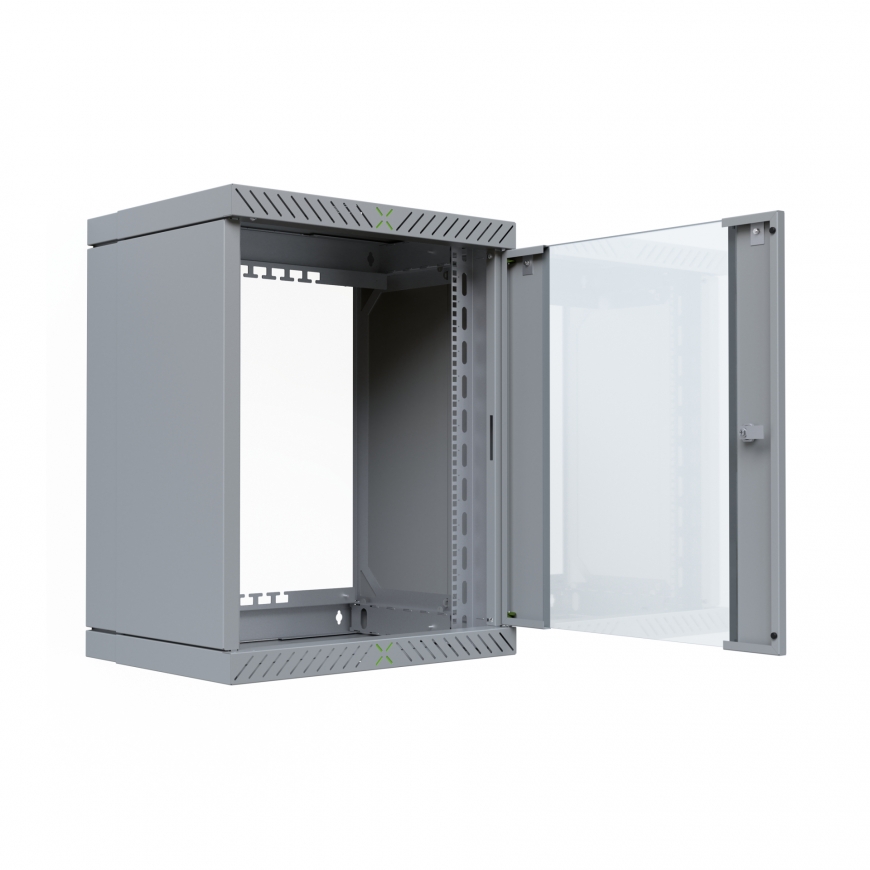

Front door with window of certified safety-glass (4 mm) and latch locking
Door stop changeable due to stable, spring-loaded metal hinges
Door angle adjustable due to adjustable hinges
Door opening angle 120°
Roof and bottom with pre-punched openings for cable entry (190 x 90 mm)
Rear sided open frame with additionally positions for cable management
Roof and bottom prepared for accommodation of single fan Art.-No. 691664
Cabinet parts inside completely grounded, M5 grounding bolt at base frame
Max. load 60 kg (statically equally distributed), protection degree IP20
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 2 x key, earthing cable

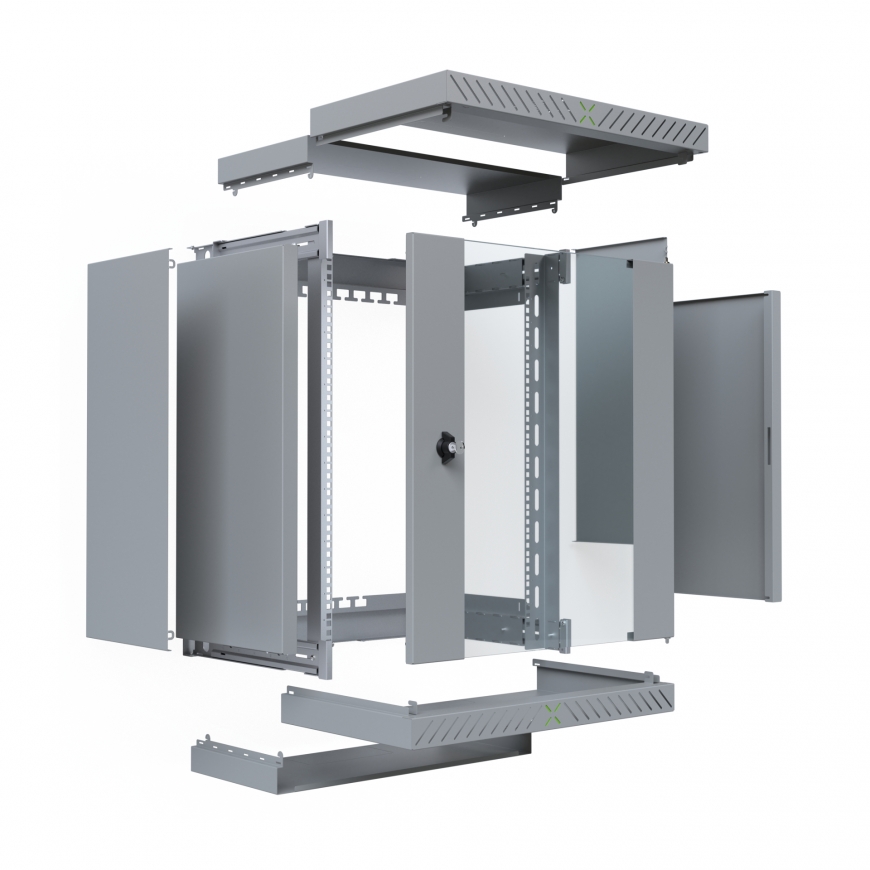

Delivery un-assembled in transport packaging (3 packages, rear frame + outer parts + front door)
Features | |
| Product colour | Grey |
| Material | Steel |
| International Protection (IP) code | IP20 |
| Key lock | Yes |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 60 kg |
Design | |
| Rack capacity | 15U |
Weight & dimensions | |
| Depth | 600 mm |
| Height | 766 mm |
| Width | 600 mm |
Other features | |
| Type | Wall mounted rack |
