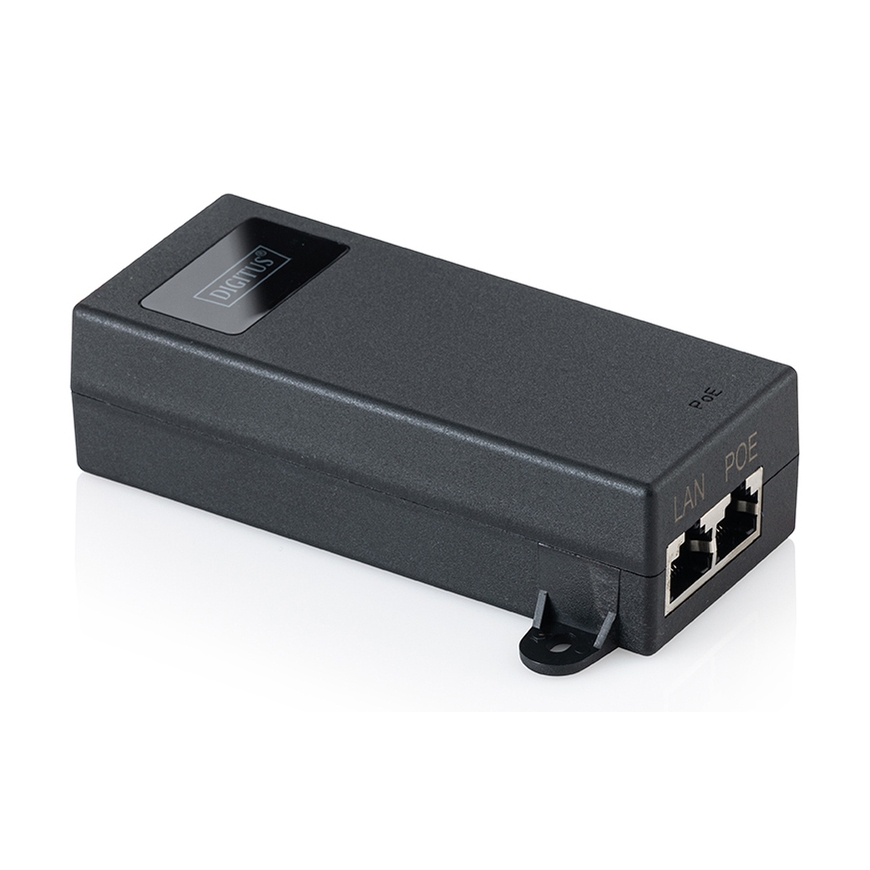

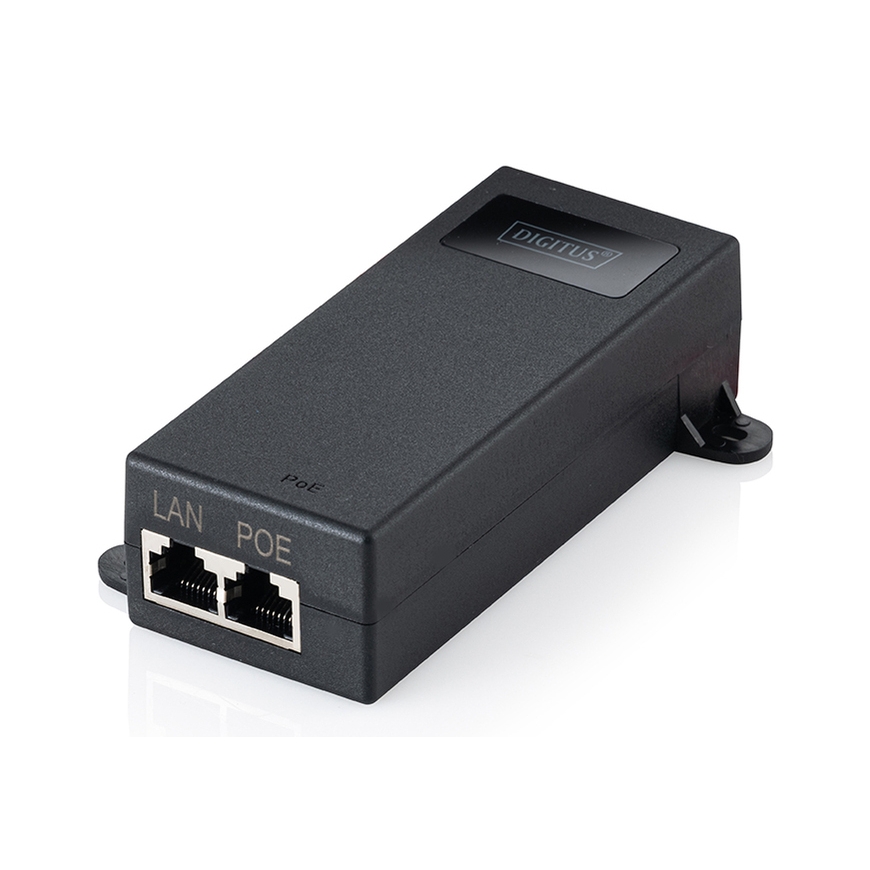

Digitus Gigabit Ethernet PoE++ injector, 802.3bt
49,00 €
Monthly payment from 2.16 €
4245235 DN-95104-1
4016032505785
Shipping 3-7 b.d.
You are interested in this product?
- Complies with the 802.3bt PoE++ standard
- Easy merging of power and data cables into a single cable
- Expand your network where there are no power lines or sockets
- No configuration required
- The output has a current limiter, short-circuit protection and automatic terminal device detection and classification
With the help of the Digitus PoE injector, you can minimize your cabling effort when installing PoE-capable devices such as IP network cameras. The data and power supply for the devices is only fed in via an Ethernet cable. This eliminates the need to lay a separate power cable and enables you to expand your network even where there are no sockets or power cables. The injector is fully compatible with the IEEE 802.3bt Ultra PoE standard and delivers an output power of 60 watts.
Network | |
| Networking standards | IEEE 802.3bt |
| Ethernet LAN data rates | 10, 100, 1000 |
| Cabling technology | 10/100/1000 |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
Design | |
| Product colour | Black |
Power | |
| Power consumption (typical) | 1.6 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 55 V |
Operational conditions | |
| Operating temperature (T-T) | -10 - 45 °C |
Weight & dimensions | |
| Width | 193 mm |
| Depth | 85 mm |
| Height | 41 mm |
| Weight | 164.7 g |
Packaging data | |
| Package width | 75 mm |
| Package depth | 118 mm |
| Package height | 85 mm |
| Number of products included | 1 pc(s) |
Other features | |
| Input current | 1.5 A |
Logistics data | |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 295 mm |
| Products per master (outer) case | 60 pc(s) |
Packaging content | |
| Quick installation guide | Yes |
