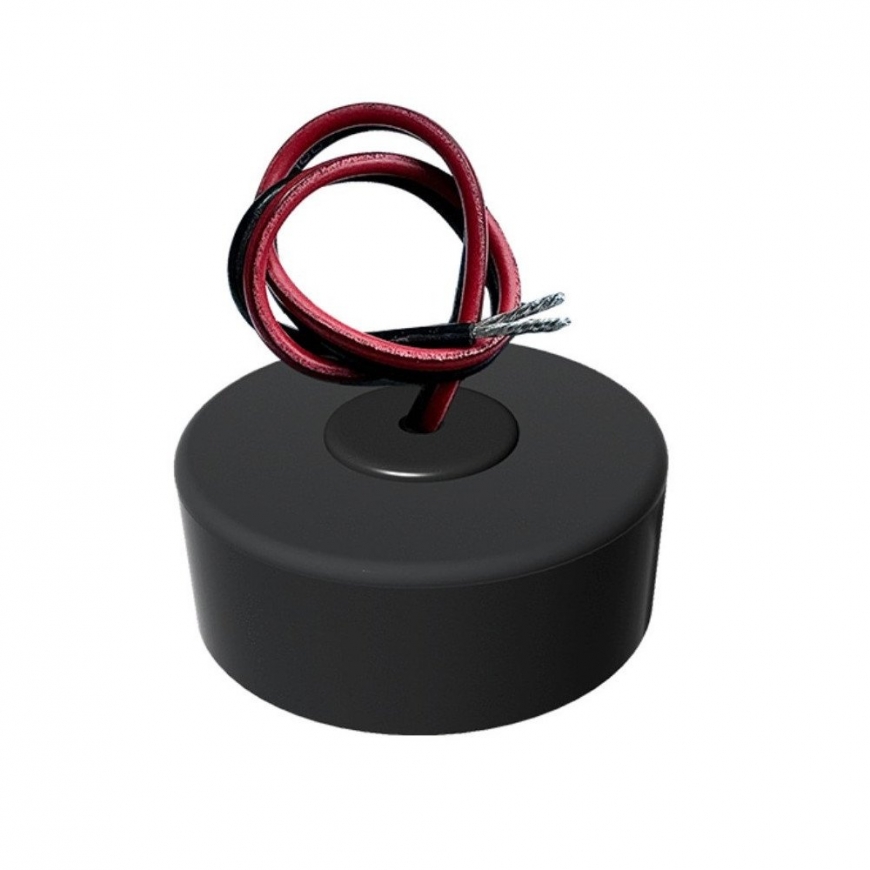

DIM flush-mount remote control for LED controller RF physical switch SD series

The remote control works with SD series controllers via a 2.4 GHz radio frequency and allows you to turn on/off and dim LED strips from the physical bell switch (monostable).

The extensive SD series allows you to connect devices with each other using 2.4 GHz RF communication. When using them, we can control both using a phone using the TUYA mobile application and using remote controls and wall panels from the SD series.

We can connect several SD series controllers or lamps to one remote control at the same time.

⭐ Main advantages: ⭐

✅ Dedicated to SD series devices(2.4 GHz RF communication)

✅Works with bell ringer(monostabilnym)physical switch

✅After connecting to the SD series LED controller, we can turn on/off and dim the LED strips using a physical switch.

✅ RF 2.4 GHz radio communicationo range up to 30 meters

✅ Possibility to assign up to 30 LED receivers

✅ PoweredCR2032 battery with a lifespan of up to 2 yearsunder normal use

✅ Constructedin the form of a permitted remote control

✅ Quick assemblyinon-invasive disassembly

✅ Magnetic casethe ball

ℹ️ Connection diagram and battery installation

The device connected to the physical button enables two functions:

• ✅Short press:enable/disable
• ✅Longer press (1-6s):gradual dimming/brightening of the light

Connected in this way, the switch will functionally turn into a scene controller for SD Series lighting.

ℹ️ Dimensions:

ℹ️ Specification:

• Communication:RF 2.4 GHz
• Power supply:1 x 3V CR2032 battery
• Number of supported zones/channels:1
• Communication range:up to 30 meters in open space (possibility of extension through additional signal retransmission)
• Working temperature:from -30 to + 55°C
• Tightness class:IP20
• Dimensions:43 x 43 x 17 mm
• Certificates:CE, EMC, RED

ℹ️ The set includes:

• Pilot
• CR2032 Battery
• Double-sided tape

Product code: PLD083C

✨ Create an incredibly advanced lighting system with the SD Series! ✨
