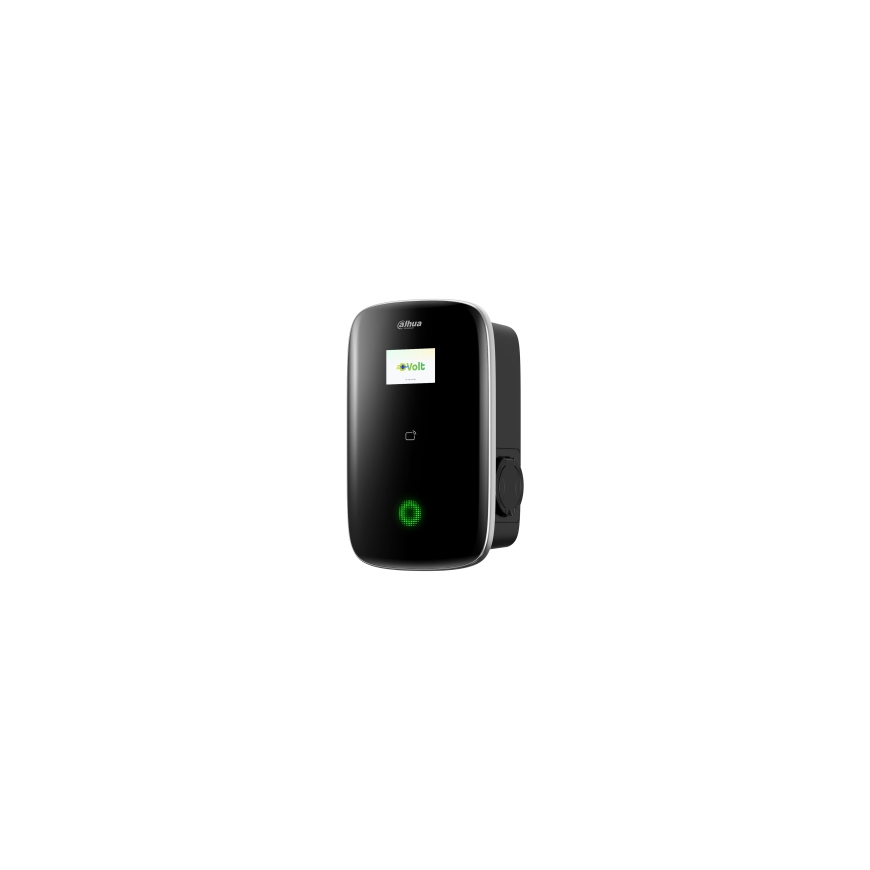

Dahua Technology Intelligent EV Charger
649,00 €
598,24 €
Monthly payment from 16.30 €
4198896 DHI-ICS-A220E-B2D-Z
6939554905414
Shipping 2-3 b.d.
You are interested in this product?
Multiple Start Methods
Charging can be easily initiated through App, RFID or Plug and Play.
Current Adjustment
The current can be adjusted from 6 A to 32 A. The EV Charger also has protection against overloads and safely uses home electricity, while providing fast charging at maximum power.
Scheduled Charging
Charging can be scheduled and energy levels customized. By selecting the most convenient charging periods, you can reduce electricity costs and ease the load on the power grid. Additionally, you can tailor the amount of energy for charging your vehicle based on the actual demands of its battery. This approach minimizes float charging and helps protect the battery.
Intelligent Operation and Maintenance
Supports error alarms, OTA update, DSO control, remote control and restart.
Protection Capabilities
Comes with protection against overvoltage, undervoltage, overcurrent, short circuits, lightning surges, electric surges, leakage, overtemperature, metering failure, CP disconnection, and vehicle PE disconnection. It can also detect relay sticking and LN reverse connection, and offers grounding protection, PEN protection, and data security. The EV Charger is also dustproof and waterproof so that you can feel secure and comfortable while using it.
Suitable for open parking lots such as those in enterprises, public institutions, stores, shopping malls, hospitals, and tourist attractions.
| Display diagonal | 10.9 cm (4.3") |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Product colour | Black |
| International Protection (IP) code | IP55 |
| Weight | 6 kg |
| Width | 273 mm |
| Depth | 171.5 mm |
| Height | 443 mm |
| Quantity per pack | 1 pc(s) |
| Doesn't contain | Mercury; Cadmium; Lead |
| Package width | 423 mm |
| Package depth | 606 mm |
| Package height | 409 mm |
| Package weight | 12 kg |
| Certification | IEC 61851-1, IEC 62196-2 |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Ethernet LAN | Yes |
| LED indicators | Status; Charging; Fault |
| Housing material | Polycarbonate (PC) |
| Built-in display | Yes |
| Mounting type | Wall |
| Power source type | AC |
| Power protection features | Over current; Over voltage; Overheating; Short circuit; Under voltage |
| Operating altitude | 0 - 2000 m |
| Number of phases | 3 |
| Socket type | Type 2 |
| Sockets quantity | 1 |
| RFID reader | Yes |
| Three-phase output voltage supported | 400 V |
| Nominal frequency | 50 Hz |
| Maximum operating power (three-phase) | 22 kW |
| Maximum operating current (three-phase) | 32 A |
| Mechanical impact protection code | IK10 |
| Maximum charging power | 22000 W |
| Compliance certificates | RoHS |
| Open Charge Point Protocol (OCPP) version | 1.6J |
| Nominal voltage | 400 V |
