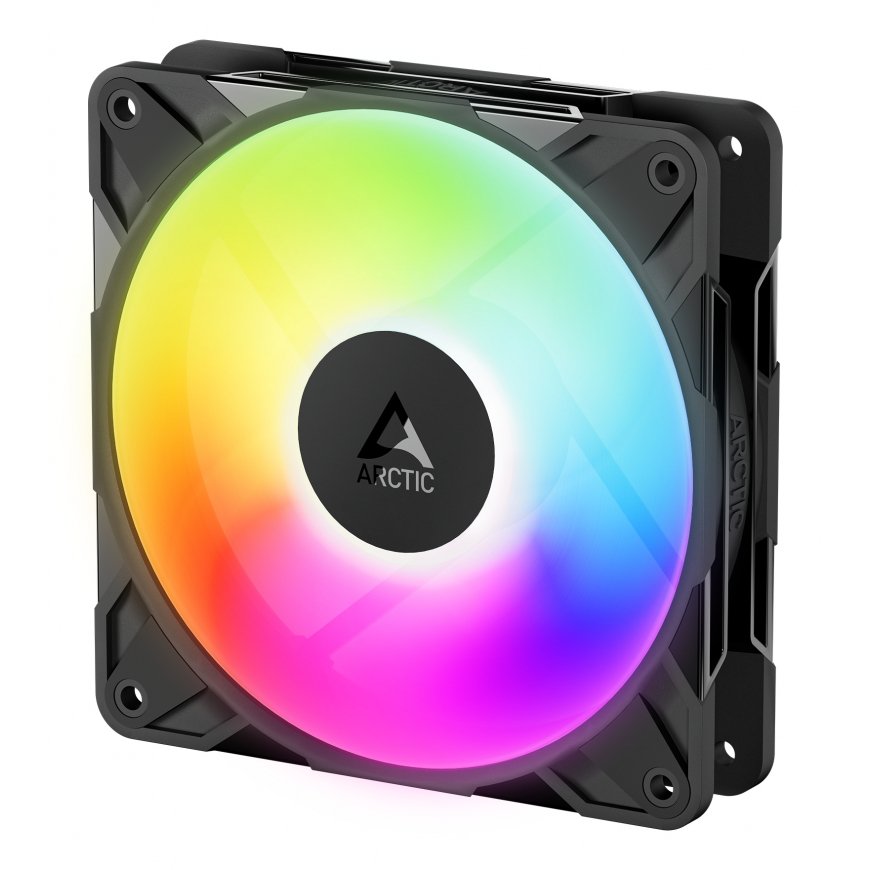

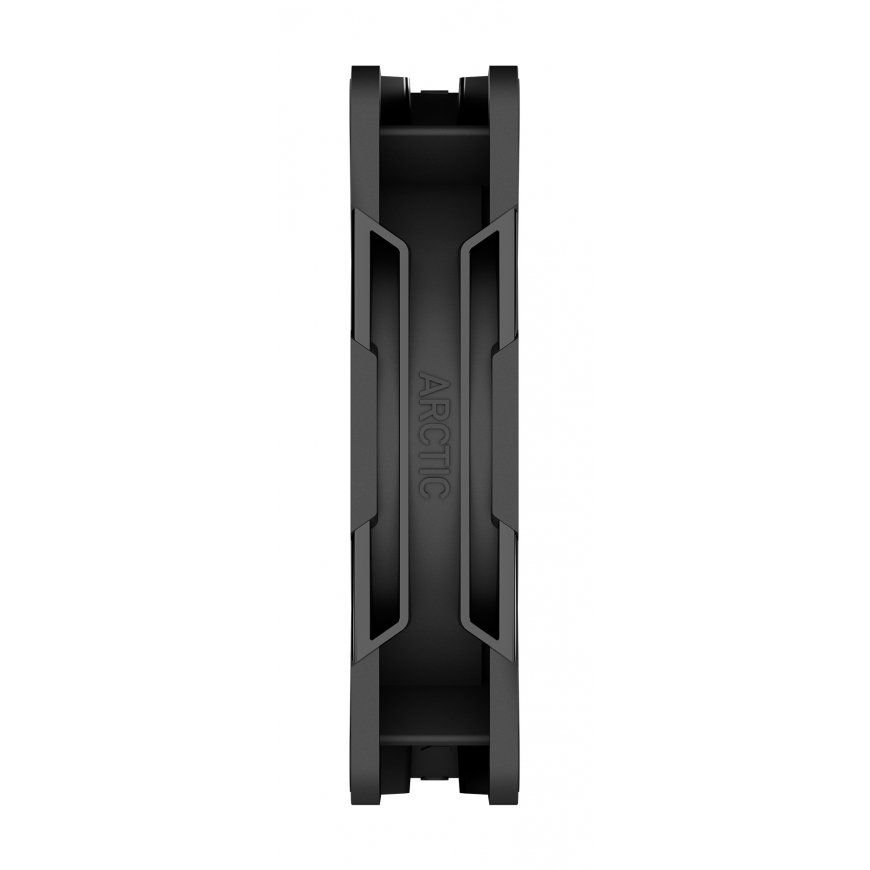

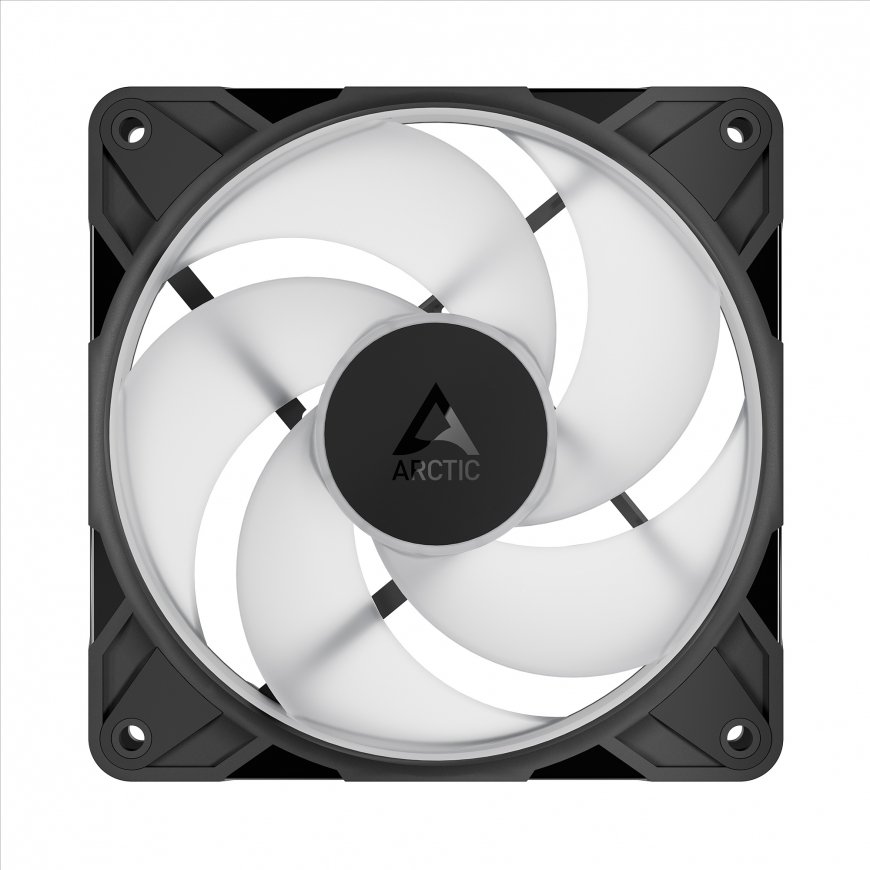

ARCTIC Freezer P12 Pro Reverse A-RGB 120 mm A-RGB - PWM Fan with Cable Splitter
4026609 ACFAN00322A
4895265000591
Shipping 4-6 b.d.

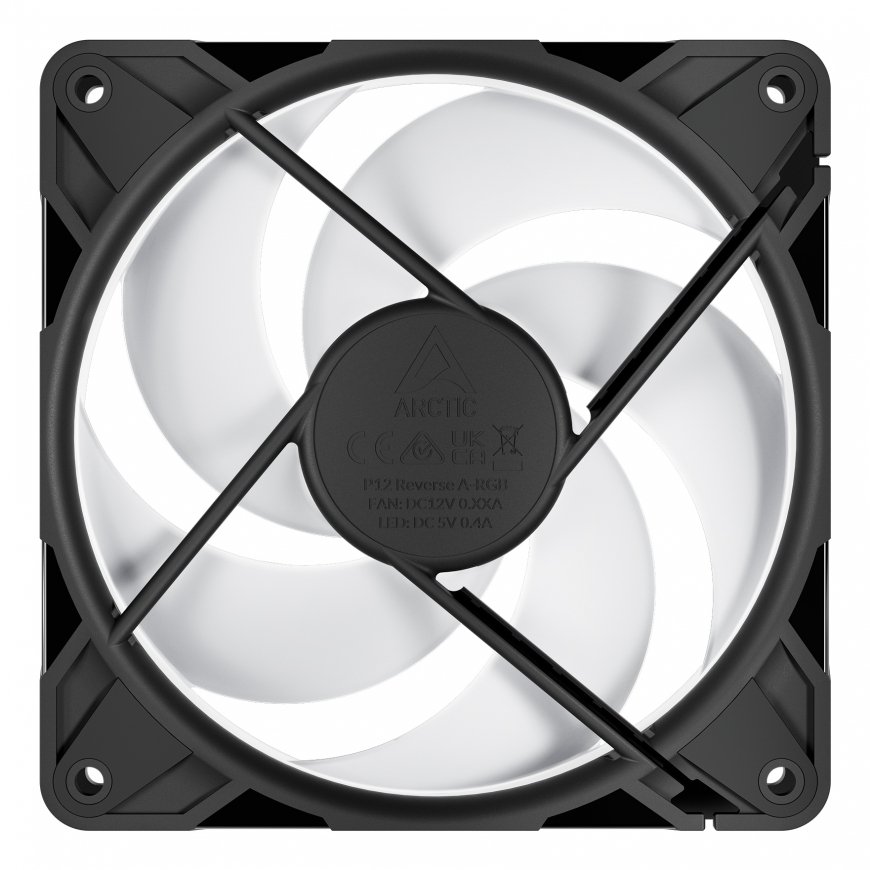

Reversed Airflow
The P12 Pro Reverse is specifically designed for air intake from the back side. It's particularly suitable when conventional fans would compromise the aesthetics.
Fan Speed
500–3000 rpm
Static Pressure
4.50 mm H2O
Bearing
Fluid Dynamic Bearing
Airflow
73 cfm | 124.03 m³/h
Optimized Airflow Design
The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses. This reduces air resistance, minimising turbulence and aerodynamic noise.
SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
More Power – Less Noise
An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy.
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – Easy Cable Management and Synchronized PWM Control
Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header.
Optimized FDB Bearing-Shaft Design
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
6-Year Warranty – Because Satisfaction Matters
Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.
Performance | |
| Operating temperature (T-T) | 0 - 40 °C |
| Type | Fan |
| Fan diameter | 12 cm |
| Airflow | 124 m³/h |
| Maximum airflow | 73 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 3000 RPM |
| Fan static pressure | 4.5 mmH2O |
| Suitable location | Computer case |
Design | |
| Product colour | Black |
| Illumination colour | Multi |
| Number of fans | 1 fan(s) |
| Illumination LED | Yes |
| Fan connector | 4-pin |
| Number of fan blades | 5 |
| LED connector type | 3-pin + 3-pin |
Power | |
| Starting voltage | 3.5 V |
| LED voltage | 5 V |
| Fan voltage | 12 V |
| Fan current | 0.4 A |
Weight & dimensions | |
| Package weight | 206 g |
| Cable length | 0.48 m |
| Fan weight | 172 g |
| Package height | 32 mm |
| Package width | 125 mm |
| Package depth | 127 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 27 mm |
