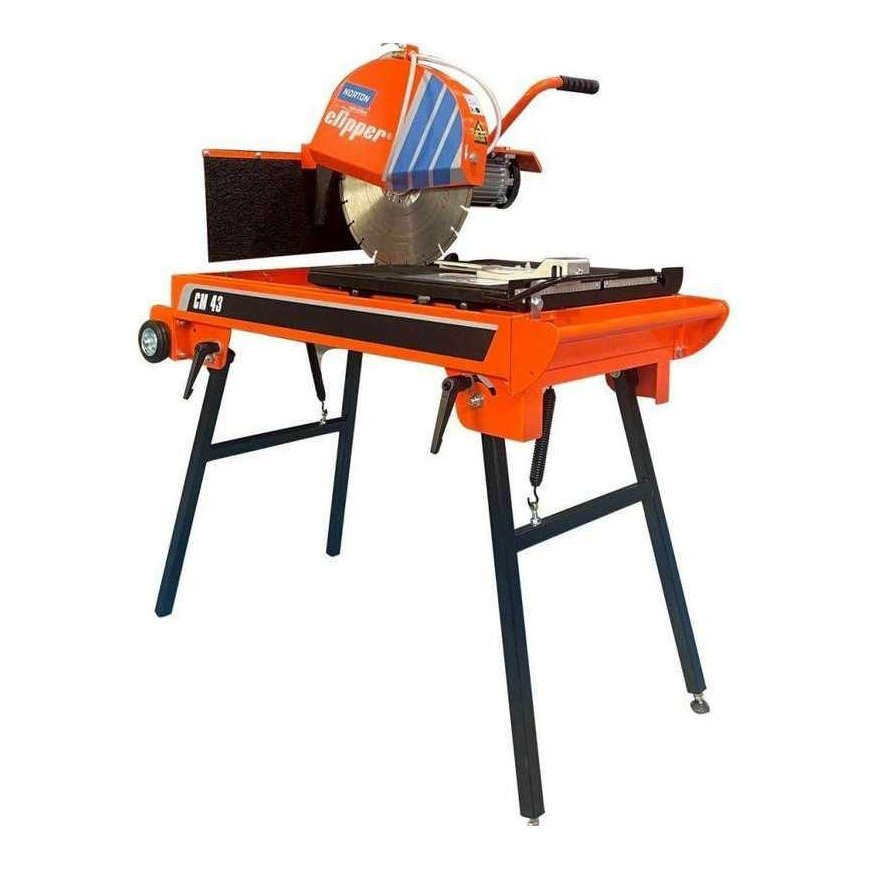

NORTON TABLE SAW FOR BUILDING MATERIALS CM43 230V 400mm + BLADE 70184610679
3879603 N70184634531
1000002716007
This product is no longer in stock
The CM 43 saw features a rotating cut at a 45° angle, allowing for versatile use without the need for additional tools. The highly accurate cutting guide with 1° angle adjustment ensures a perfect cutting line even when cutting non-standard materials. The large 500 x 540 mm working table surface and maximum 670 mm cutting length allow for comfortable cutting of boards up to 60 x 60 cm in size.
Weight: 90 kg
Dimensions: 1187 x 620 x 1360 mm
Voltage: 230 V 1~
Power: 2.2 kW (3 HP)
Rotation speed: 2800 min-1
Maximum cutting length: 670 mm
Blade diameter: 400 x 25.4 mm
Table dimensions: 500 x 540 mm
Maximum cutting depth: 135 mm (90°) | 90 mm (45°)
Sound power / sound pressure level: 92 dBA / 80 dBA
Fuse/Generator: 16 A / 6 kVA
Max. material height: 200 mm
Dimensions (without legs): 1187 x 620 x 740 mm
EAN: 5450248799207
