UNIVERSAL METER UT-136C+ UNI-T
UNIVERSAL METER UT-136C+ UNI-T
UNIVERSAL METER UT-136C+ UNI-T
UNIVERSAL METER UT-136C+ UNI-T
UNIVERSAL METER UT-136C+ UNI-T
UNIVERSAL METER UT-136C+ UNI-T
UNIVERSAL METER UT-136C+ UNI-T
UNIVERSAL METER UT-136C+ UNI-T
UNIVERSAL METER UT-136C+ UNI-T
UNIVERSAL METER UT-136C+ UNI-T
UNIVERSAL METER UT-136C+ UNI-T
UNIVERSAL METER UT-136C+ UNI-T
UNIVERSAL METER UT-136C+ UNI-T
UNIVERSAL METER UT-136C+ UNI-T
UNIVERSAL METER UT-136C+ UNI-T

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

UNIVERSAL METER UT-136C+ UNI-T

40,55 €
40,35 €
Monthly payment from 1.94 €
3830130

LEC-MIE0399

6935750513668

Shipping 1-14 b.d.

Quantity

You are interested in this product?
(Read terms of service)
DC Voltage Measurement : 400 mV ± (0.7% + 3)  @ 0.1 mV ,
4 V ± (0.5% + 2)  @ 0.001 V ,
40 V ± (0.7% + 3)  @ 0.01 V ,
400 V ± (0.7% + 3)  @ 0.1 V ,
1000 V ± (0.7% + 3)  @ 1 V
AC Voltage Measurement : 400 mV ± (1.0% + 3)  @ 0.1 mV ,
4 V ± (0.7% + 3)  @ 0.001 V ,
40 V ± (1.0% + 3)  @ 0.01 V ,
400 V ± (1.0% + 3)  @ 0.1 V ,
1000 V ± (1.0% + 3)  @ 1 V
DC Current Measurement : 400 µA ± (1.0% + 3)  @ 0.1 µA ,
4000 µA ± (1.0% + 3)  @ 1 µA ,
40 mA ± (1.0% + 3)  @ 0.01 mA ,
400 mA ± (1.0% + 3)  @ 0.1 mA ,
4 A ± (1.2% + 5)  @ 0.001 A ,
10 A ± (1.2% + 5)  @ 0.01 A
AC Current Measurement : 400 µA ± (1.2% + 5)  @ 0.1 µA ,
4000 µA ± (1.2% + 5)  @ 1 µA ,
40 mA ± (1.2% + 5)  @ 0.01 mA ,
400 mA ± (1.2% + 5)  @ 0.1 mA ,
4 A ± (1.2% + 5)  @ 0.001 A ,
10 A ± (2.0% + 5)  @ 0.01 A
Resistance Measurement : 400 Ω ± (1.0% + 2)  @ 0.1 Ω ,
4 kΩ ± (0.8% + 2)  @ 0.001 kΩ ,
40 kΩ ± (0.8% + 2)  @ 0.01 kΩ ,
400 kΩ ± (0.8% + 2)  @ 0.1 kΩ ,
4 MΩ ± (1.2% + 2)  @ 0.001 MΩ ,
40 MΩ ± (1.5% + 5)  @ 0.01 MΩ
Capacitance Measurement : 4 nF ± (4% + 10)  @ 0.001 nF ,
40 nF ± (4% + 10)  @ 0.01 nF ,
400 nF ± (4% + 10)  @ 0.1 nF ,
4 µF ± (4% + 10)  @ 0.001 µF ,
40 µF ± (4% + 10)  @ 0.01 µF ,
400 µF ± (4% + 10)  @ 0.1 µF ,
4 mF ± (4% + 10)  @ 0.001 mF ,
40 mF ± (4% + 10)  @ 0.01 mF
Inductance Measurement :
Frequency Measurement : 400 Hz ... 40 MHz ± (0.1% + 4)  @ 0.1 Hz ... 0.01 MHz
Rectangular Signal Duty Cycle Measurement :
Temperature Measurement :
  • °C :

    • -40  ... 40 °C ± 4  @ 1 °C ,
    >40  ... 500 °C ± (1.0% + 5)  @ 1 °C ,
    >500  ... 1000 °C ± (2.0% + 5)  @ 1 °C ,

  • °F :

    • -40  ... 104 °F ± 5  @ 1 °F ,
    >104  ... 932 °F ± (1.5% + 5)  @ 1 °F ,
    >932  ... 1832 °F ± (2.5% + 5)  @ 1 °F
    hFE :
    Diode Test :
    Acoustic Circuit Integrity Indication :
    Logic TTL State Checking :
    RS-232 :
    Main Features :

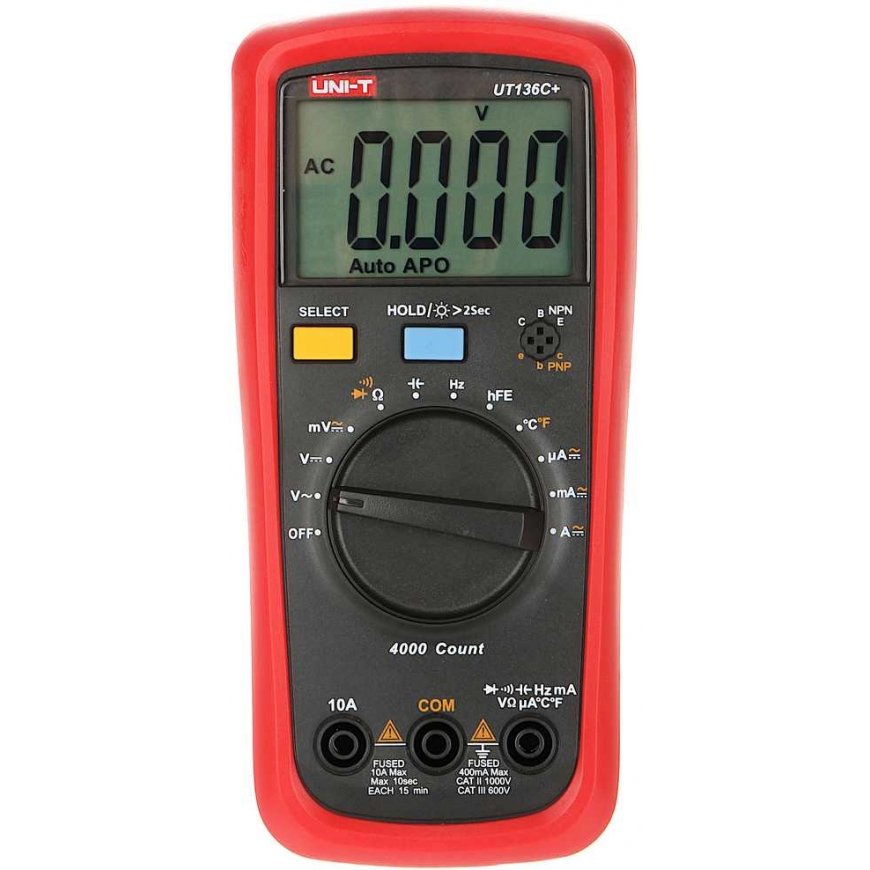

  • Large, readable LCD display with backlight
  • Hold - freeze the meter reading
  • Aesthetic and solid construction

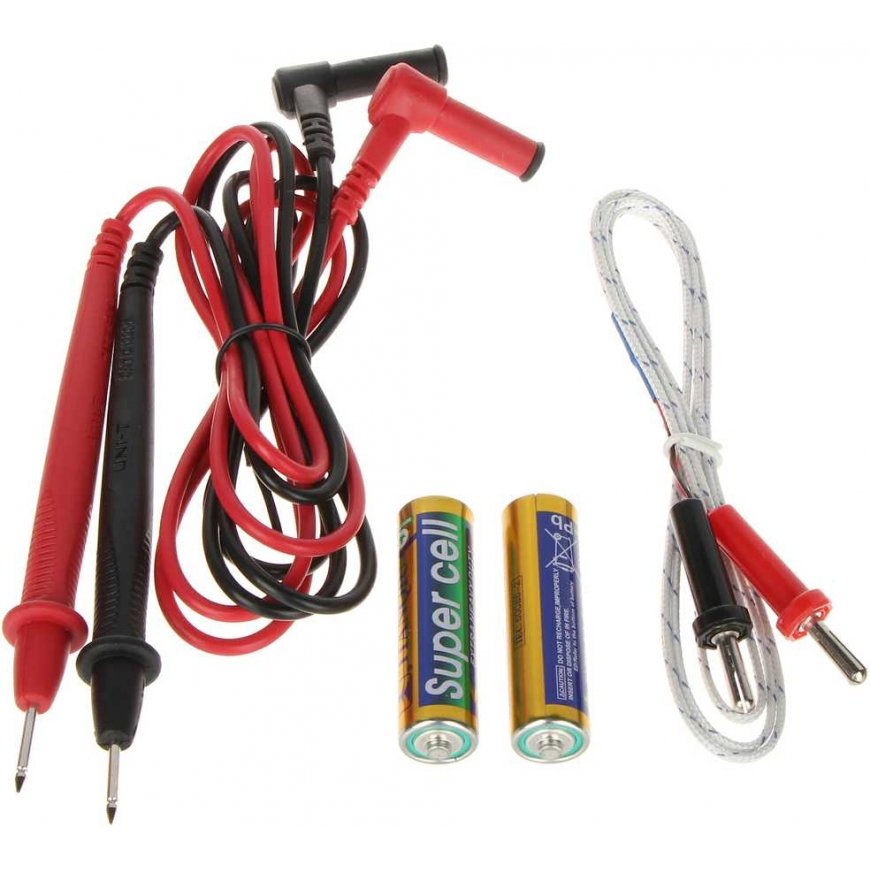

    • Power Supply : 2 x 1.5V battery, AA/LR6/FR6 type - included
    Dimensions : 177  x 83  x 57 mm
    Manufacturer / Brand : UNI-T
    Warranty : 2 years
