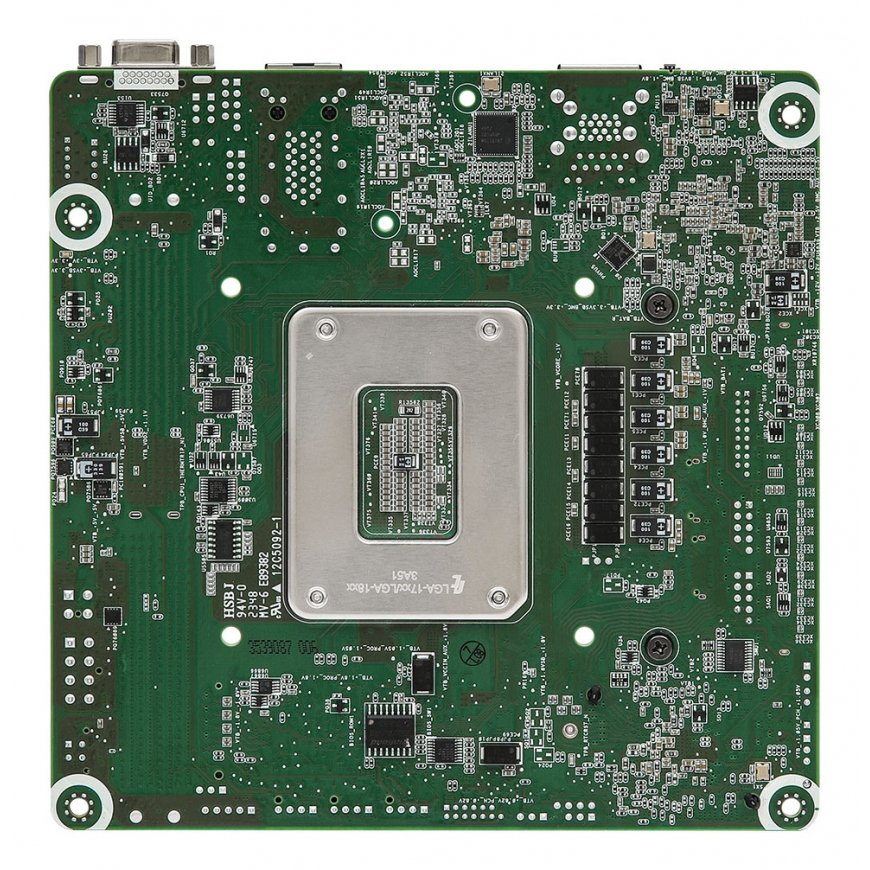

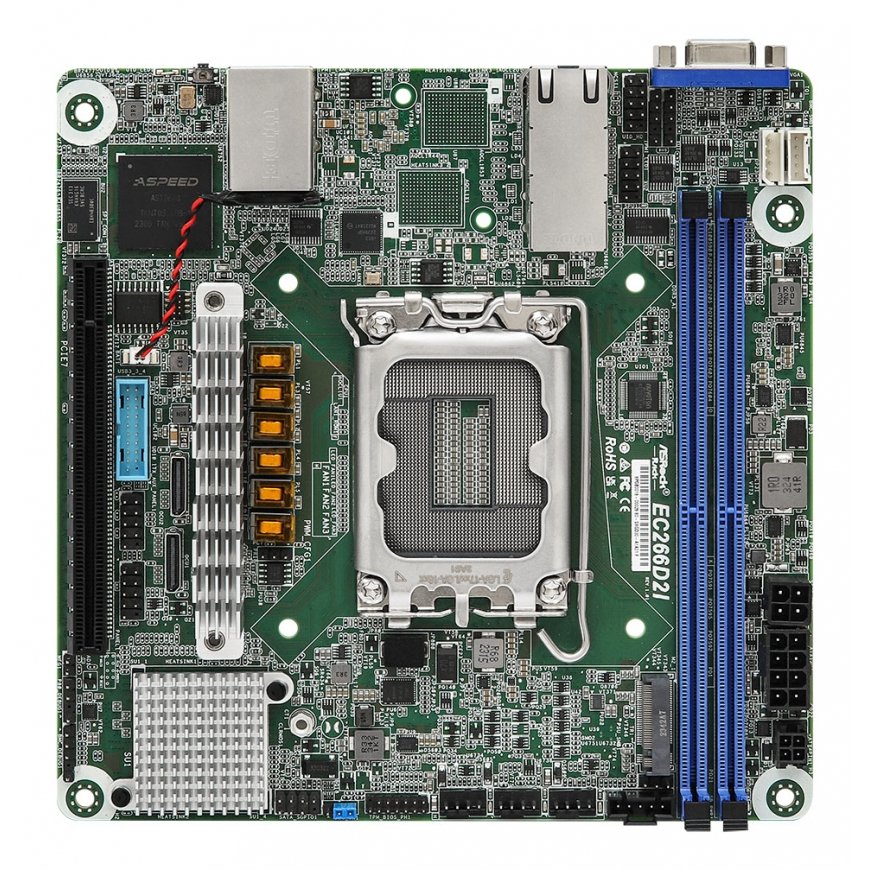

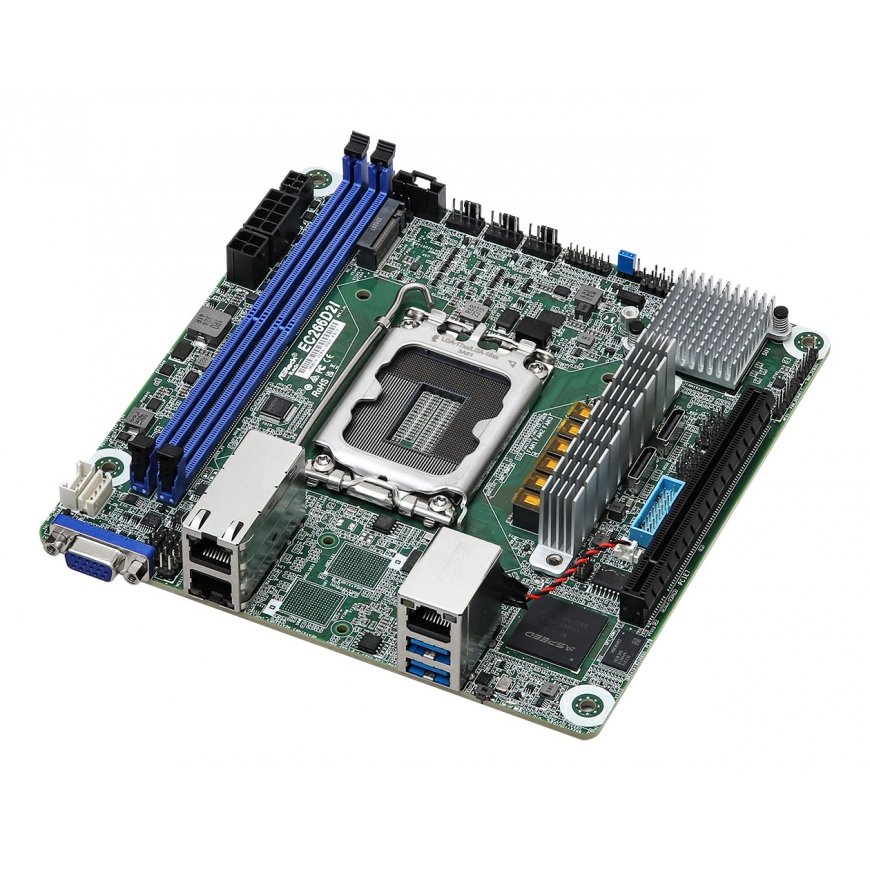

Asrock EC266D2I motherboard Intel C266 LGA 1700 mini ITX
389,00 €
Monthly payment from 10.92 €
3815212 EC266D2I
4711430521763
2026-07-14
You are interested in this product?
Processor | |
| Compatible processor series | Intel® Xeon®, Intel Xeon E, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Processor manufacturer | Intel |
Memory | |
| Maximum internal memory | 32 GB |
| Memory voltage | 1.1 V |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 4800 MHz |
| ECC сompatibility | ECC |
Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
Graphics | |
| On-board graphics card model | Aspeed AST2600 |
Internal I/O | |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| TPM connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 8 |
| EPS power connector (8-pin) | Yes |

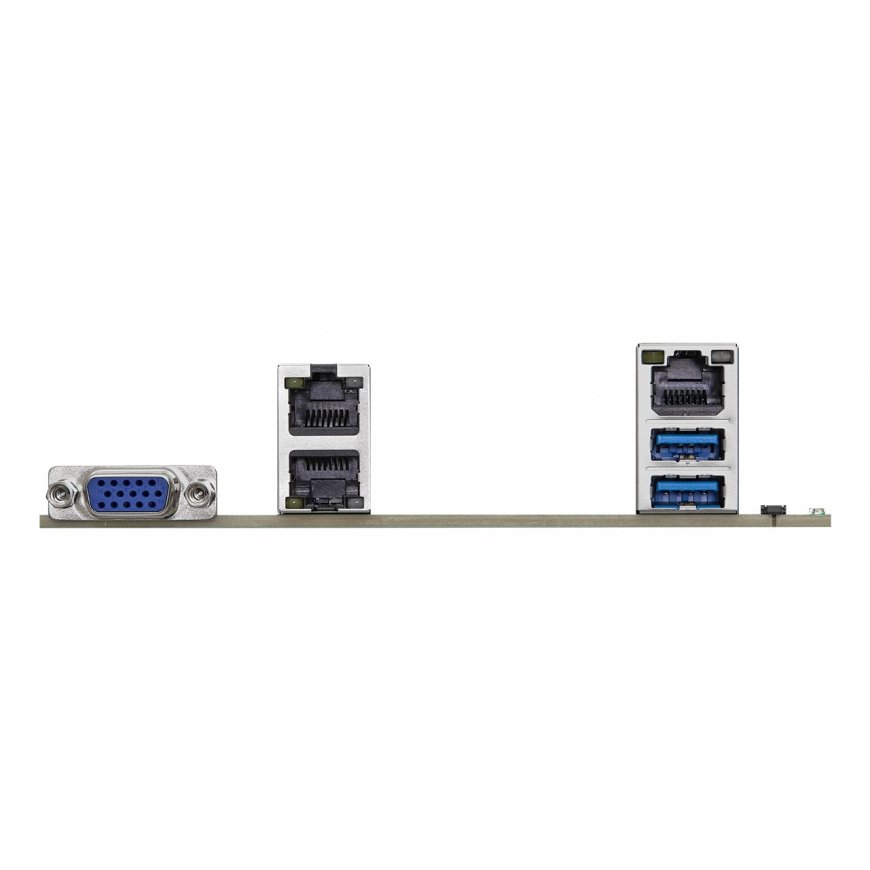

Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| IPMI LAN (RJ-45) port | Yes |
Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | mini ITX |
| Motherboard chipset | Intel C266 |
| Motherboard chipset family | Intel |
| PC health monitoring | CPU, Fan |
Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express OCuLink connectors (NVMe support) | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
BIOS | |
| BIOS type | AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 2.8 |
Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions | |
| Width | 170.2 mm |
| Depth | 170.2 mm |
