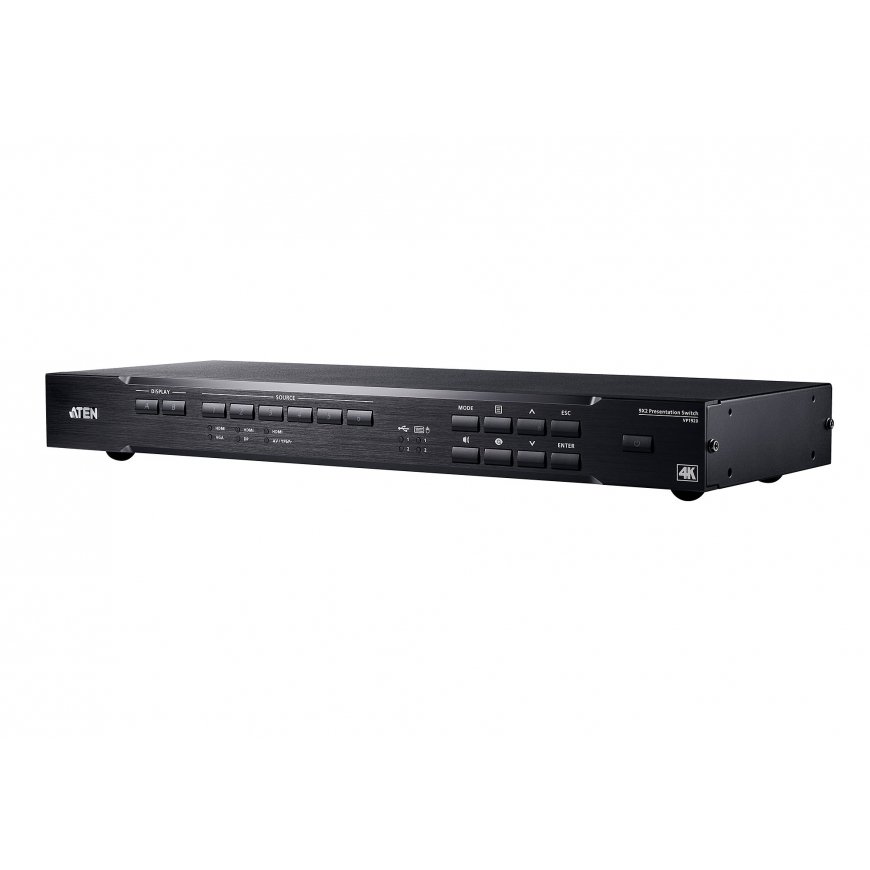

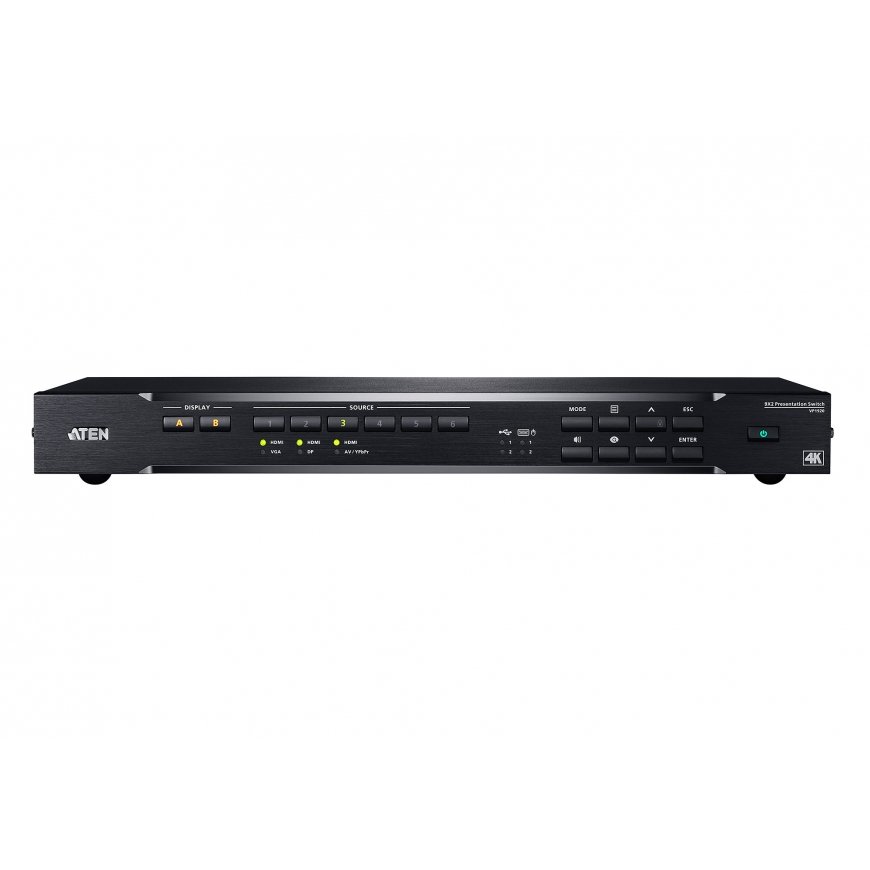

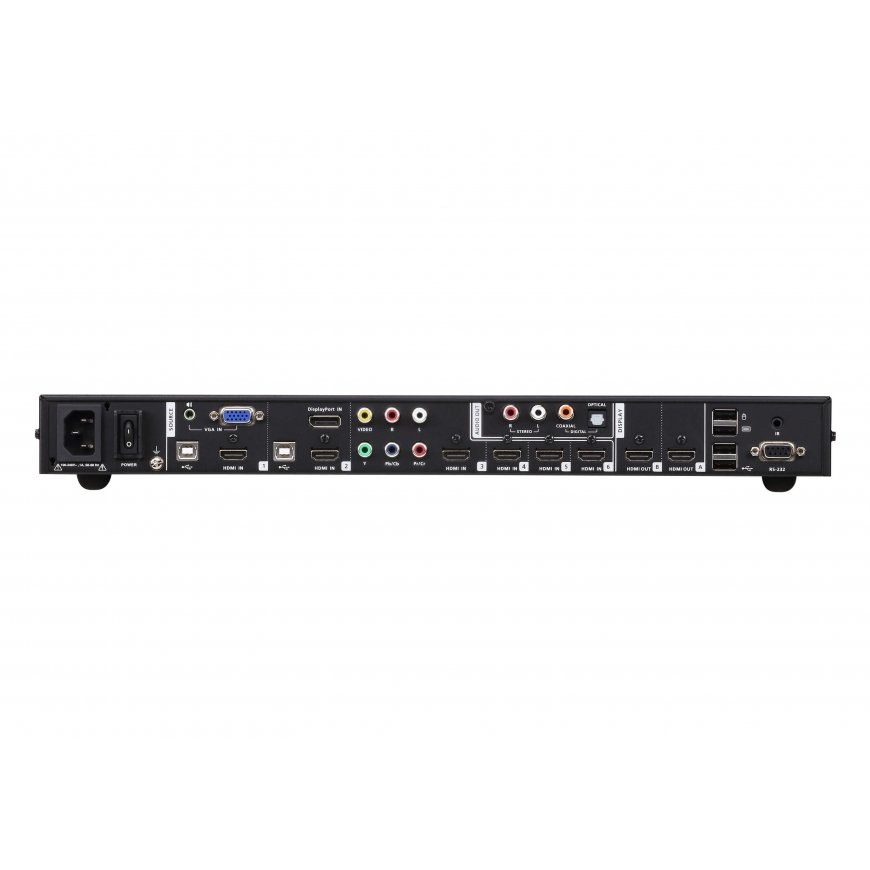

ATEN 9 x 2 Video Presentation Switch
557,43 €
Monthly payment from 15.25 €
3766067 VP1920-AT-G
4719264646089
Shipping 3-7 b.d.
You are interested in this product?
With streamlined control from front panel pushbuttons, IR remote controller, OSD, and RS-232, the VP1920 reduces not only system device count, but also lower operation complexity. It is suitable for all small-to-medium sized corporate and education presentation environments, such as meeting rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition centers or hotels.
| USB connector type | USB Type-A; USB Type-B |
| Weight | 2.5 kg |
| Width | 437.2 mm |
| Depth | 163.6 mm |
| Height | 44 mm |
| Cables included | AC |
| Package width | 131 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Package weight | 3.21 kg |
| Manual | Yes |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 10.3 kg |
| Products per master (outer) case | 3 pc(s) |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| LED indicators | Yes |
| Housing material | Metal |
| AC input voltage | 100-240 V |
| Input current | 1 A |
| Power consumption (typical) | 7.3 W |
| Product type | Media presentation matrix switcher |
| On/off switch | Yes |
| Built-in display | No |
| AC input frequency | 50-60 Hz |
| Remote control included | Yes |
| USB ports quantity | 6 |
| Housing colour | Black |
| Master (outer) case net weight | 7.5 kg |
| Composite video in | 1 |
| Digital audio optical out | 1 |
| HDCP | Yes |
| Storage relative humidity (H-H) | 0 - 80% |
| HDMI input ports quantity | 6 |
| Harmonized System (HS) code | 85299097 |
| HDCP version | 1.4 |
| Supported resolutions | 4096 x 2160, 3840 x 2160, 1920 x 1200 |
| HDMI output ports quantity | 2 |
| RS-232 ports | 1 |
| IR receiver included | Yes |
| Heat dissipation | 60 BTU/h |
| VGA (D-Sub) input ports | 1 |
| Audio (L/R) out | 1 |
| Extended display identification data (EDID) | Yes |
| DisplayPorts in | 1 |
