-1%
The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.
Earth
88,99 €
87,78 €
Monthly payment from 3.16 €
3731554 R82010
5907634582887
Shipping 1-14 b.d.
You are interested in this product?

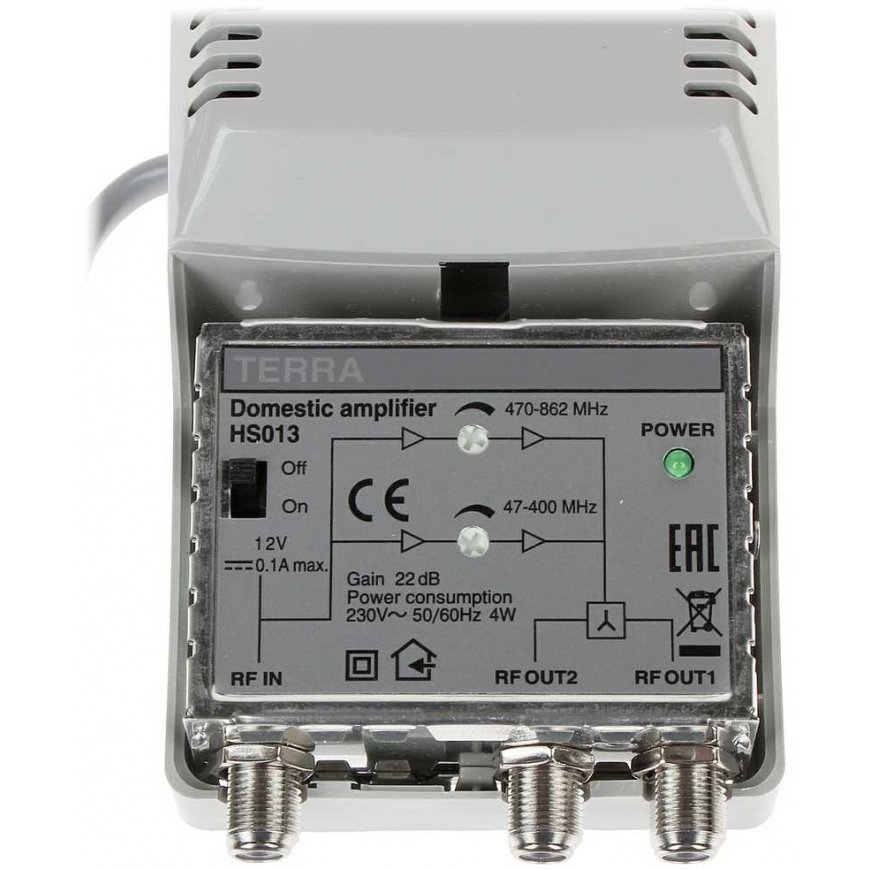

| Frequency range : | 47 MHz ... 400 MHz / 470 MHz ... 862 MHz |
| Number of inputs/outputs : | 1 / 2 |
| Input / output impedance : | 75 Ω |
| Connector type : | "F" |
| Gain : | 22 dB |
| Gain adjustment : | 12 dB UHF 15 dB VHF |
| Signal-to-noise ratio : | < 4.5 dB |
| IMA3 60dB : | max. 105 dBµV |
| Voltage transmission for preamplifiers installed in antennas : | 12 V / 100 mA (switch) |
| Power supply : | 198 ... 240 V |
| Power consumption : | 4 W |
| Operating temperature : | -20 °C ... 50 °C |
| Weight : | 0.38 kg |
| Dimensions : | 119 x 71 x 45 mm |
| Manufacturer / Brand : | TERRA |
| Warranty : | 2 years |
