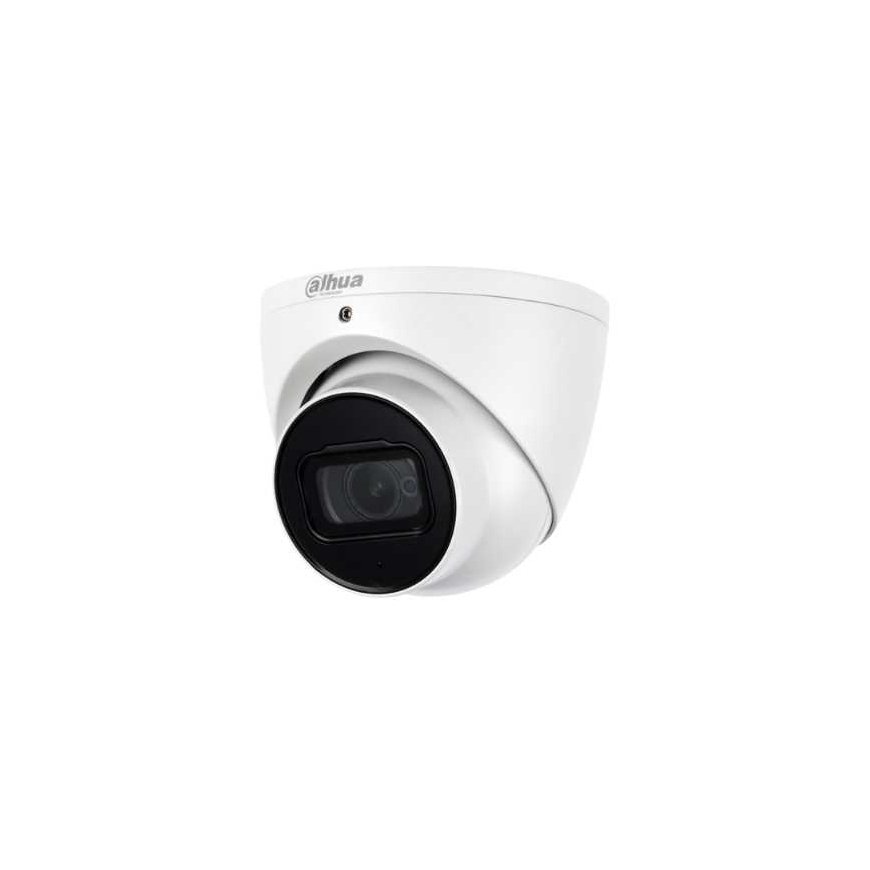

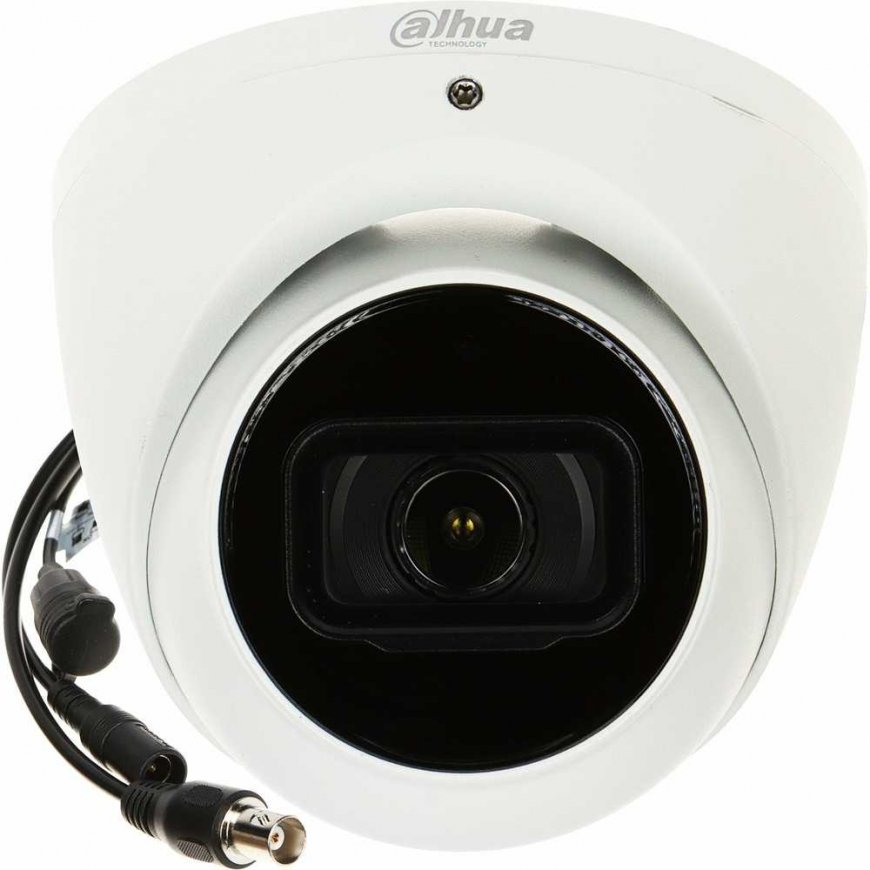

AHD, HD-CVI, HD-TVI, PAL CAMERAS HAC-HDW2802T-A-0280B-S2-DIP - 8.3 Mpx, 4K UHD 2.8 mm DAHUA
3648550 HAC-HDW2802T-A-0280B-S2-DIP
6923172580481
This product is no longer in stock
Megapixel camera with Progressive scan CMOS transmitter and AHD / HD-CVI / HD-TVI / CVBS interface.
The AHD / HD-CVI / HD-TVI interface provides analog video signal transmission with a coaxial cable up to 8 Mpx (4K UHD).
There are no delays during transmission and the original, high image quality is maintained.
Note! The camera is set to the HD-CVI standard.
Changes to standards can be made with configuration switches.
Thanks to the Starlight technology used, the camera requires very low lighting to achieve a bright, colorful image.
In the case of video transmission with twisted wire and transformers that adapt to impedance, the possibility of signal reflections, as well as the possibility of signal propagation between themselves, must be taken into account.
| Standard : | AHD , HD-CVI , HD-TVI , PAL |
| Resolution : | HD-CVI : 3840 x 2160 - 8.3 Mpx , 4K UHD @ 15 kps , 3072 x 2048 - 6.3 @ 20 fps , 2560 x 1440 - 3.7 Mpx @ 25 fps , AHD / HD-TVI : 2592 x 1944 - 5 Mpx , 2560 x 1440 - 3.7 Mpx @ 25 fps , CVBS : 960 x 576 - 960H , PAL |
| Sensor : | "Progressive Scan CMOS |
| IR illuminator coverage : | 60 m |
| IR illuminator power adjustment : | Automatic |
| Signal/noise ratio (S/N) : | > 65 dB |
| Lens : | 2.8 mm |
| Viewing angle : | 111 ° |
| Video output : | AHD / HD-CVI / HD-TVI / PAL , 1 Vpp / 75 Ω |
| Audio : | Built-in microphone - HD-CVI only |

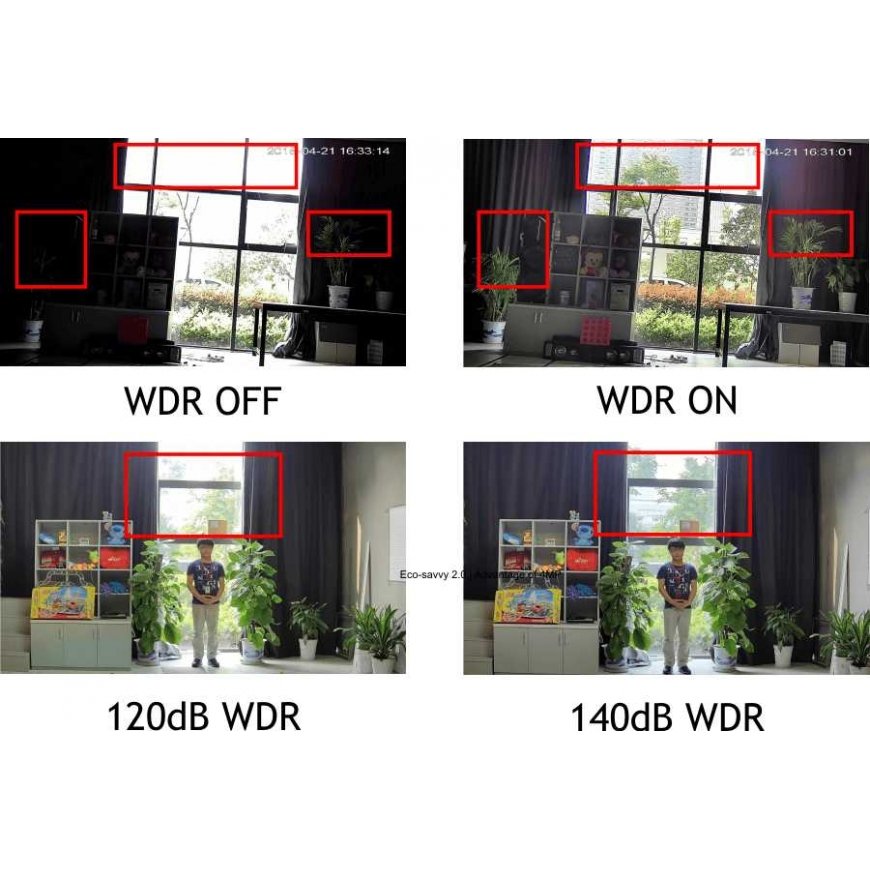

| Selected features : | WDR - 120 dB - Wide Dynamic Range 3D-DNR - Digital Image Noise Reduction F-DNR (Defog) - Reduction of noise associated with atmospheric precipitation D-ZOOM - digital zoom x4 BLC/HLC - Backlight/Highlight Compensation ICR - mechanical IR filter Automatic white balance AGC - Automatic Gain Control Sharpness - sharpening image contours |
| OSD screen menu : | OSD menu available on DAHUA recorder |
| Power supply : | 12V DC / 530mA |
| Power consumption : | ≤ 6.4W |
| Body : | Dome, Metal |
| Color : | White |
| Anti-vandal : | - |
| Tightness class : | IP67 |
| Working temperature : | -40°C ... 60°C |
| Weight : | 0.49 kg |
| Dimensions : | Ø 106 x 94 mm |
| Languages supported : | Polish, English |
| Manufacturer / Brand : | DAHUA |
| Warranty : | 3 years |
