Home page > Electronics>Security Systems>Security cameras>BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1
BCS Line BCS-L-DIP48VSR4-Ai1

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

BCS Line BCS-L-DIP48VSR4-Ai1

288,99 €
Monthly payment from 8.34 €
3623875

1765127

5904890708839

2026-07-22

Quantity

You are interested in this product?
(Read terms of service)
Standard : IP
Resolution : 3840 x 2160 - 8.3 Mpx 4K UHD ,
3072 x 2048 - 6 Mpx ,
3072 x 1728 - 5.3 Mpx ,
2592 x 1944 - 5 Mpx ,
2880 x 1620 - 4.7 Mpx ,
2688 x 1520 - 4 Mpx ,
2048 x 1536 - 3 Mpx ,
2304 x 1296 - 3 Mpx ,
1920x1080 - 1080p ,
1280 x 960 - 1.3 Mpx ,
1280x720 - 720p
Sensor : 1/2.7 " Progressive Scan CMOS
Lens : 2.7 ... 13.5 mm @ F1.5 - Motozoom
Viewing angle : 113° ... 31°
IR illuminator coverage : 40 years
Memory card slot : Support for Micro SD cards up to 256GB (local recording possible)
Image compression method : H.265+ / H.265 / H.264+ / H.264 / MJPEG
Alarm inputs/outputs : 1 / 1
Audio :
  • Integrated microphone,
  • Audio input
  • Audio output
  • Bidirectional audio streaming support
    • Main stream transmission speed : 25 fps @ 8.3 Mpx
    Interface : 10/100 Base-T (RJ-45)
    WEB Server : Integrated
    Max. number of online users : 20
    ONVIF :
    Advanced video analysis :
  • intrusion - classification of people and vehicles
  • crossing lines - classification of people and vehicles
    • Selected features :
  • WDR - 120 dB - Wide Dynamic Range
  • 3D-DNR - Digital Image Noise Reduction
  • BLC/HLC - Backlight/Highlight Compensation
  • Ability to change resolution, quality and bandwidth
  • AGC - Automatic Gain Control
  • AES - Automatic Electronic Screen Saver
  • Image flipping and mirroring
  • ICR - mechanical IR filter
  • Day/night mode
  • AWB - Auto White Balance
  • Motion detection - max. 4 zones
  • Privacy zones - max. 4
  • SMD PLUS - searching for an object classified as: person, motor vehicle
  • Filtering false alarms based on person and vehicle recognition
  • D-ZOOM - digital zoom: 16 x
    • Access from mobile phone : Port: 37777 or cloud access
  • Android: Free BCS Manager app
  • iOS (iPhone): Free BCS Manager app
    • Default IP address : 192.168.1.108
    Default user image/admin password : admin / -
    The administrator password must be entered the first time you turn it on.
    Access ports via www : 80, 37777
    Access port via program to PC : 37777
    Access ports via mobile app : 37777
    ONVIF port : 80
    RTSP URL : rtsp://admin:[email protected]:554/cam/realmonitor?channel=1&subtype;=0 - Main stream
    rtsp://admin:[email protected]:554/cam/realmonitor?channel=1&subtype;=1 - Auxiliary stream
    Power supply :
  • PoE (802.3af) ,
  • 12V DC / 610mA
    • Power consumption : max. 7.3 W
    Body : Dome - Metal
    Color : White
    Tightness class : IP67
    Mechanical protection class : IK10
    Working temperature : -30°C ... 60°C
    Weight : 0.51 kg

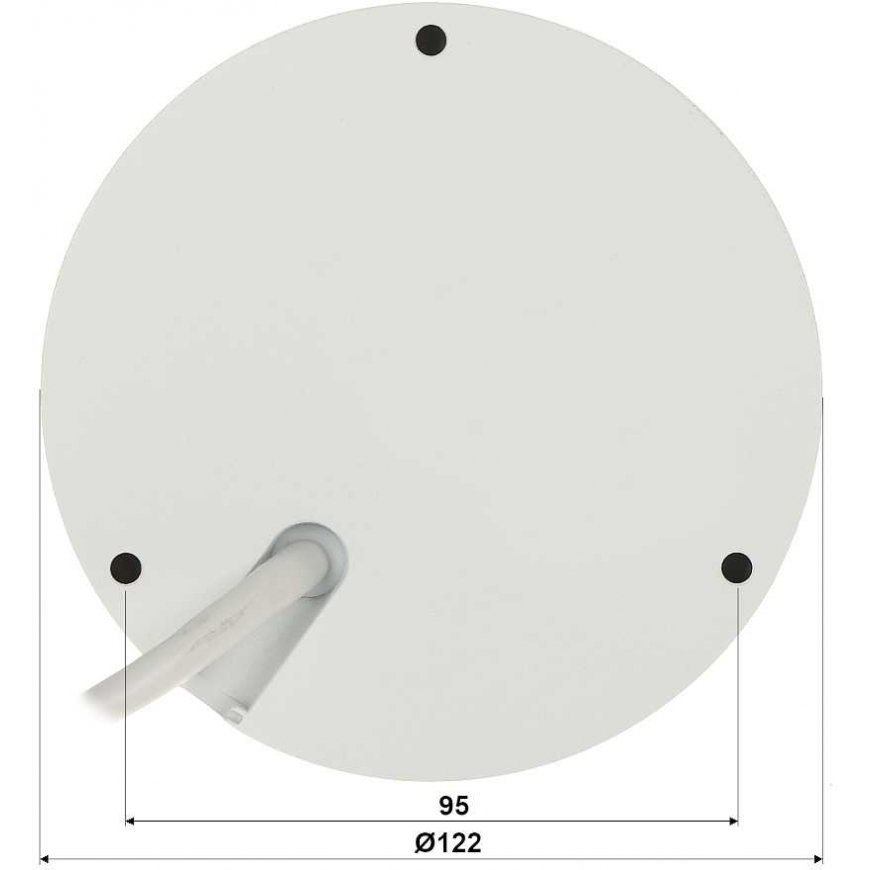

    Dimensions : Ø 122 x 93 mm
    Languages supported : Polish, English
    Manufacturer / Brand : BCS Line
    Warranty : 3 years
