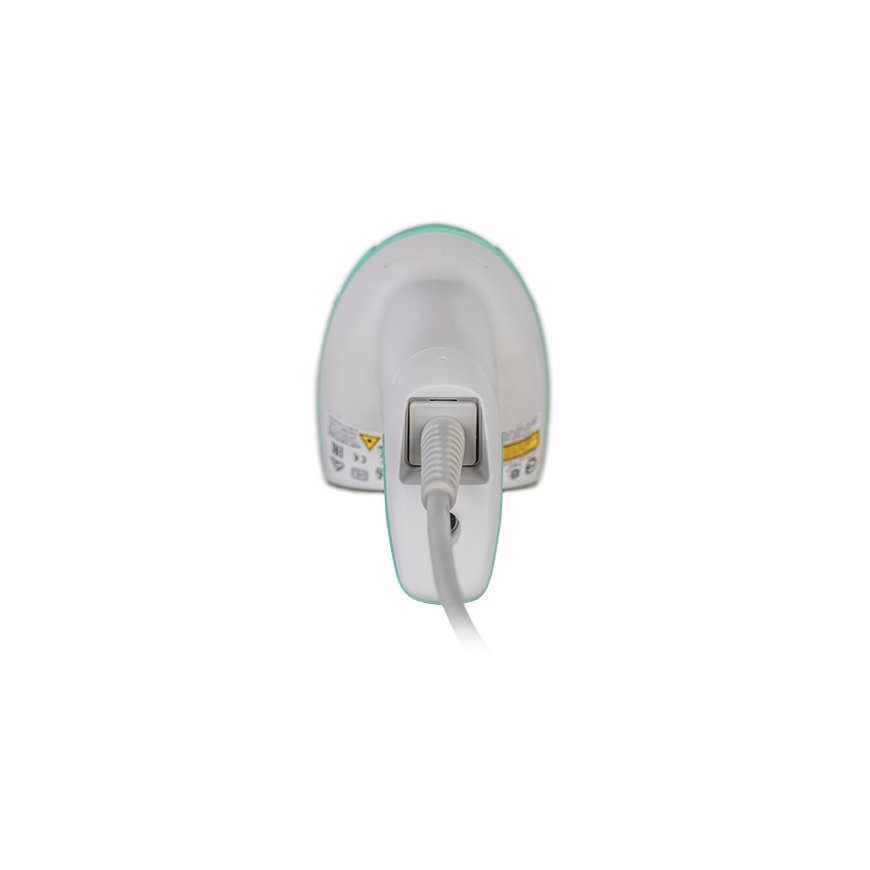

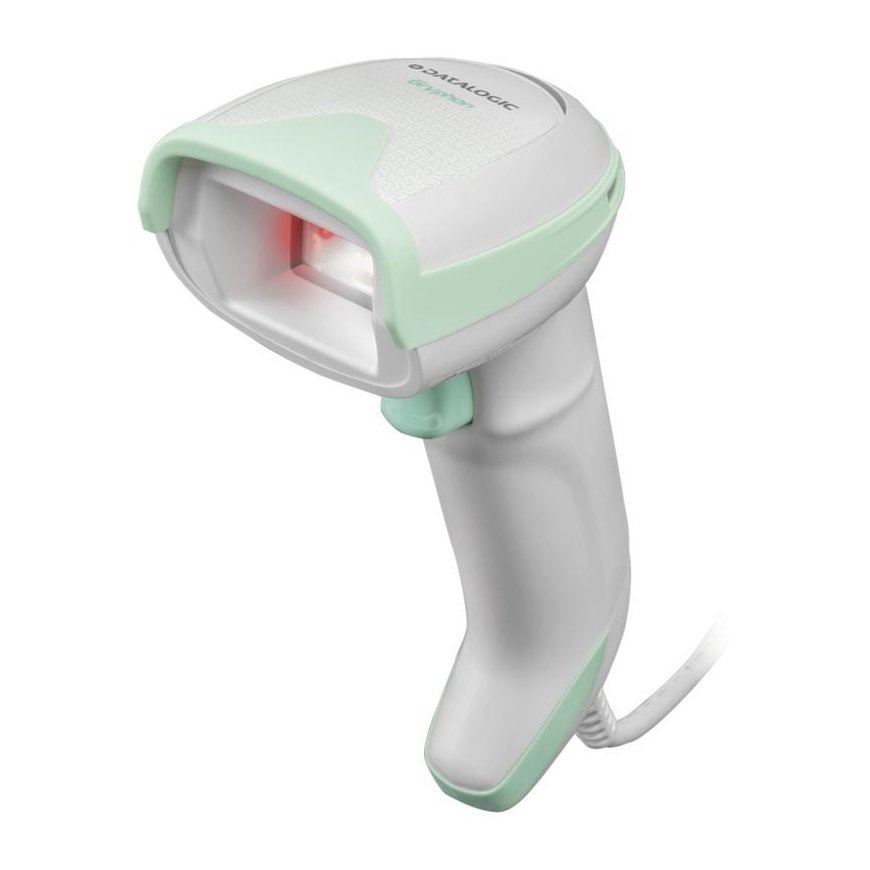

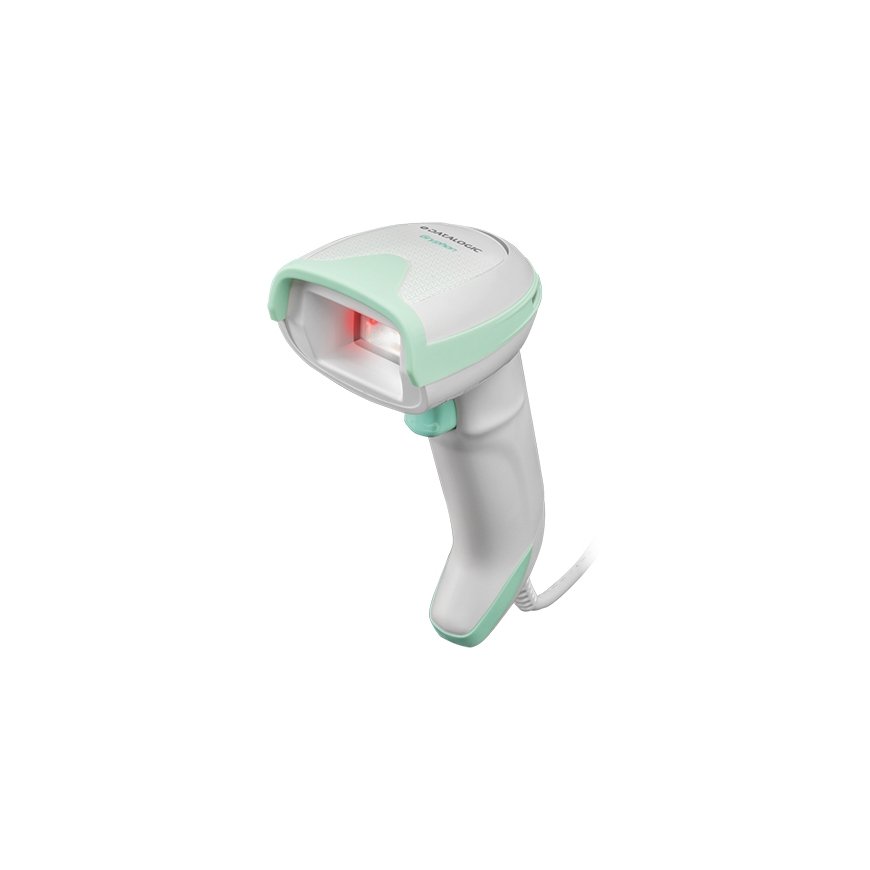

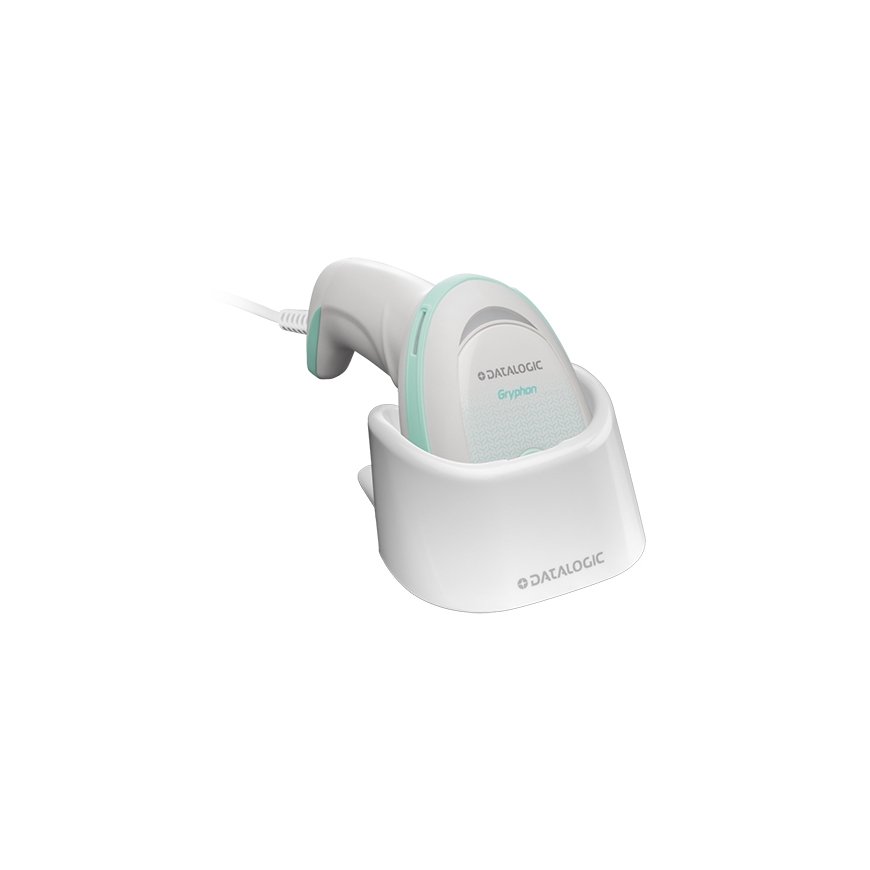

Datalogic Gryphon I GD4520 Handheld bar code reader 1D/2D White
308,76 €
Monthly payment from 8.85 €
3620343 GD4520-HCK1
5706998503138, 4060533217852, 4250389271751
This product is no longer in stock
You are interested in this product?
The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.
The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.

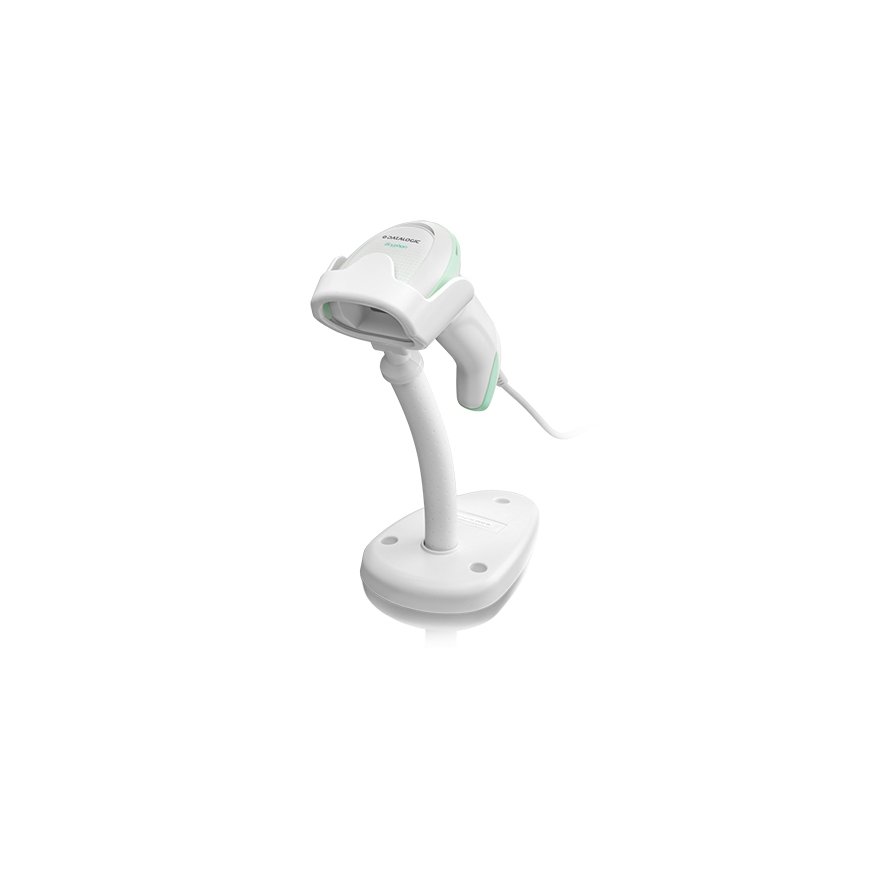

The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.
Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
Features | |
| Scanner type | 1D/2D |
| Product colour | White |
Scanning | |
| Wavelength | 650 nm |
| Pitch reading angle | -65 - 65° |
| Tilt reading angle | 0 - 360° |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Type | Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Han Xin |
| Motion tolerance (cm/s) | 88.9 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
Other features | |
| Certification | IEC 60825 Class 2 |
| Image formats supported | BMP, JPEG, TIFF |
| Compliance certificates | RoHS |
Performance | |
| International Protection (IP) code | IP52 |
| Protection features | Drop proof |
Design | |
| Built-in display | No |
Power | |
| Input voltage | 5 V |
| Power source type | DC |
| Power consumption | 300 mA |
Weight & dimensions | |
| Weight | 161 g |
| Width | 68 mm |
| Depth | 109 mm |
| Height | 166 mm |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Packaging content | |
| Cables included | USB |
Logistics data | |
| Harmonized System (HS) code | 84716070 |
