Eura ELECTROMAGNETIC LOCK XS24U Hartte BIRA
41,63 €
Monthly payment from 1.97 €
3619763 XS24U
5903857581690
This product is no longer in stock
You are interested in this product?

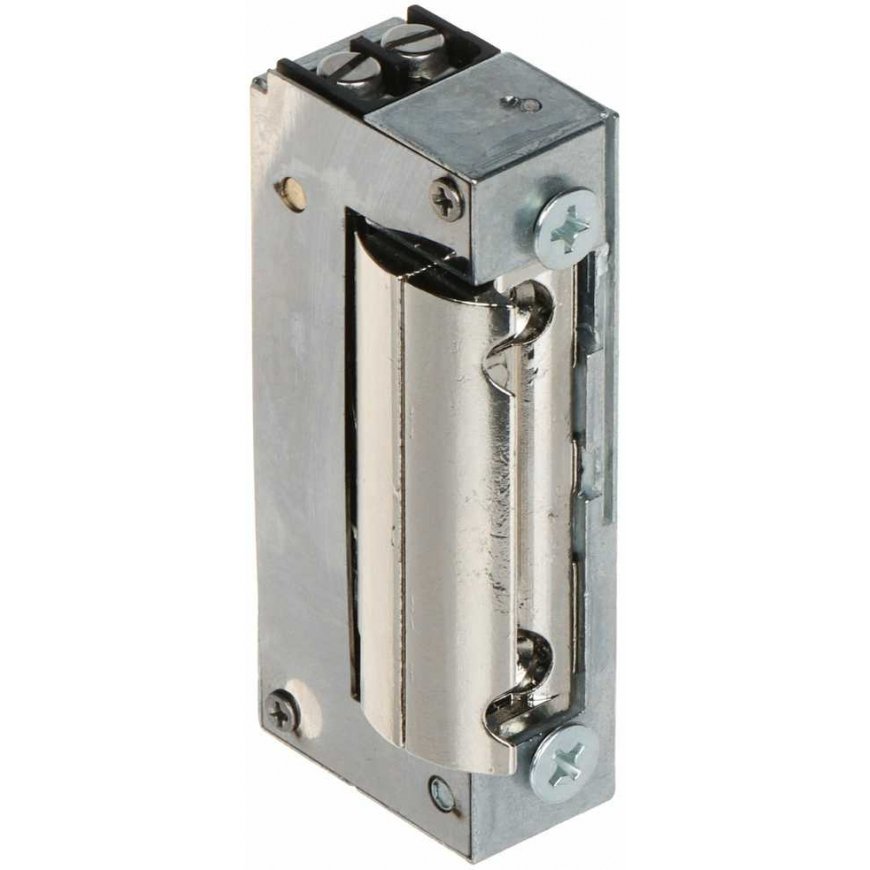

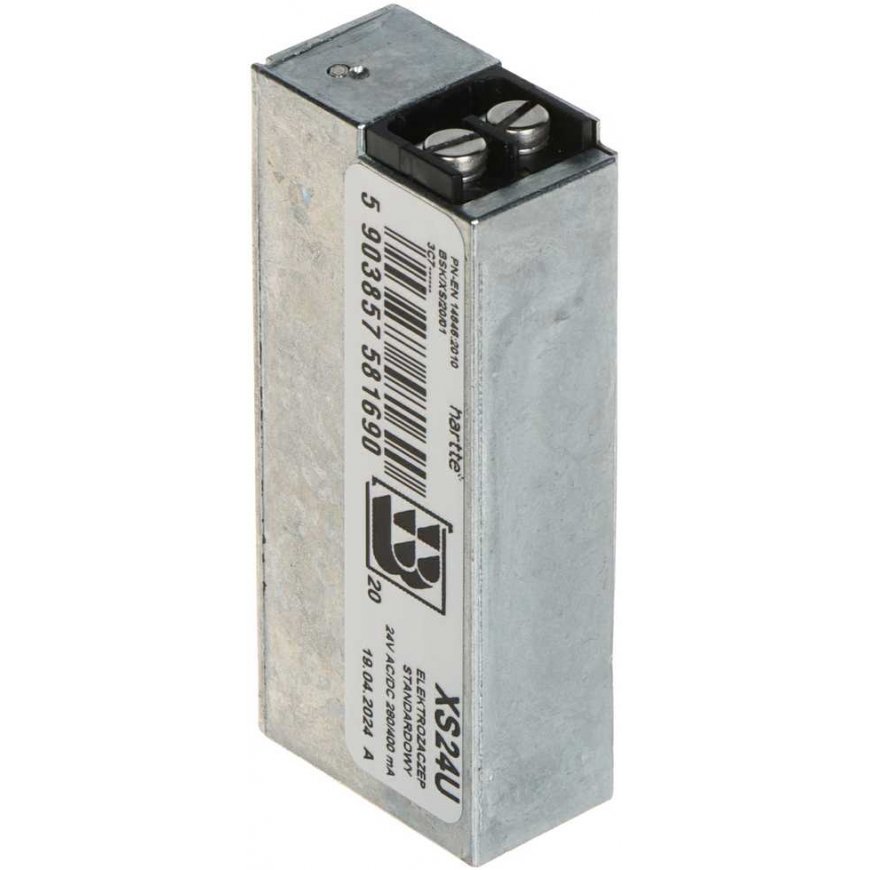

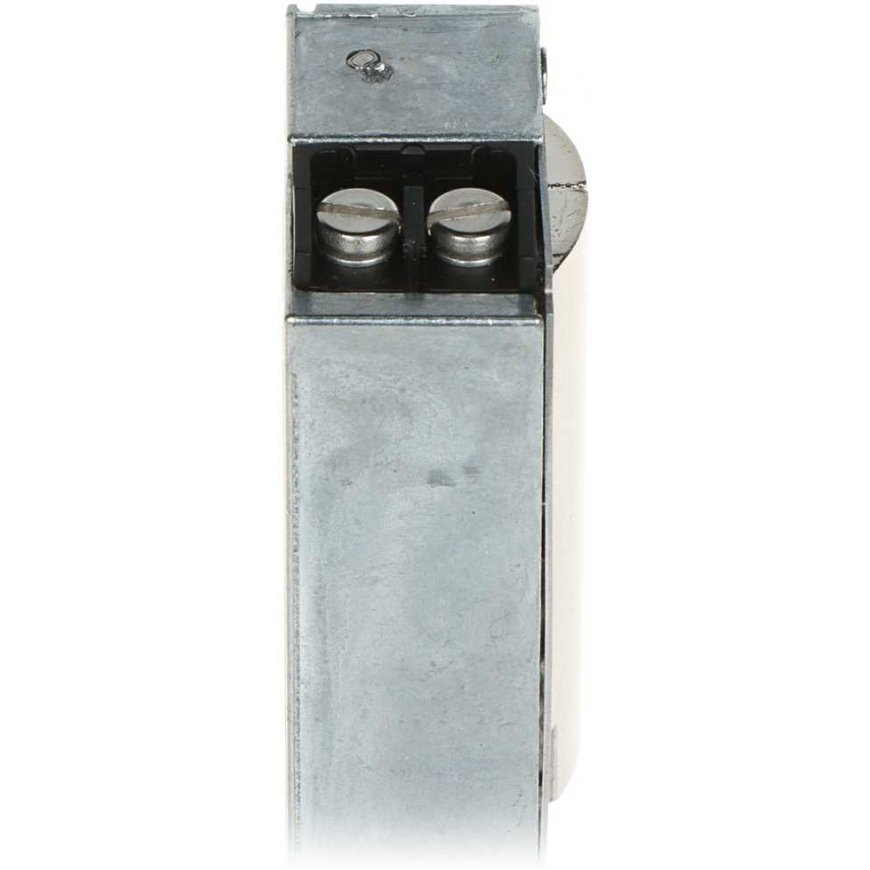

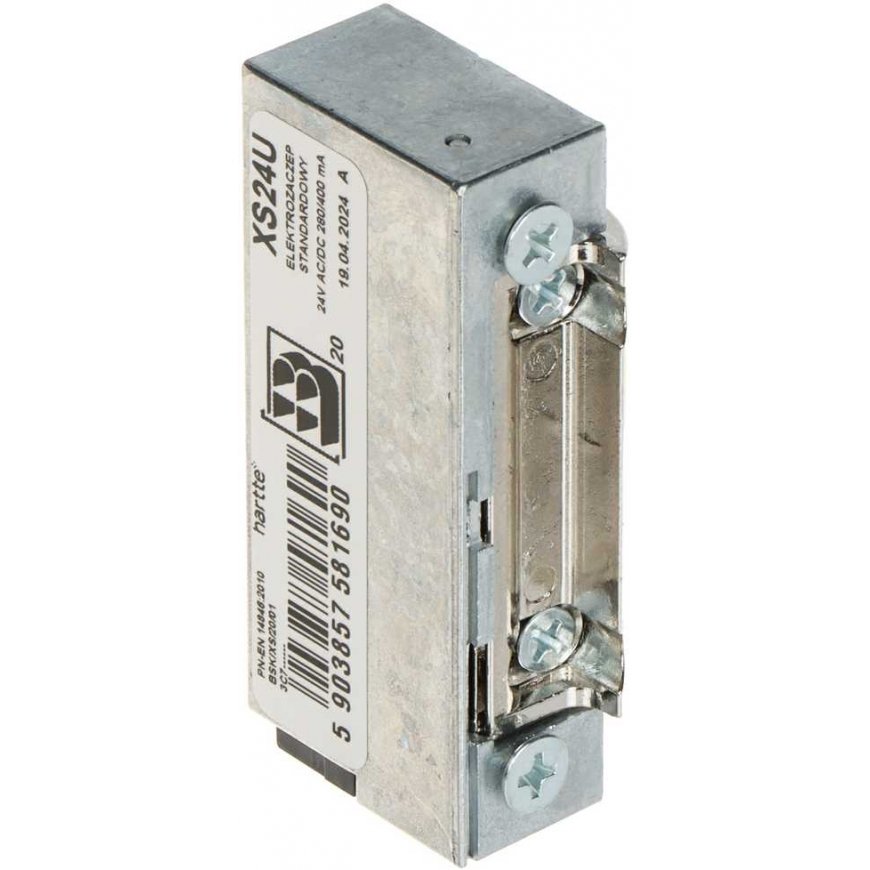

The Hartte electric strikes XS-series are narrow (only 16.2 mm wide) and have a small dimension enabling mounting in narrow profiles and door frames.
They are built symmetrically - fit perfectly to left and right doors of various types.
Radius latch (it is not outstanding out of electric strike outline) and adjustment in the range of 3.5 mm requires less punching, and making installation easier and quicker.
| Rated voltage : | 21 ... 26 V AC , 20 ... 26 V DC |
| Current consumption : | 280 mA @ 24 VAC 400mA @ 24V DC |
| Usage : | right door / left door |
| Nutcracker blocker : | - |
| Memory function : | - |
| Reverse work : | - |
| Freedom adjustment : | 3.5mm |
| Permissible door load acting on the lock : | 3000 N |
| Permissible duration of continuous operation : | - |
| Main features : | Symmetrical housing Narrow profile : 16.2 mm, Operating mode : NC Resistance : 60 Ω Number of opening cycles : 200000 Radial shape of the latch - when opening the latch is not going beyond the outline of electric strike |
| Weight : | 0.136 kg |
| Dimensions : | 16.2 x 28 x 67 mm |
| Manufacturer / Brand : | BIRTHDAY |
| Warranty : | 2 years |
