The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

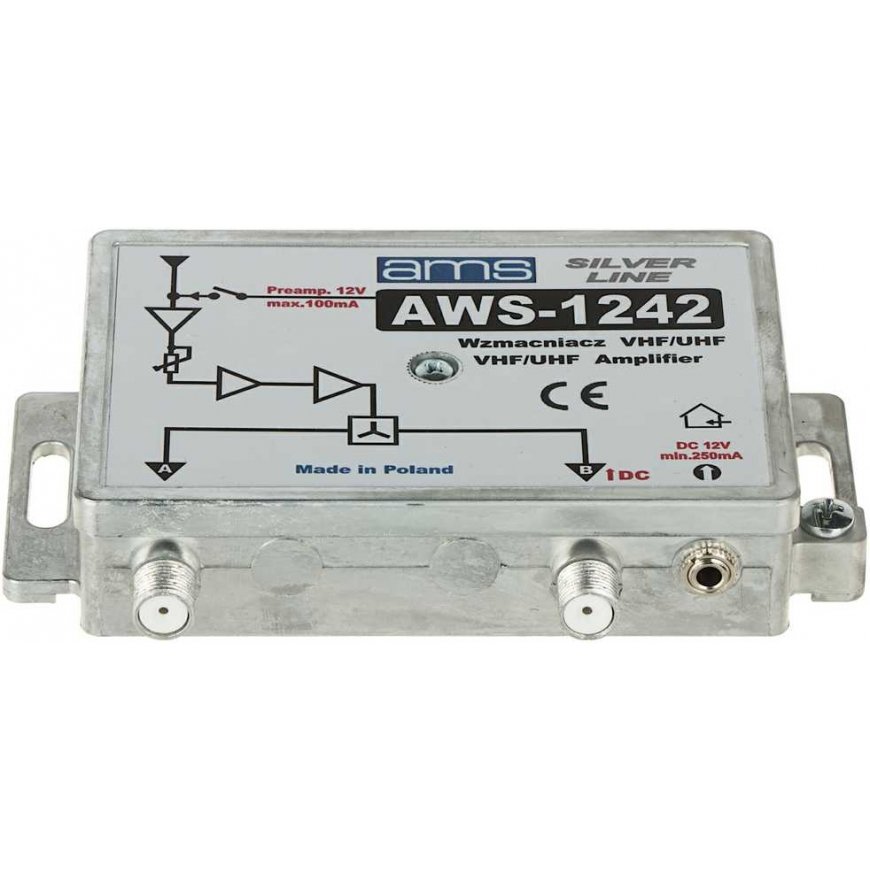

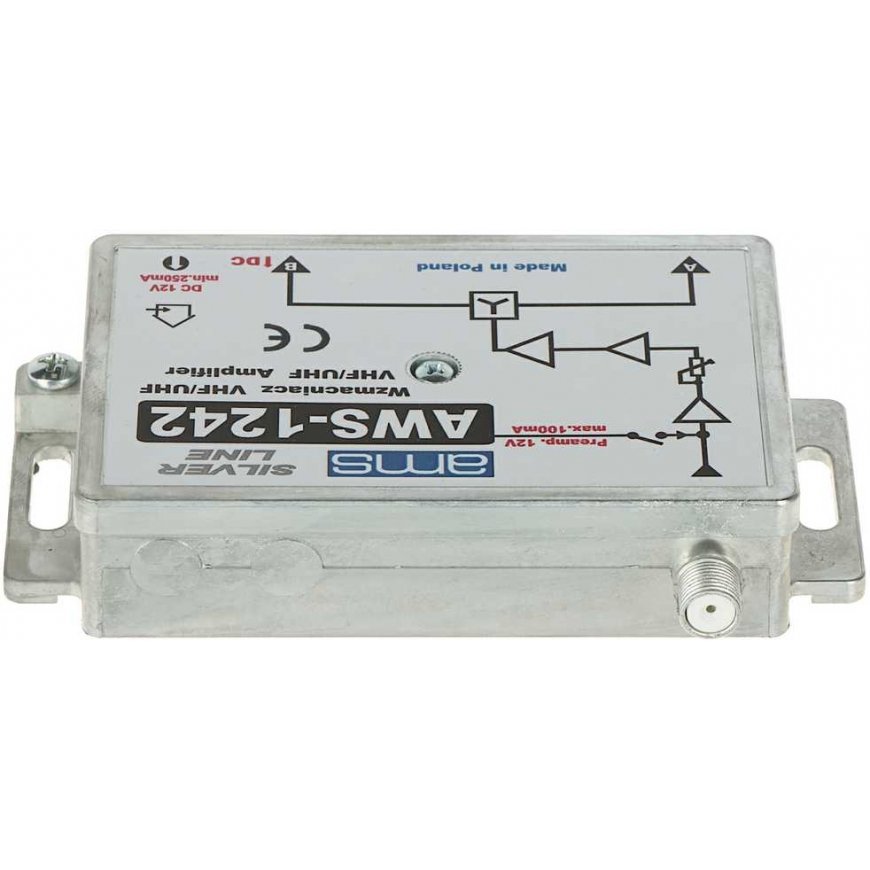

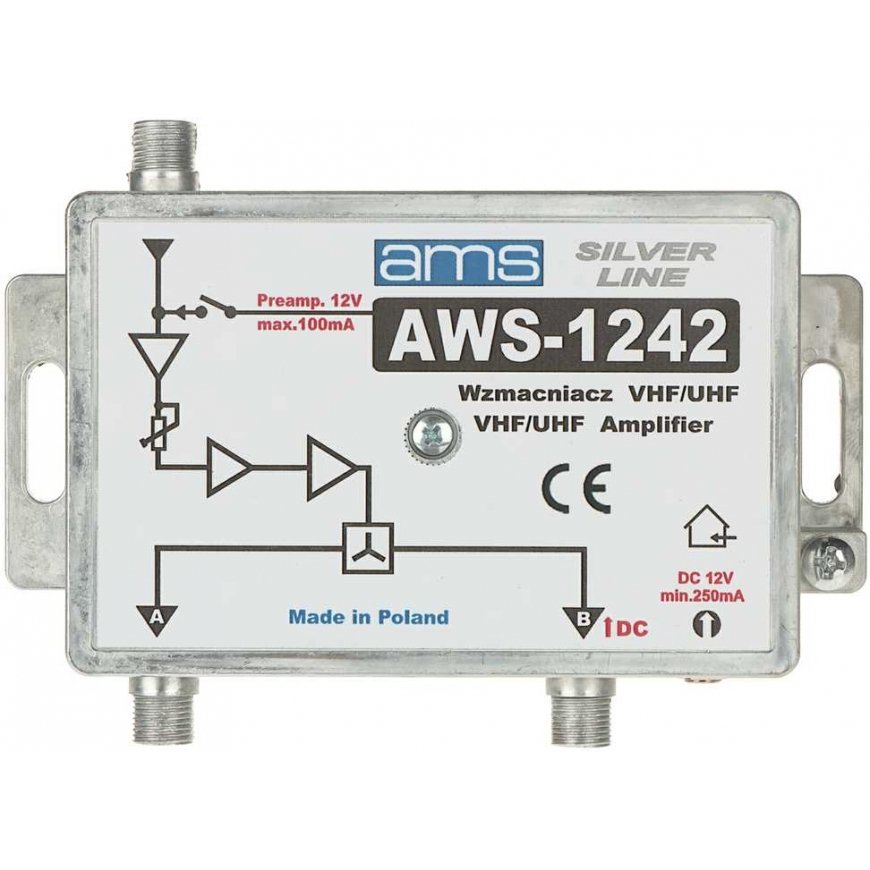

ANTENNA AMPLIFIER AWS-1242 AMS
60,12 €
59,78 €
Monthly payment from 2.44 €
3612611 AWS-1242
5902887073861
Shipping 1-14 b.d.
You are interested in this product?
| Frequency range : | 87MHz ... 790MHz |
| Number of inputs/outputs : | 1 / 2 |
| Input/output impedance : | 75 Ω |
| Connector type : | "F" |
| Strengthening : | 25 / 28 dB ± 2 dB |
| Gain adjustment : | 0 ... 12 dB ± 1 dB |
| Sound/noise ratio : | ≤ 4dB |
| Maximum output level : | 105 dBµV (2kTV) |
| IMA3 60dB : | 99 dBµV |
| IMA2 60dB : | 86 dBµV |
| Reflection : | ≥ 10 dB |
| Preamplifier power supply : |  |
| Main features : | Built-in bandpass filter 87 ... 790 MHz |
| Working temperature : | -25°C ... 55°C |

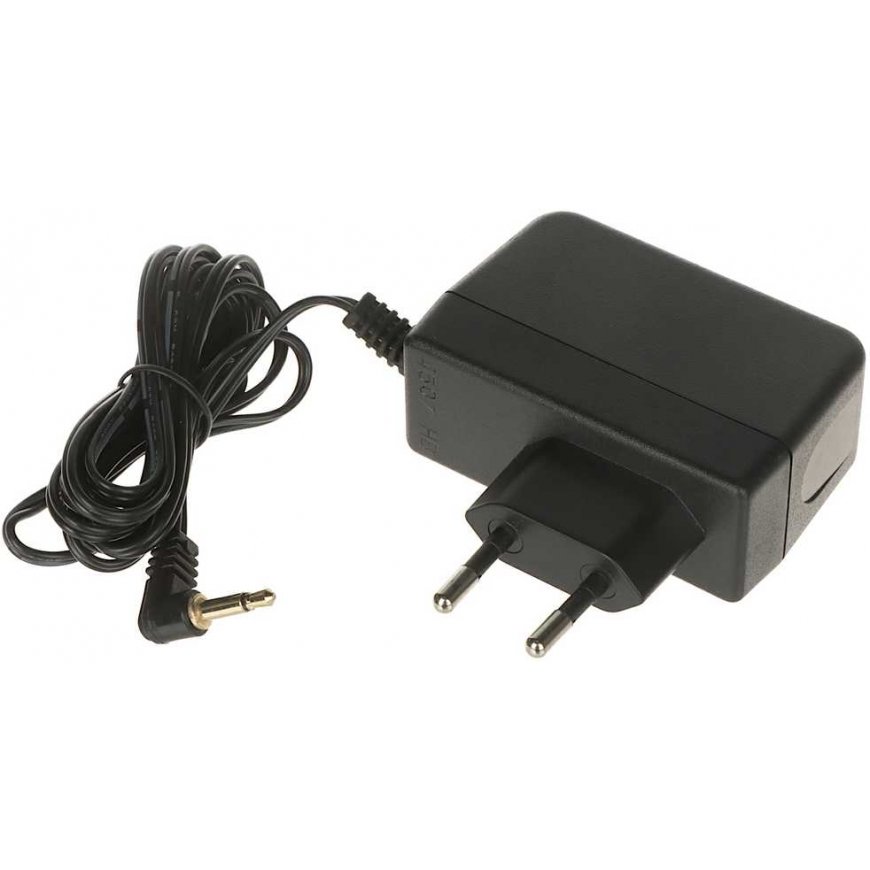

| Power supply : | 12 V DC / 250 mA (power supply included) |
| Weight : | 0.3 kg |
| Dimensions : | 125 x 88 x 26 mm |
| Manufacturer / Brand : | AMS |
| Warranty : | 3 years |
