UPS POWER SUPPLY AT-UPS1500S-RT-RACK 1500 VA EAST
3612153 AT-UPS1500S-RT-RACK
5904194150846
Shipping 1-14 b.d.
The UPS AT-UPS1500S-RT-RACK is equipped with many advanced technologies that ensure active monitoring of the power supply network.
The device is mounted in a RACK 19" cabinet.
The device is an online power supply and ensures advanced operation mode completely independent of the external power supply network. Thanks to this, it completely isolates interconnected devices and performs its preventive function against phenomena contributing to dynamic changes in network parameters. These power supplies generate current transmitted from a battery, which is constantly charged.
The device works with power supplies with active power factor correction (APFC).
| Power supply type : | Online |
| Active power : | 1200W |
| Apparent power : | 1500 VA |
| Input voltage : | 230VAC ± 25% |
| Input frequency : | 50 / 60 Hz (automatic detection) |
| Output voltage : | 230 V AC ± 10 % (pure sine wave) |
| Output frequency : | 50/60Hz ±1% |
| Tension adjustment : | - |
| Frequency regulation : | - |
| Switching time : | ≤ 10ms |
| Charging time (up to 90% level) : | 8 o'clock |
| Battery : | 2 x 12V/9Ah |
| Estimated battery life : | 41 minutes @ 100 W, 22 minutes @ 200 W, 15 minutes @ 300 W, 9 minutes @ 400 W, 6.5 minutes @ 500 W, 4 minutes @ 600 W, 2 minutes @ 700 W, 2 minutes @ 800 W, 1.5 minutes @ 900 W, 42 sec @ 1000 W |

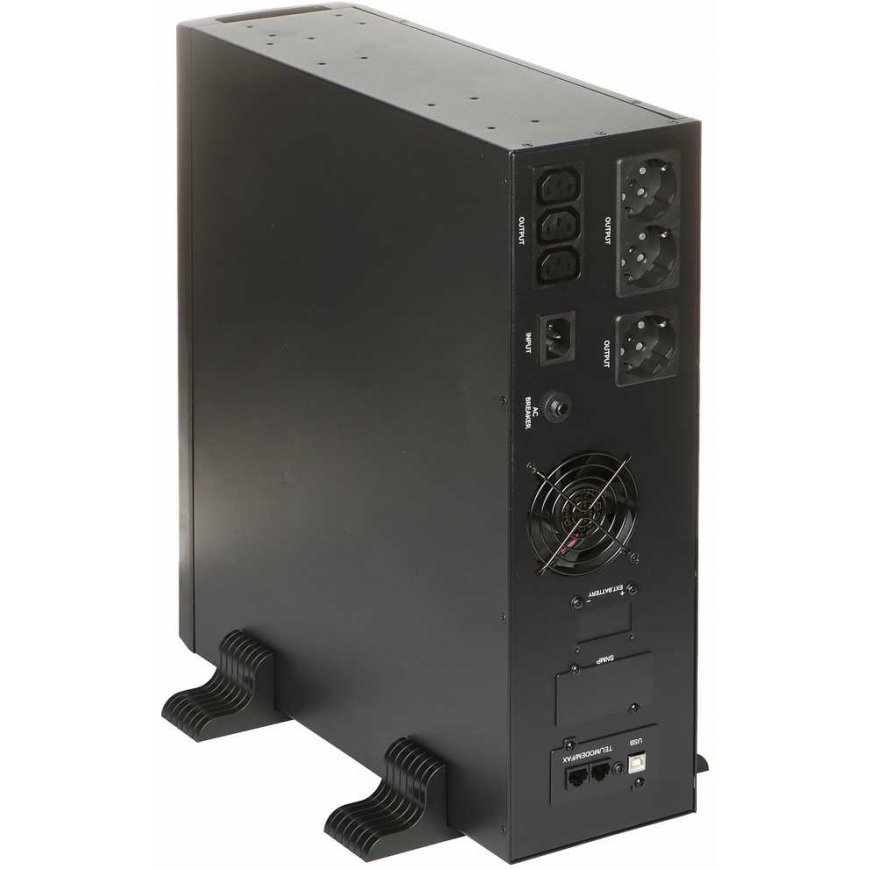

| Number of outputs : | 6 pcs. - 3 x CEE 7/3 (Schuko), 3 x IEC C13 |
| Management software : | UPSmart (Windows 95/98/2000/XP/Vista/7/8/10, Linux) |
| Protective measures : | Fuse From short circuit From overloads Surge protector - RJ45 Ethernet filter Overload protection discharge protection Initial voltage filtering Interference filter - EMI/RFI |

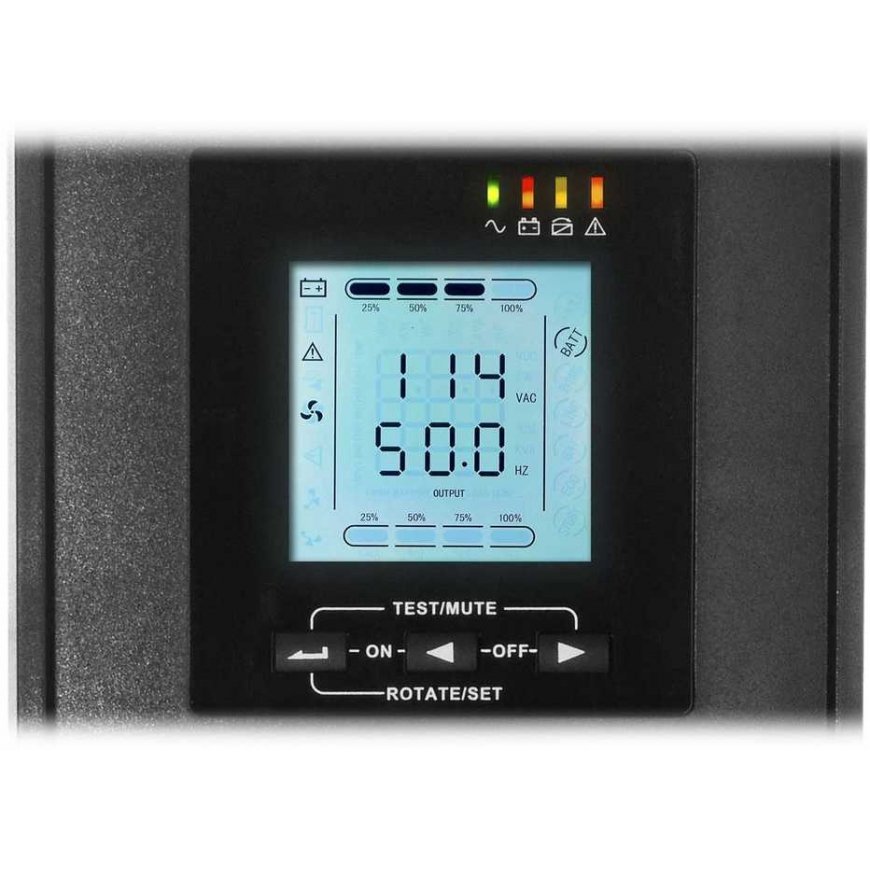

| Working status indication : | LCD display: operating mode, battery charge level, input/output voltage, overload indicator, LED diodes, Audible alarm |
| Main features : | Excellent microprocessor control for high reliability The COLD START function is for manual battery start-up Automatic voltage regulator AVR Battery power and maintenance control. 2 x RJ45 - Input / Output USB 2.0 port - Access from a PC Remote control - UPSmart application (included) Optical and acoustic signaling Built-in EMI, RFI filter Network card location Can be mounted in a 19" rack cabinet The device works with power supplies with active power factor correction (APFC) |
| Purpose : | surveillance systems data centers network, servers, workstations industrial equipment |
| Body type : | 2 in 1 (Rack / Tower) |
| Operating temperature/relative humidity : | 5 °C ... 40 °C / ≤ 93 % (non-condensing) |
| Weight : | 17.1 kg |
| Dimensions : | 440 x 132 x 410 mm; RACK 19", 3U |
| Manufacturer / Brand : | EAST |
| Warranty : | 2 years |
