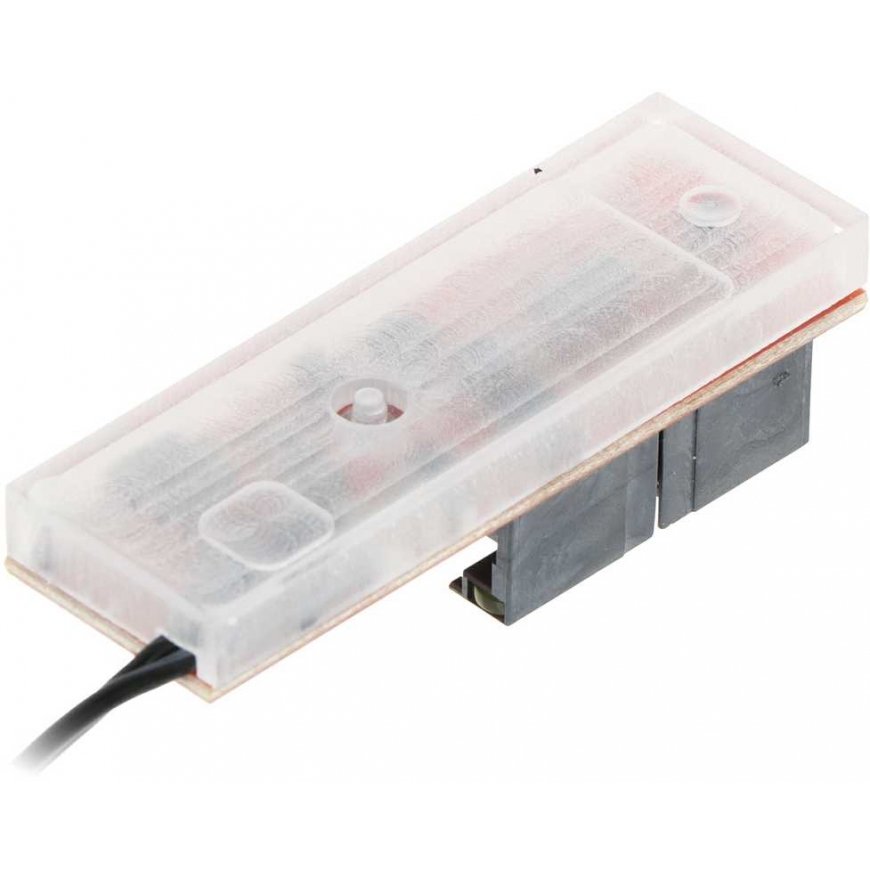

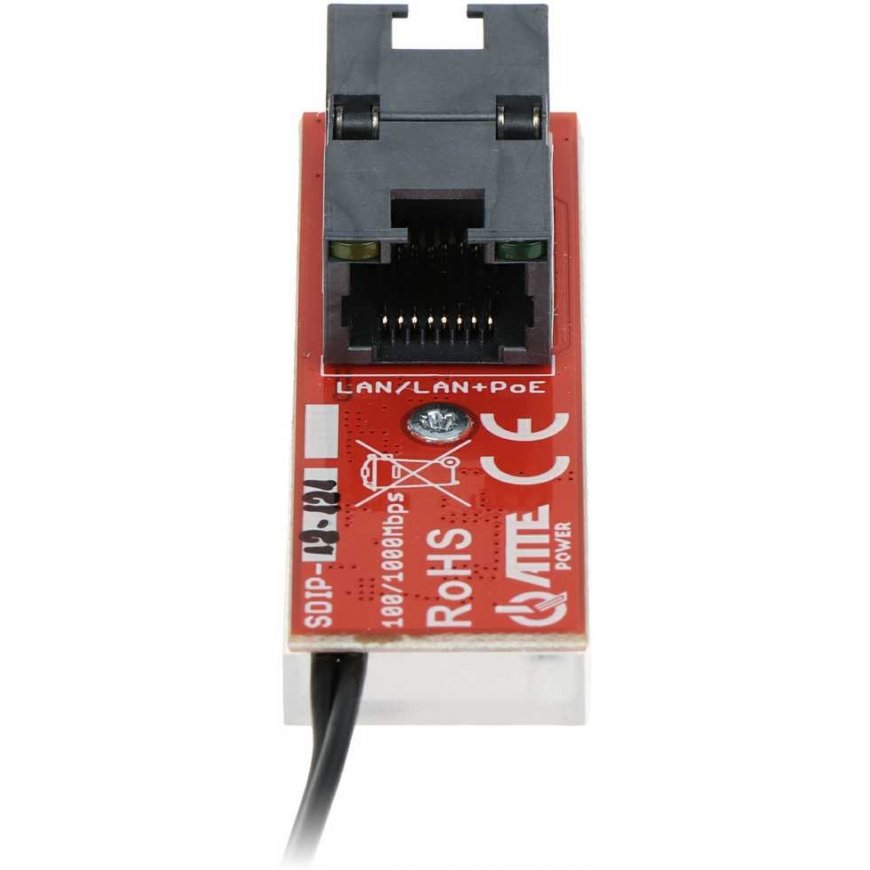

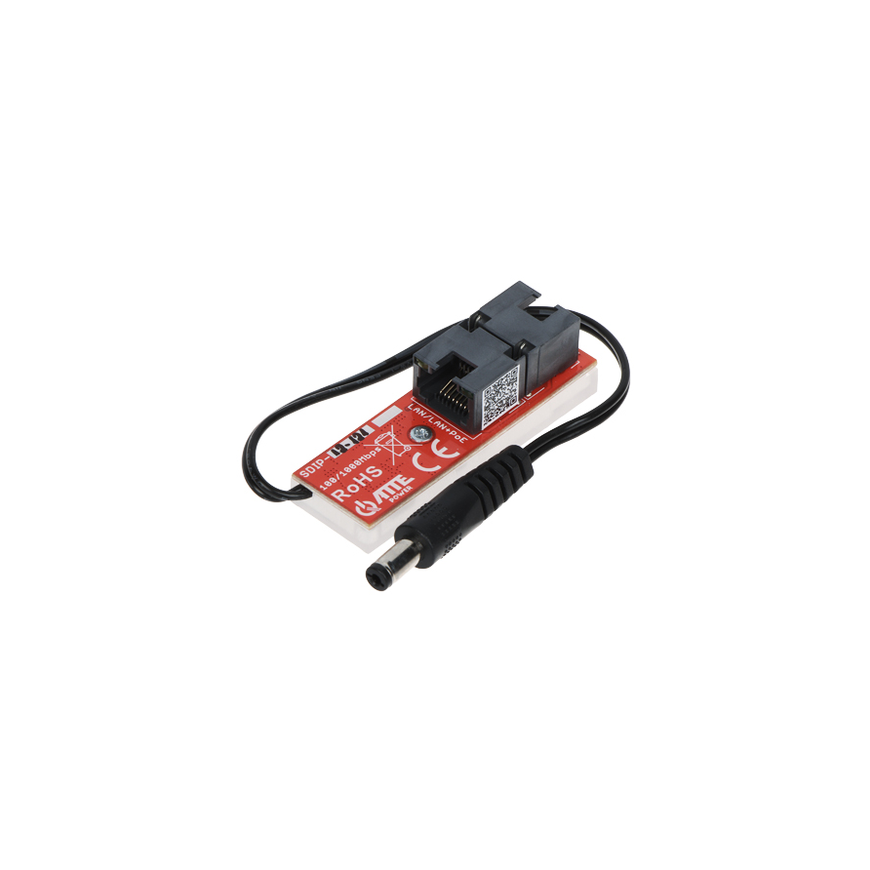

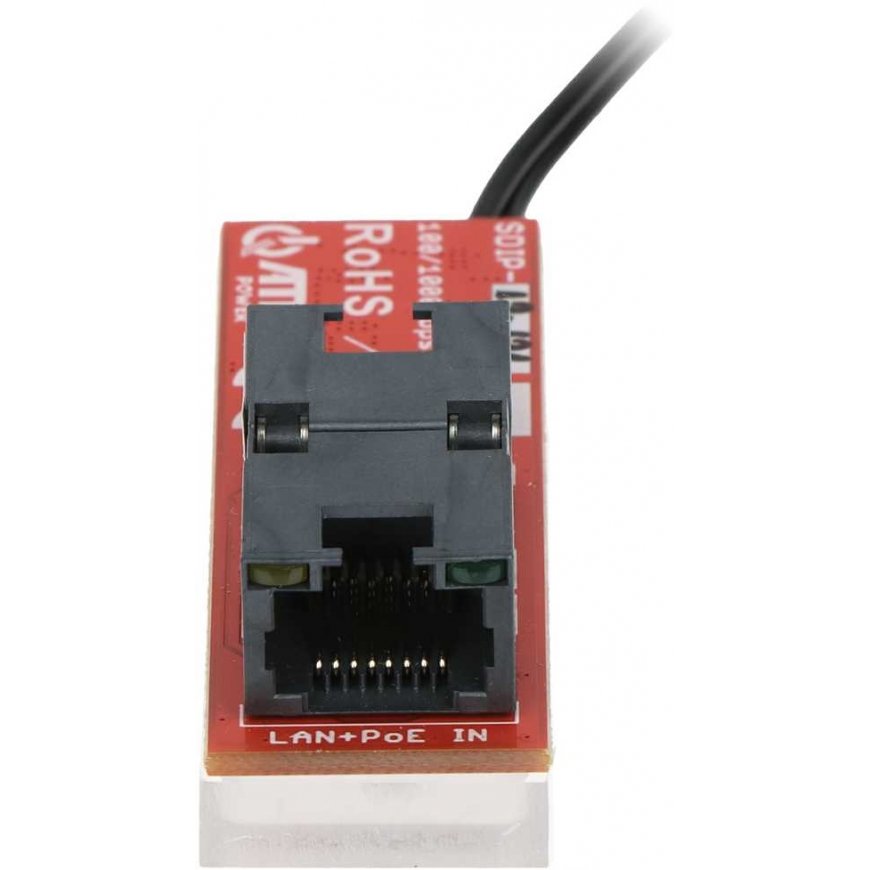

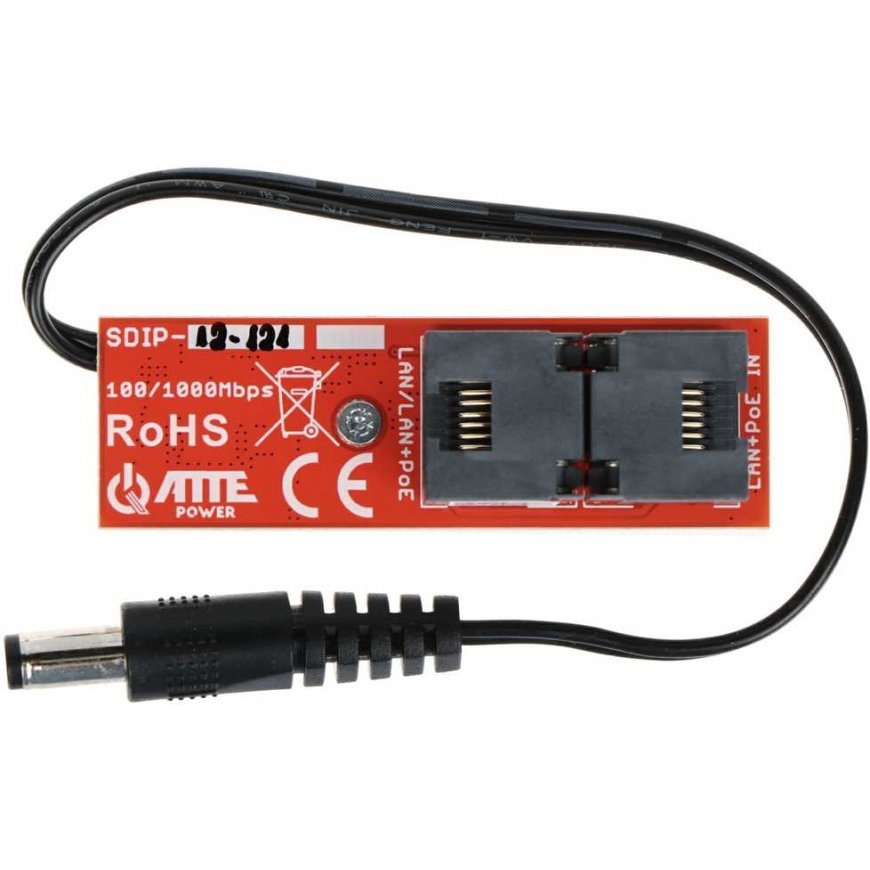

POWER ADAPTER POE SDIP-12-121 ATTE
39,00 €
Monthly payment from 1.90 €
3560904 SDIP-12-121
5902887093463
Shipping 1-14 b.d.
You are interested in this product?
The SDIP-12-121 gigabit adapter is a DC/DC converter that reduces voltage.
The device allows us to power devices with a nominal voltage of 12V using PoE 802.3 af or PoE PASSIVE 35-56V.
The device does not transmit PoE power through the RJ45 output, only the LAN transmission itself.
The main use of the adapter is to power devices such as a camera, door station with door opener, router, AccesPoint, which require 12V power.
The device can be powered by an 802.3af or PoE PASSIVE switch.
| Output power : | max. 12 W (total) |
| Number of inputs : | 1 pc RJ-45 |
| Input voltage : | 35 ... 56 V DC - PoE |
| Output voltage : | 12 V DC - 2.1/5.5 mm plug on the cable |
| Output current : | max. 1 A @ 12 V DC |
| Signaling diodes : | Output voltage presence alarm - DC OUT Power supply PoE - RJ-45 port |
| Main features : | LAN ports - 10/100/1000 Mbps Compatible with PoE (802.3af), Passive PoE PoE IN ("+/-": pin codes 1, 2; "+/-": pin codes 3, 6) or ("+/-": pin codes 4, 5; "+/-": pin codes 7, 8) Sealing class : IP20 |
| Protective measures : | Overcurrent (overload) - automatic return to normal operation mode after the emergency is over: 2 A Overvoltage: DC OUT Overvoltage |
| Body : | Plastic (polycarbonate) |
| Working temperature : | -25°C ... 50°C |
| Weight : | 0.02 kg |
| Dimensions : | 63 x 20 x 19 mm 15 cm (cable length) |
| Manufacturer / Brand : | ATTE |
| Warranty : | 3 years |
