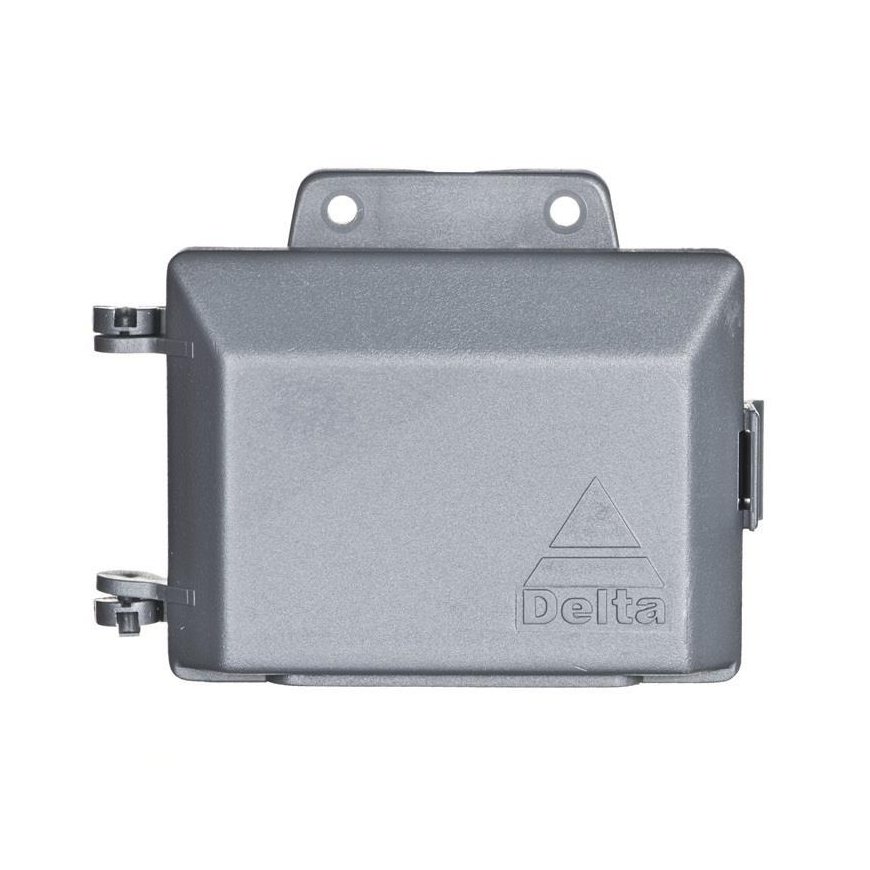

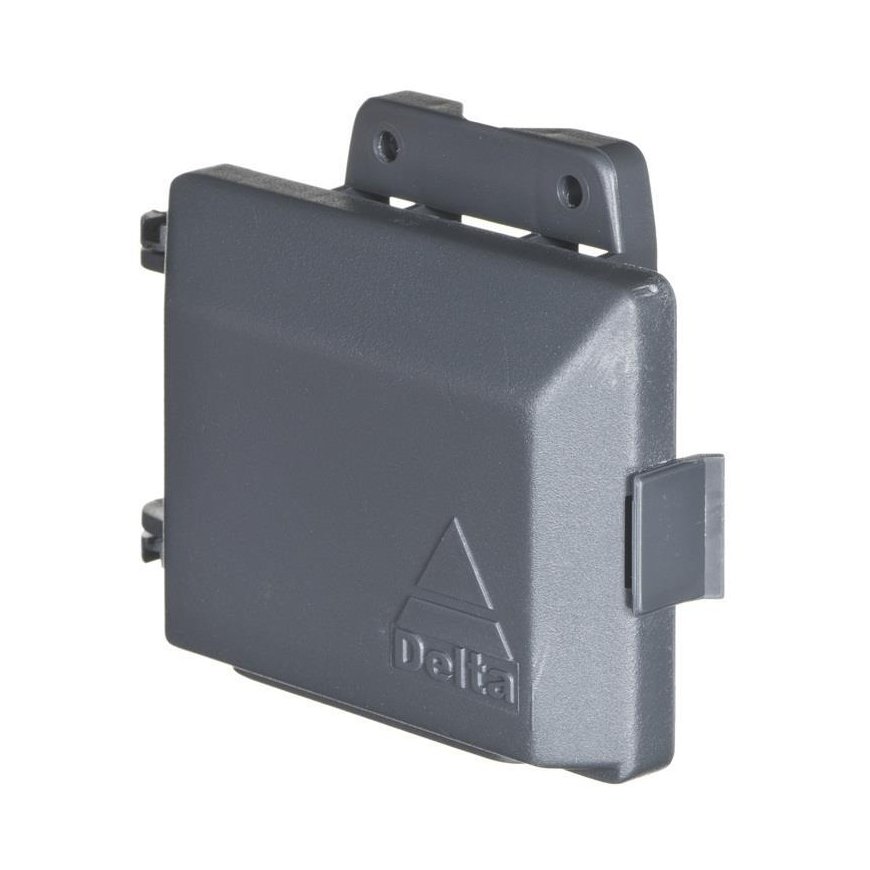

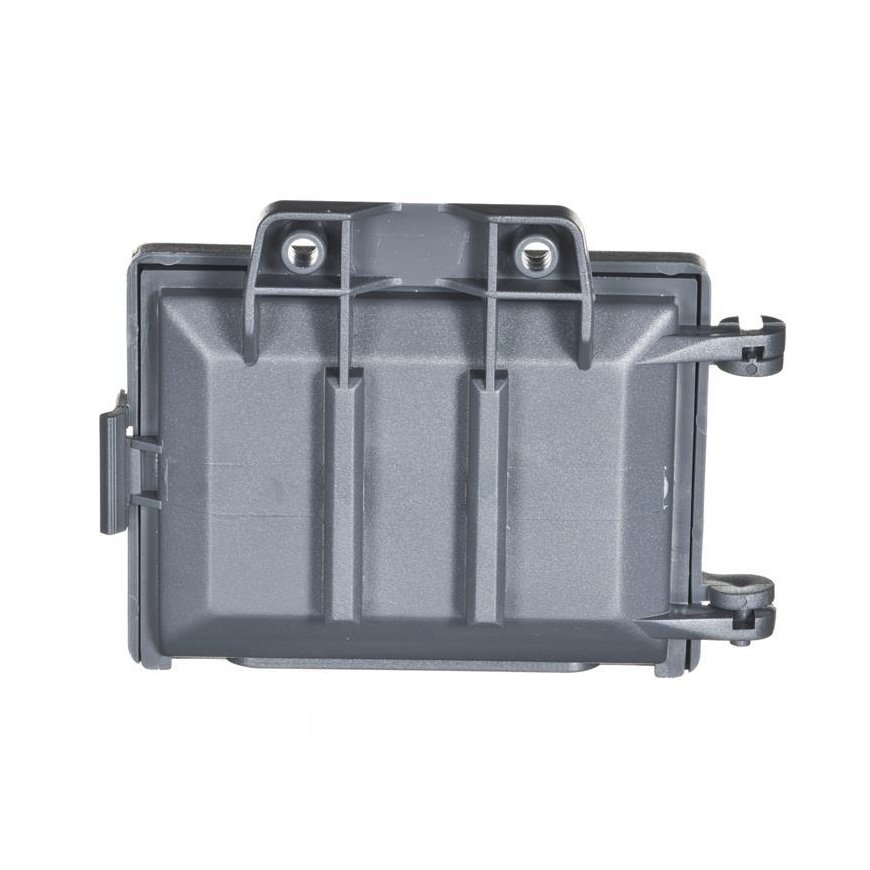

Delta POWER DISTRIBUTION LZ-8/POL
19,03 €
3062942 LZ-8/POL
5902887013317
This product is no longer in stock
You are interested in this product?

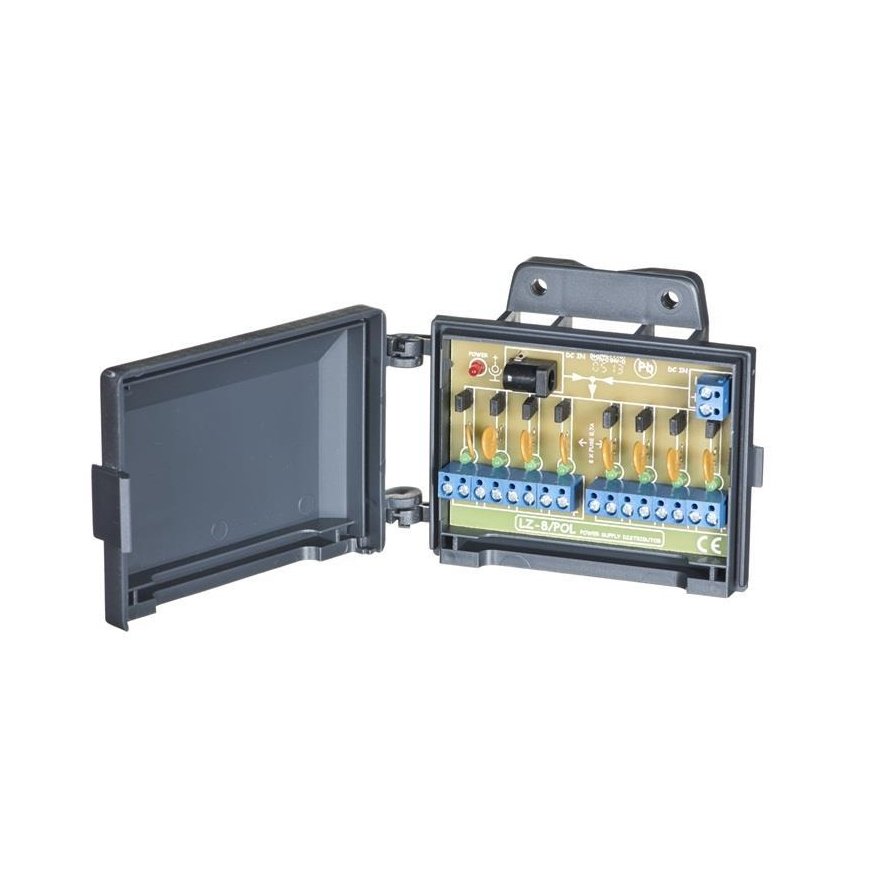

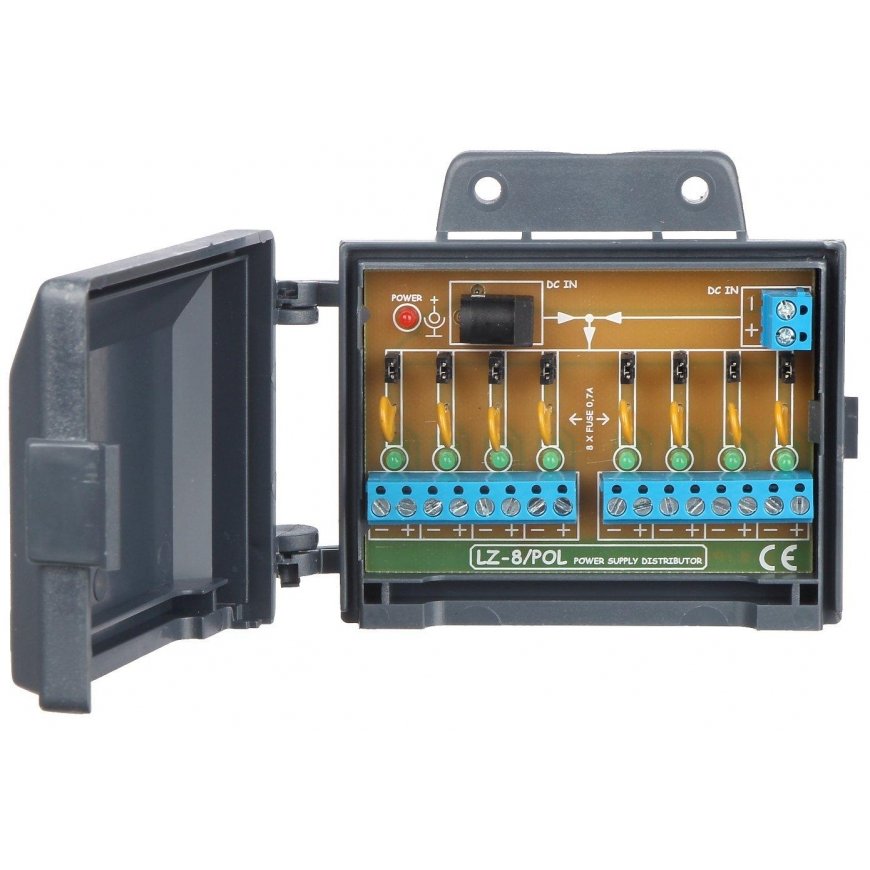

LZ-8/POL is a passive element and serves for power distribution.
An indisputable advantage of using LZ-8/POL in surveillance systems with power from a central point is additional anti-sabotage protection.
Without individual protection for each current line, it is enough for an intruder to short-circuit a single cell to de-energize the entire system.
| Number of power inputs : | 2 |
| Number of power outputs : | 8 |
| Maximum supply voltage : | 0 ... 24 V DC (typically 12V) |
| Maximum supply current : | 5.6 A terminal strip 4 A 5.5/2.1 socket |
| Protection type : | 8 x 0.7 A Polymer fuse |
| Type of power connections : | Input: socket 2.1/5.5 mm / Cable terminals Output : Cable terminals |
| Working temperature : | -40 °C ... 45 °C |
| Permissible relative humidity of the environment : | < 95% |
| Dimensions : | 116 x 46 x 25 mm |
| Weight : | 0.08 kg |
| Manufacturer / Brand : | DELTA |
| Warranty : | Lifetime warranty |
