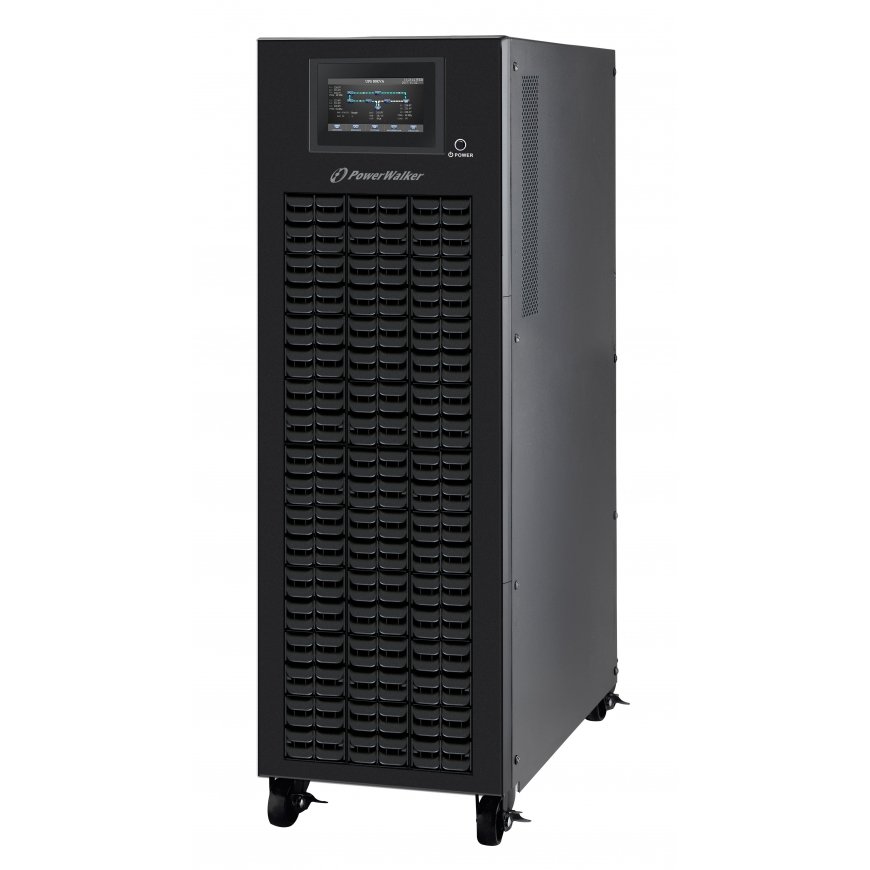

PowerWalker VFI 10K CPG PF1 3/3 BE uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W
2 749,01 €
Monthly payment from 71.69 €
2866421 10122147
4260074981278
2026-07-24
You are interested in this product?
The PowerWalker VFI CPG 3/3 PF1 series is a professional commercial solution built in double conversion technology with power factor 1.0. Equipped with three-level inverter topology, it results in high efficiency reaching 95.5% in Line Mode and even 98.5% in ECO Mode. The series ensures low harmonic distortions and precise voltage regulation (1%). All phases have Active Power Factor Correction. Thanks to its modern design, the VFI CPG series reaches a very high power density (kVA output in relation to the size/volume of the unit). All models of this series offer generator support, dual input and allow parallel operation up to three units. Each unit is equipped by default with SNMP Card to increase control over the unit and offer embedded monitoring over IP. For this model battery numbers can be adjusted (between 32 and 40pcs, except 10K unit), allowing more flexibility and compatibility with existing battery banks. The three stage extendable charging design also enhances battery performance over its life time. On demand we can modify unit to include isolation transformer or negative power absorber. For the convenience of operation, a touch panel has been added to the unit.
| Product colour | Black |
| USB 2.0 ports quantity | 1 |
| Display type | LCD |
| USB port | Yes |
| Form factor | Tower |
| Weight | 43 kg |
| Width | 250 mm |
| Depth | 627 mm |
| Height | 827 mm |
| Package weight | 63 kg |
| Number of batteries supported | 20 |
| Products per pallet | 3 pc(s) |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Battery voltage | 12 V |
| Efficiency | 95.5% |
| Noise level | 60 dB |
| Output power | 10000 W |
| Harmonized System (HS) code | 85078000 |
| Response time | 4 ms |
| Built-in fan | Yes |
| RS-232 ports | 1 |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Waveform | Pure sine |
| Input operation voltage (min) | 190 V |
| Input operation voltage (max) | 520 V |
| Input frequency | 46/64 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 400 V |
| Output frequency regulation | -0.1 - 0.1 Hz |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Number of input phases | 3 |
| Output voltage Total Harmonic Distortion (THD) | 4% |
| Input current Total Harmonic Distortion (THD) | 6% |
| Efficiency (ECO mode) | 98.5% |
| ECO mode | Yes |
| Output voltage regulation | -1 - 1% |
| Automatic Voltage Regulation (AVR) | Yes |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Emergency Power Off (EPO) connector | Yes |
