Elteco FUSE INSERT ETI-D01/4A 4 A 400 V gL/gG E14 ETI
13,79 €
13,78 €
2638098 ETI-D01/4A
3838895000495
Shipping 1-14 b.d.
You are interested in this product?
Fuse inserts are used to protect electromagnetic installations from overloading or short-circuiting.
All fuse inserts have fuse blow indicators which are visible through the nut after installation.
| Rated current : | 4 A |
| Nominal voltage : | 250 V DC , 400 V AC |
| Description of fuse : | gL/gG |
| Fuse socket : | E14 |
| Type : | D0 |
| Size : | D01 |
| Rated short-circuit duration : | 50000 A AC , 8000 A DC |
| Main features : | Low power and energy loss Low temperature rise High current short circuit limitation Stability of current-time characteristics and full selectivity of operation Selective cooperation with overcurrent circuit breakers |
| Body : | Ceramic |
| Weight : | 0.0059 kg |

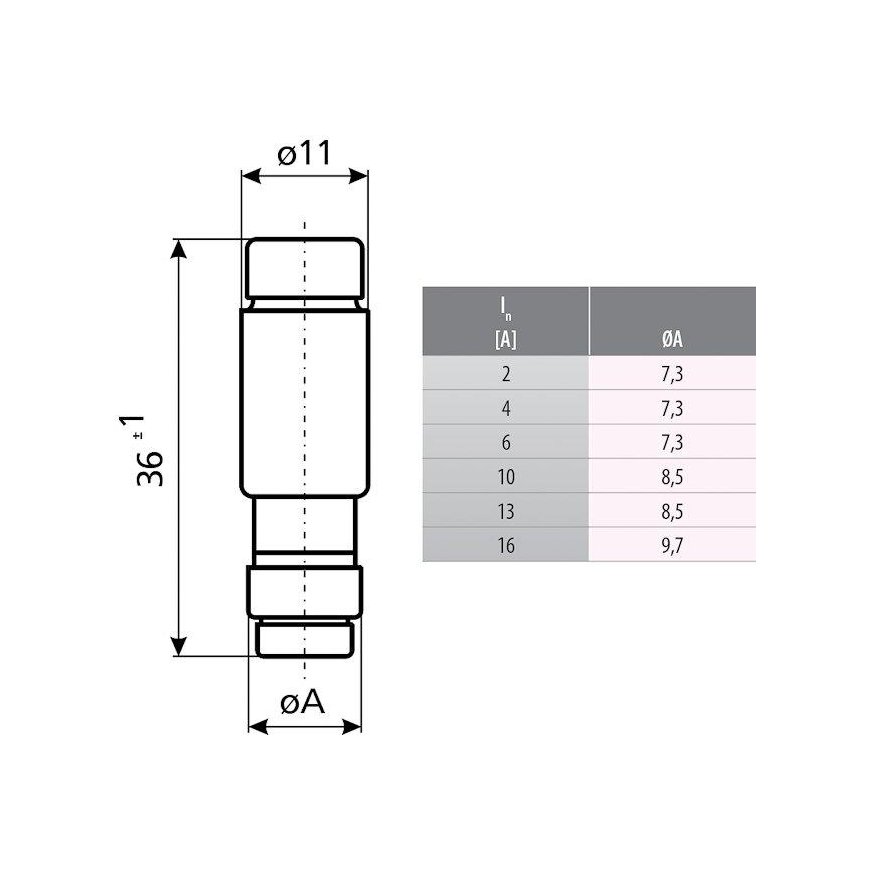

| Dimensions : | Ø 11 x 36 mm Ø 7.3 mm (A) |
| Manufacturer / Brand : | ETI |
| Warranty : | 2 years |
