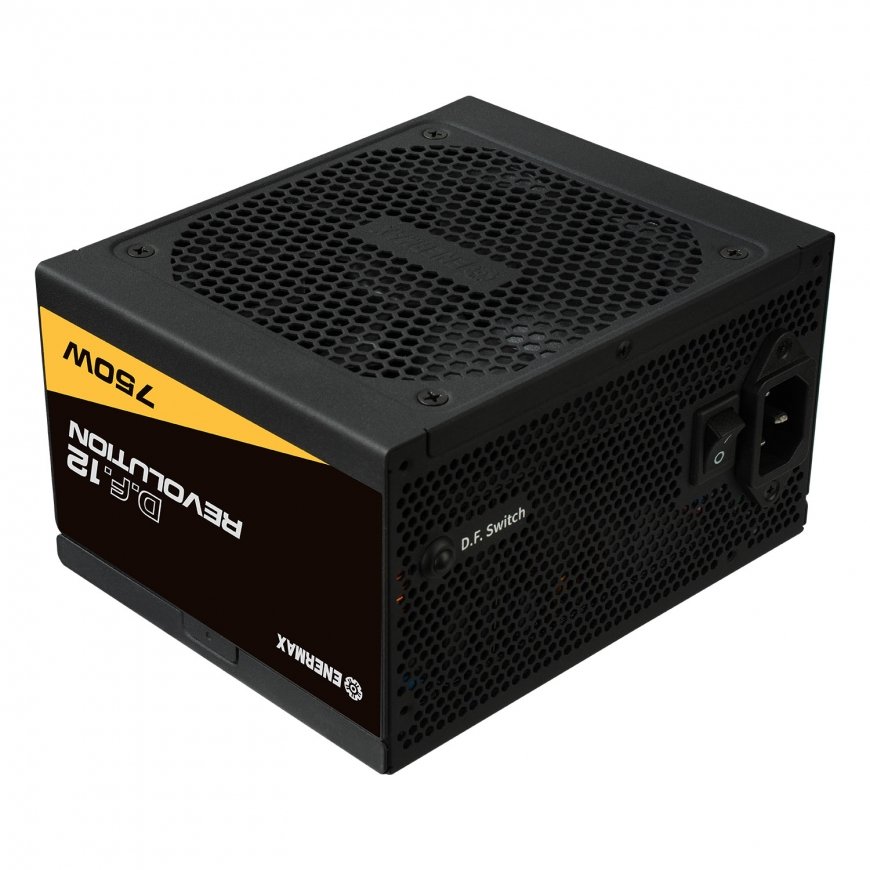

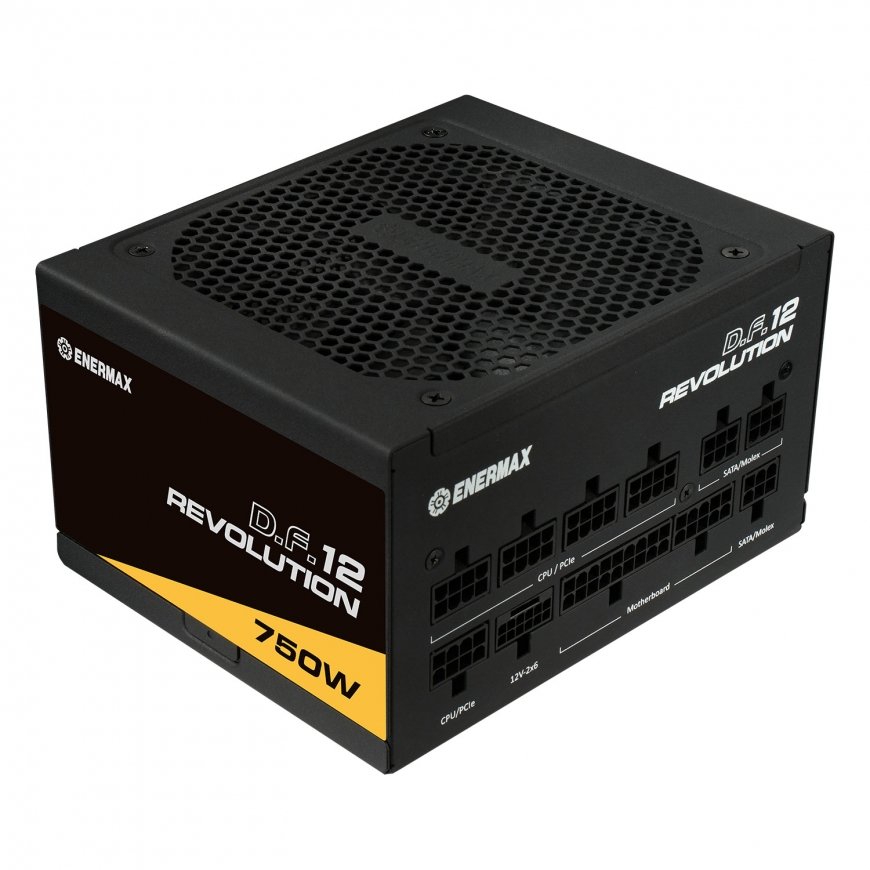

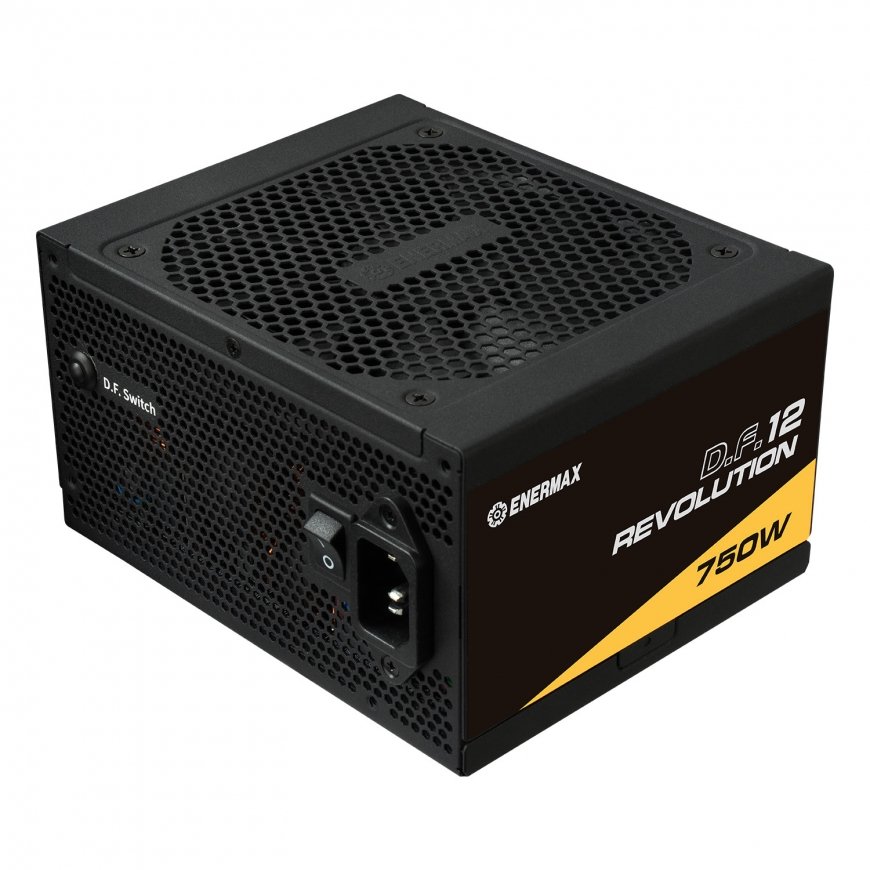

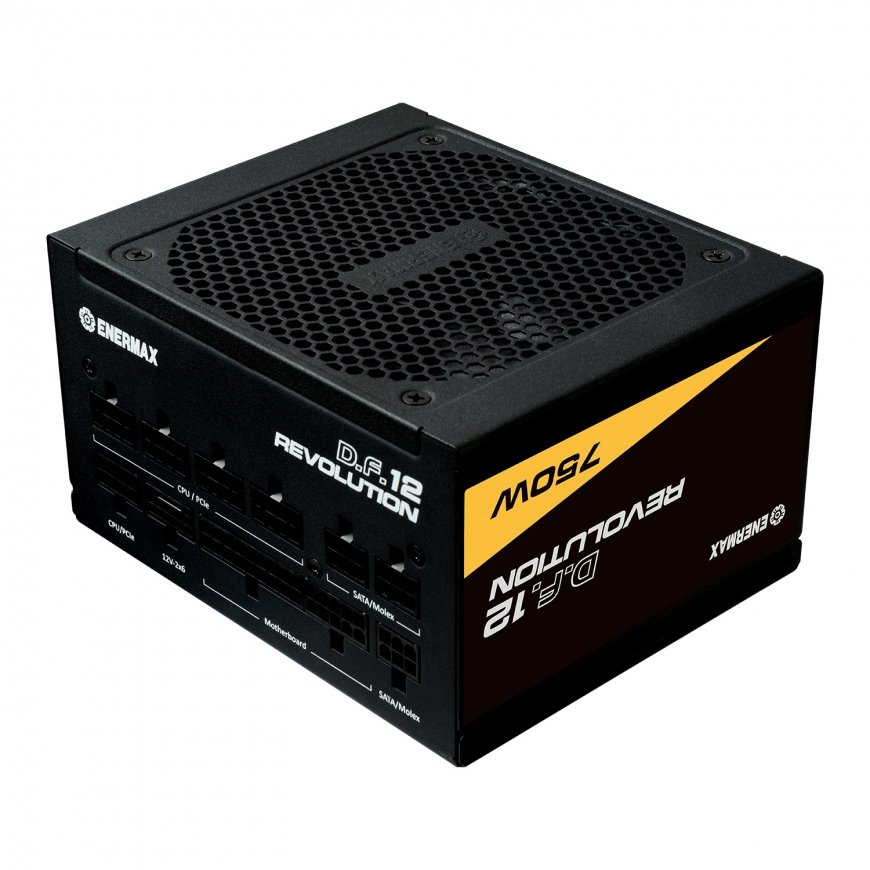

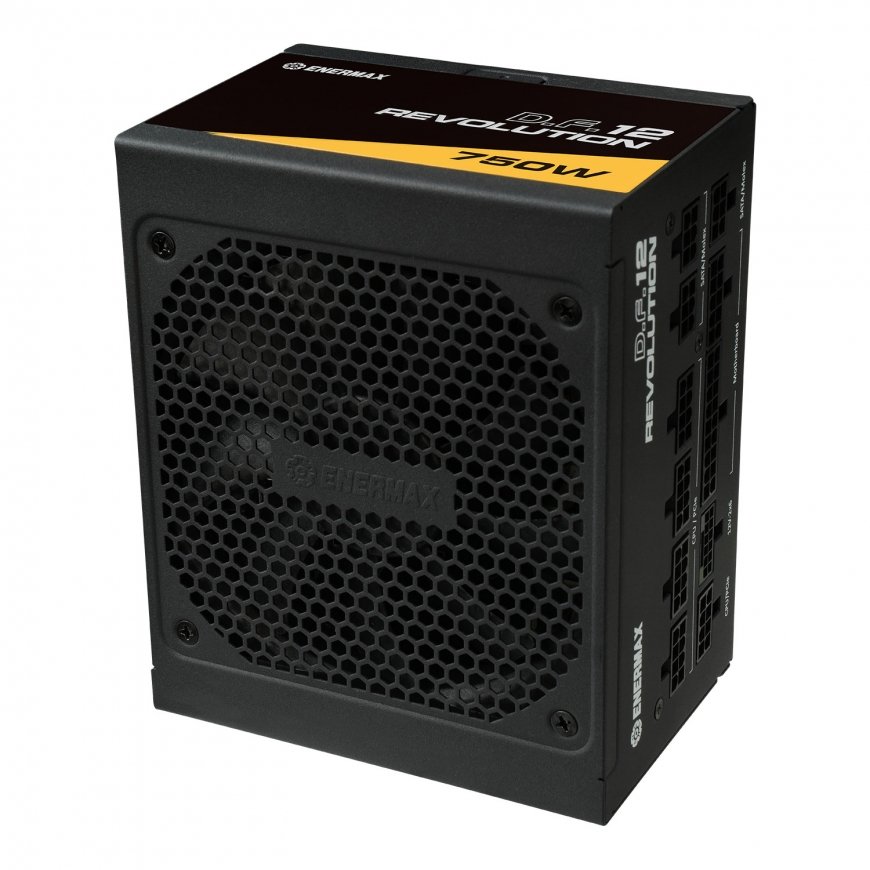

Enermax Revolution D.F.12 power supply unit 750 W 20+4 pin ATX ATX Black
138,76 €
Monthly payment from 4.47 €
2630093 ETV750G
4713157727916
2026-07-28
You are interested in this product?
The Smallest* ATX 3.1 ATX Power Supply in the Market
Aligned with the sustainable principle, The REVOLUTION D.F. 12 stands out as one of the smallest PSUs available in the market, boasting a 122mm in-depth, aiming to minimize the material waste of manufacturing and packaging by up to 28.7%. It is equipped with a built-in 115mm PWM fan featuring industrial-grade dual-ball bearings and a 6-pole motor for enhanced durability and efficient cooling.
SMALL SIZE, BIG BENEFITS
- Easily fit into your desired smaller PC cases.
- More space for effortless cable management.
- Keep the extra volume out of the way of airflow.
INTEL ATX 3.1 & 12V-2X6 CONNECTOR READY
The REVOLUTION D.F. 12 meets all the Intel ATX 3.1 standards, guaranteeing compatibility with contemporary hardware configurations. The native 12V-2x6 connector effortlessly channels up to 600W power, ensuring top-notch performance from high-end graphics cards.
PREMIUM MESH-SLEEVED CABLES
The power supply cables have been upgraded to premium mesh-sleeved cables to bring you better cable routing with their soft and bendable points for remarkable cable management. The included 27 pcs cable comb kit keeps your cables in good management and in good order.
PERFORMANCE EXCELLENCE
The REVOLUTION D.F. 12 is 80 PLUS® Gold certified with efficiency over 90% on standard loading. By wasting less energy, it reduces greenhouse gas emissions associated with electricity generation. It also produces less heat, leading to improved reliability and a longer lifespan for electronic components and devices.
The REVOLUTION D.F. 12 is designed to accommodate up to 235% power excursion, which means it can handle more than 2x its rated wattage for a short period of time, catering to your high-end graphics cards requirements and preventing the system from sagging power and possibly crashing the PC.
The REVOLUTION D.F. 12 incorporates 100% industrial-grade Japanese capacitors with high-quality materials and manufacturing processes, ensuring stable and consistent performance.
PATENTED DUST-FREE ROTATION (D.F.R.) TECHNOLOGY
The power supply fan boasts the ENERMAX’s patented Dust-free Rotation (D.F.R.) self-cleaning technology with a power-on activated switch next to the power switch, enhancing system longevity by minimizing dust accumulation.
Power | |
| Input current | 10 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Max output current (+12V1) | 70.8 A |
| Total power | 750 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 3 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| SATA power cable length | 450, 115 |
| Peripheral (Molex) power cable length | 450, 150 |
| CPU power cable length | 70 cm |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
Weight & dimensions | |
| Width | 122 mm |
| Depth | 150 mm |
| Height | 86 mm |
