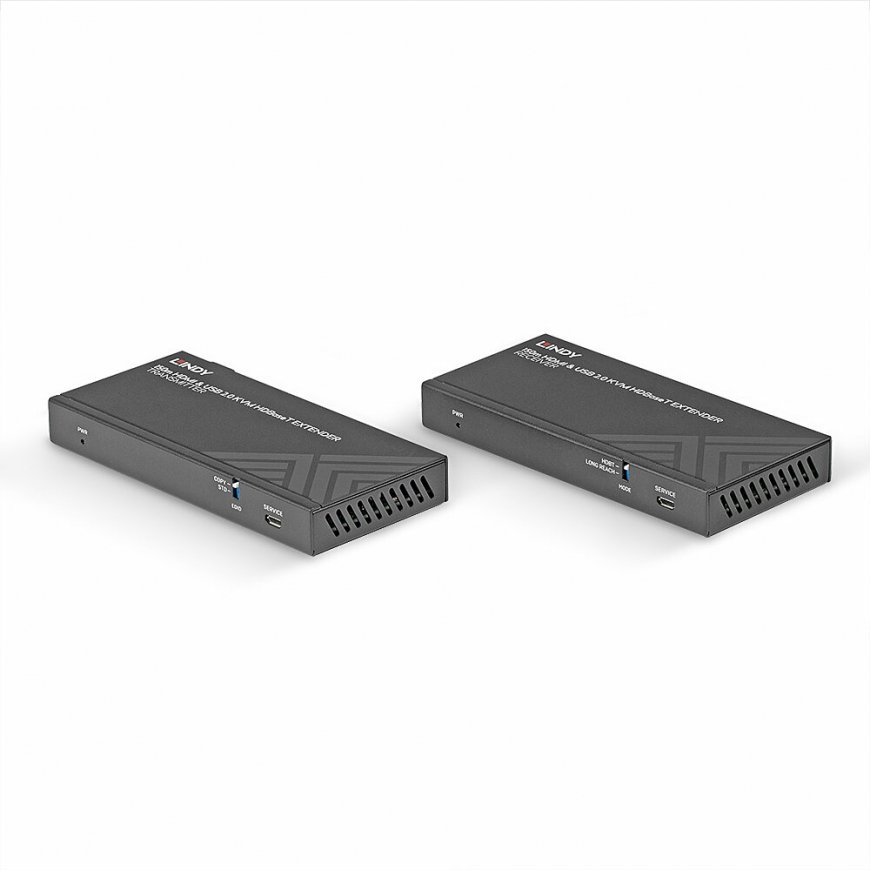

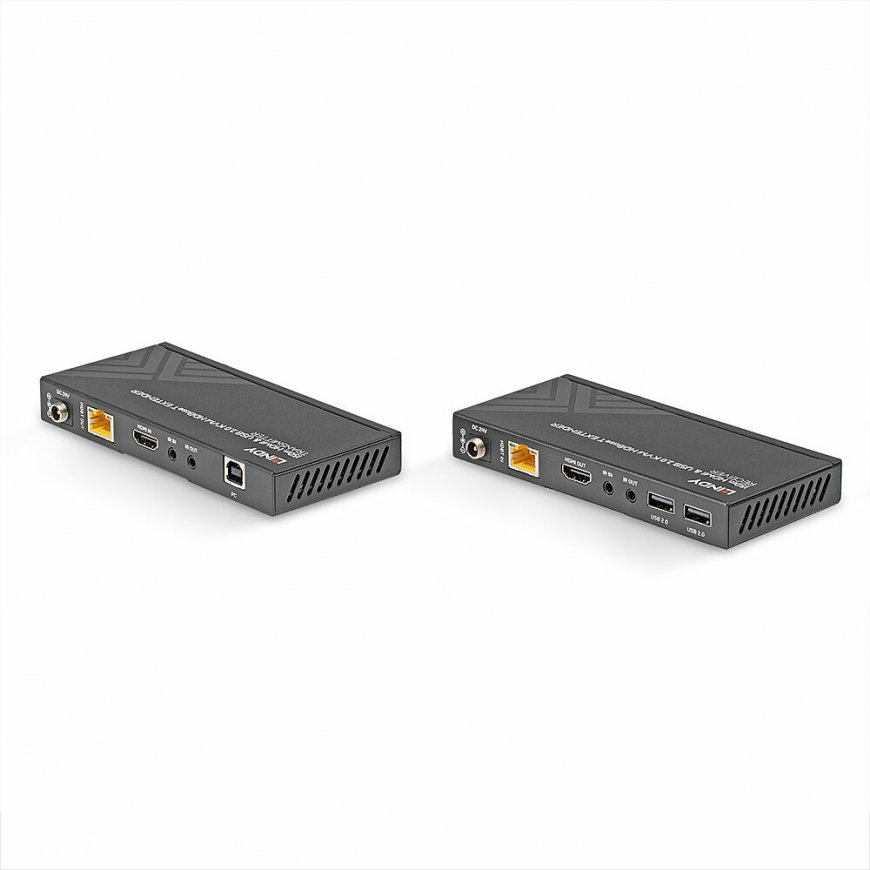

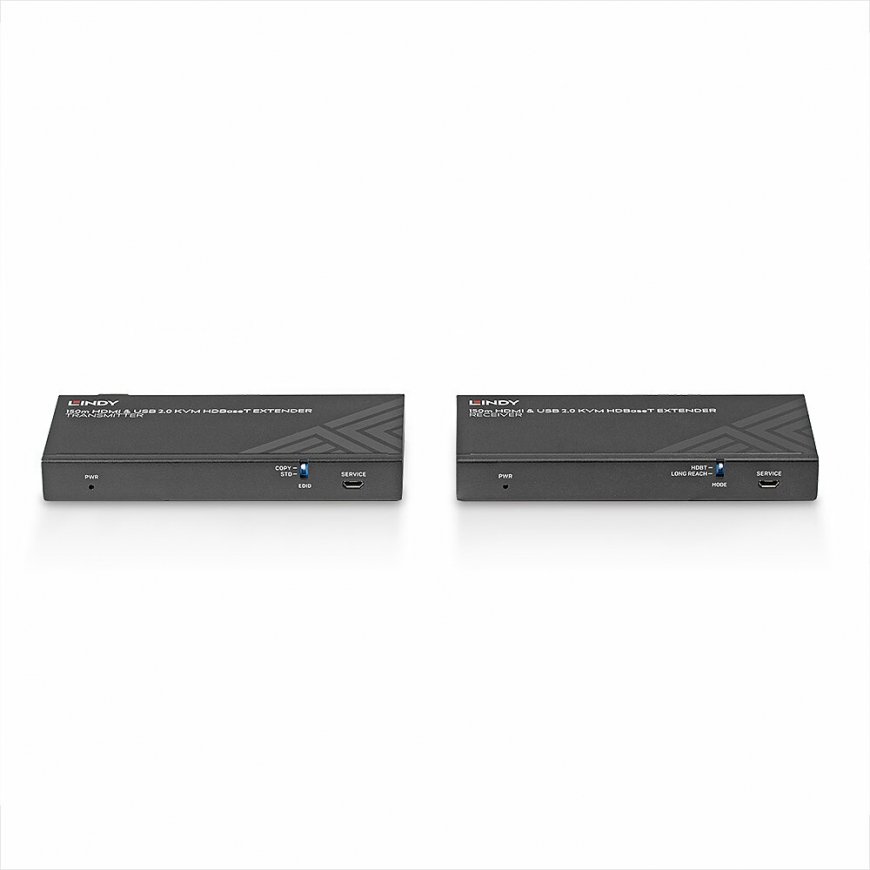

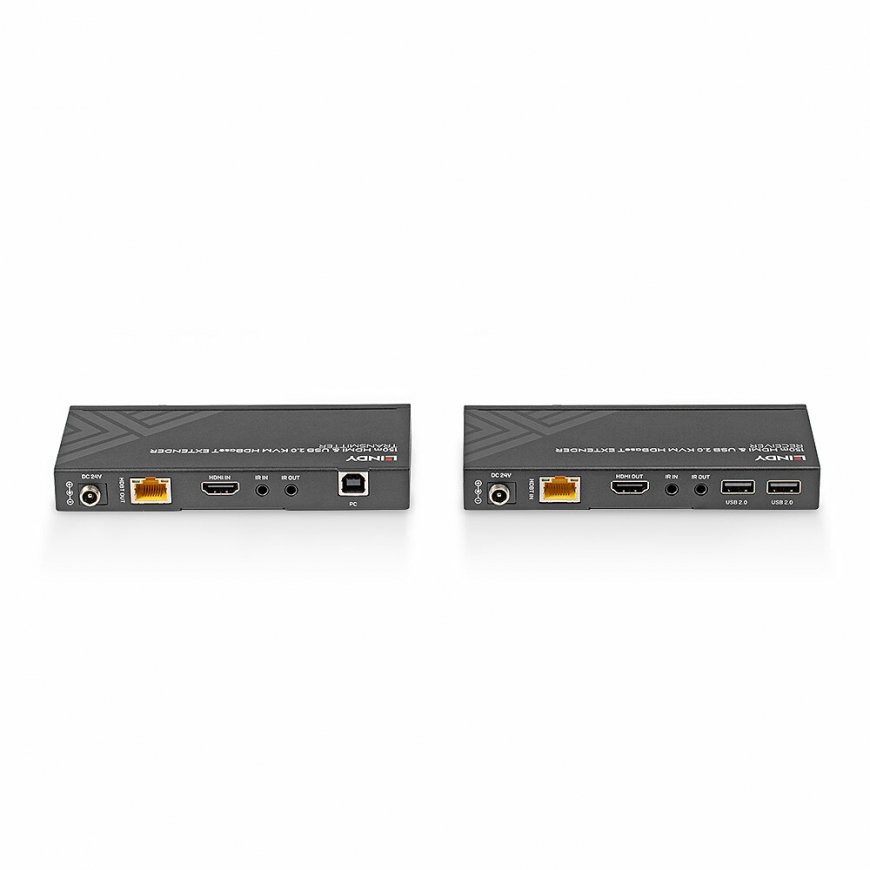

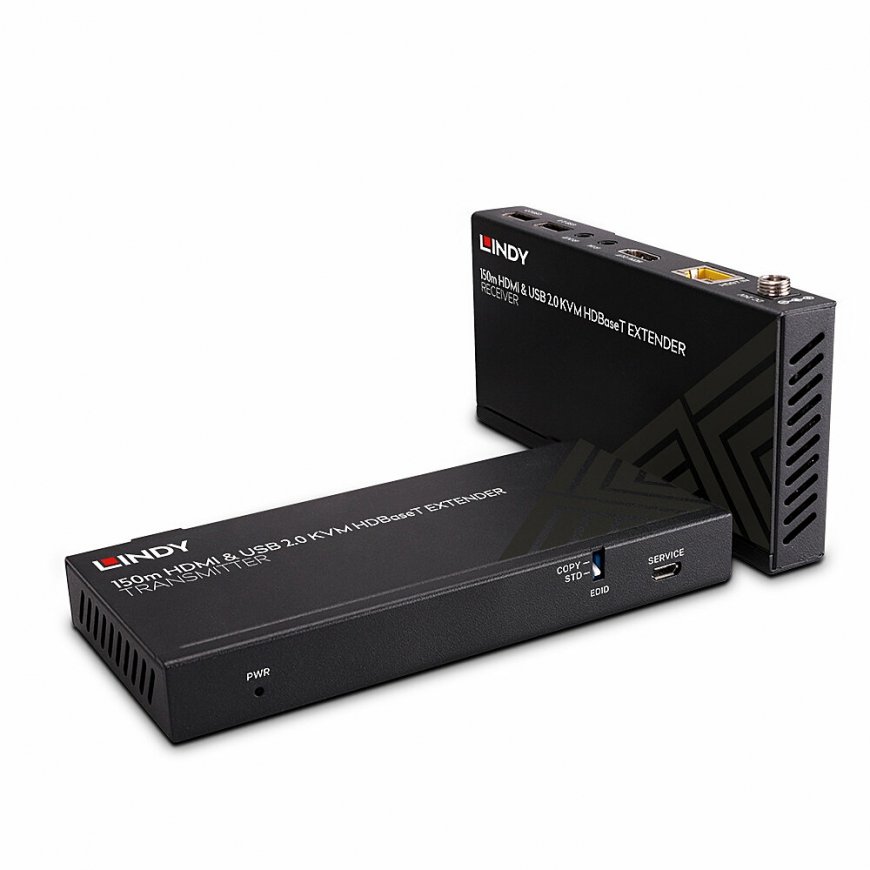

Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender
479,00 €
Monthly payment from 13.23 €
2616448 39384
4002888393843
2026-07-29
You are interested in this product?
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
Setting up HDBT mode, this extender supports USB 2.0 devices like mouse, keyboard, and other peripherals to be connected to the receiver to control a source device such as a PC or laptop or for data transfer while in Long Reach mode only USB HID devices are supported. Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT_ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
| Product colour | Black |
| Maximum refresh rate | 60 Hz |
| Cables included | USB Type-A to USB Type-B; IR |
| Type | Transmitter & receiver |
| Material | Metal |
| Package width | 245 mm |
| Package depth | 185 mm |
| Package height | 75 mm |
| Package weight | 1.02 kg |
| Connectivity technology | Wired |
| Manual | Yes |
| Chipset | VS010-A0 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| DC-in jack | Yes |
| Maximum digital resolution | 3840 x 2160 pixels |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| HDMI version | 2.0 |
| HDCP | Yes |
| Screws included | Yes |
| Receiver weight | 790 g |
| HDCP version | 2.2 |
| Supported resolutions | 3840 x 2160; 1920 x 1080 |
| Bandwidth | 18 Gbit/s |
| Remote (IR) input | 2 |
| Included power plug types | EU; UK; US; AU |
| Cable types supported | Cat6 |
| Maximum transfer distance | 150 m |
| Sustainability compliance | Yes |
| Remote (IR) output | 2 |
| Extended display identification data (EDID) | Yes |
| Colour depth | 12 bit |
| Transmitter weight | 790 g |
| Receiver width | 14 cm |
| Receiver depth | 6.5 cm |
| Receiver height | 1.8 cm |
| Receiver local video port type | HDMI |
| Power consumption (transmitter) (max) | 13.2 W |
| Power consumption (receiver) (max) | 13.2 W |
| Transmitter width | 14 cm |
| Transmitter depth | 6.5 cm |
| Transmitter height | 1.8 cm |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| Transmitter local video port | Yes |
| Transmitter local video port type | HDMI |
| Infrared (IR) frequency range | 20 - 60 kHz |
| Transmitter Micro-USB ports quantity | 1 |
| Transmitter USB Type-B ports quantity | 1 |
| Receiver Micro-USB ports quantity | 1 |
| Receiver USB Type-A ports quantity | 2 |
| Compliance certificates | CE; RoHS; REACH; Federal Communications Commission (FCC); UKCA |
