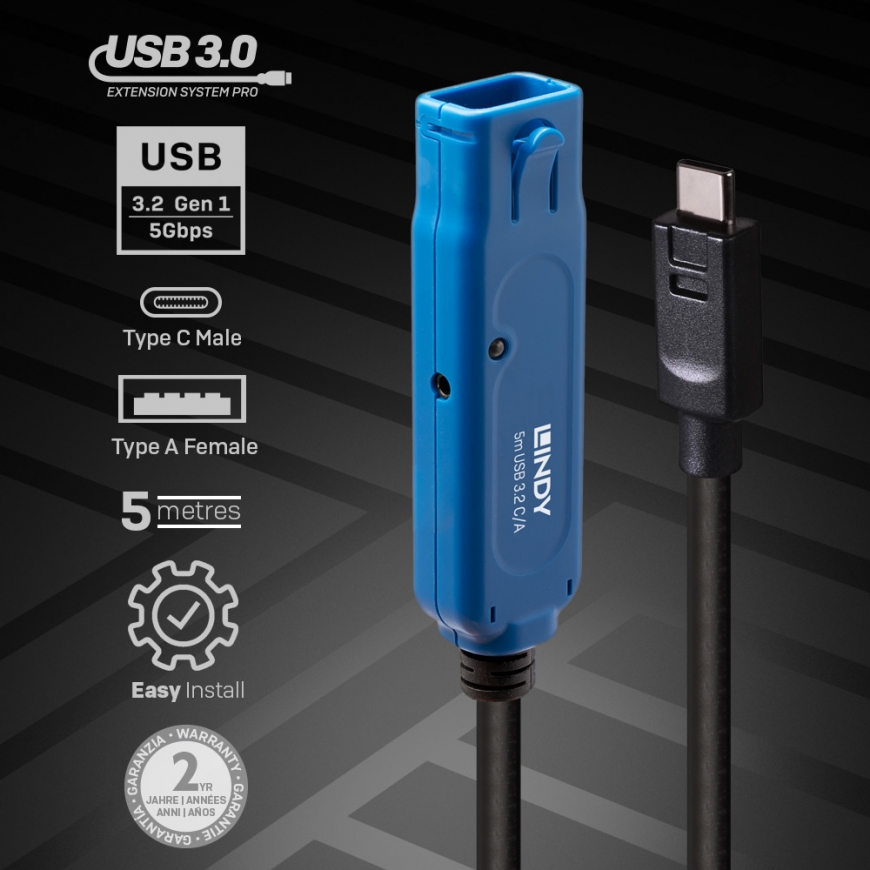

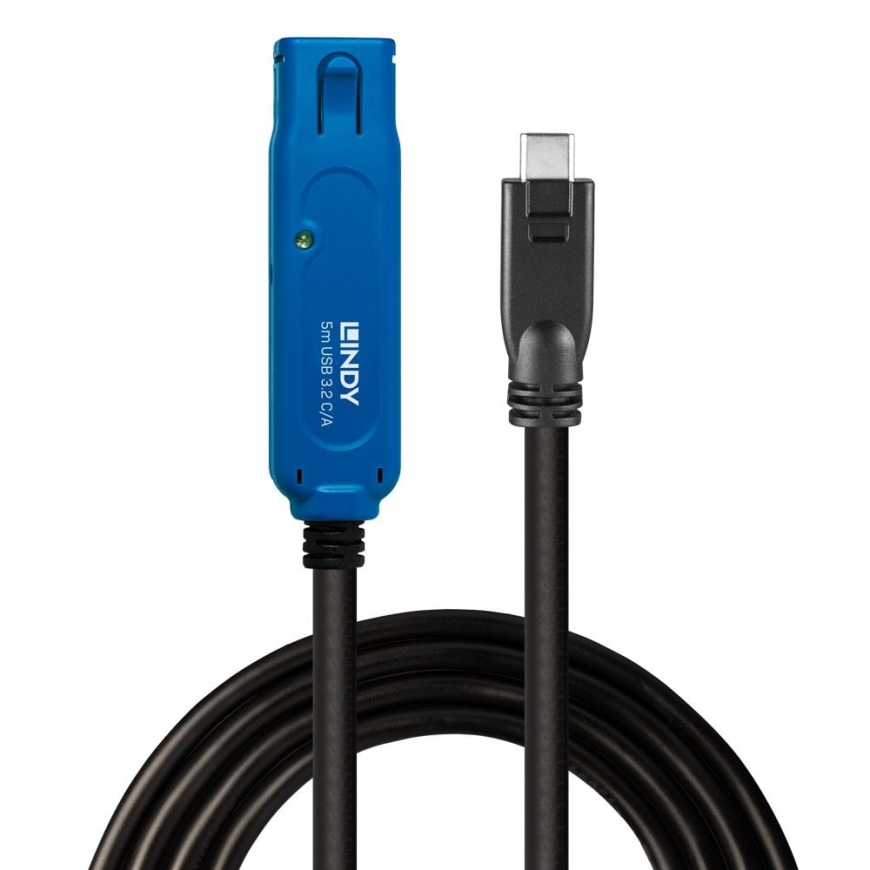

Lindy 5m USB 3.2 Gen 1 C/A Active Extension Pro
50,07 €
Monthly payment from 2.19 €
2459551 43380
4002888433808
2026-07-28
You are interested in this product?
This 5m USB 3.2 C/A Active Extension Cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at about 40m (depending on the cable configurations used).
Please note that only the USB 3.2 C/A Active Extension Pro 5m (Nr. 43380) or the 8m version (Nr. 43381) can be connected directly to your computer. Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any segment of the Extension Pro System (Nr. 43157, 43158, 43229, 43361). If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it's power supply as the final part of the extension.
If a USB Type C device is to be connected, a USB 3.0 Active Extension Type A to C (no. 43375 or 43376) can also be used as the last segment.

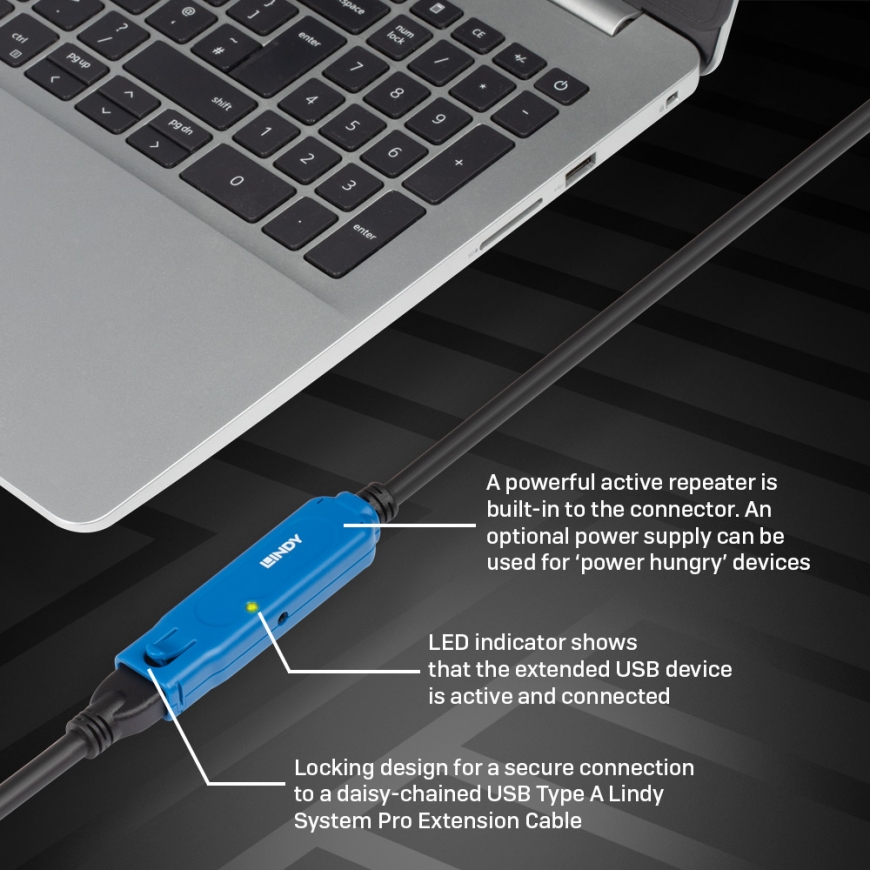

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Features | |
| Cable type | Round cable |
| Cable length | 5 m |
| Connector 1 | USB C |
| Connector 2 | USB A |
| Connector contacts plating | Gold |
| AWG wire size | 28/28/24 |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Tinned copper |
| Product colour | Black |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector housing material | Plastic |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Contact material | Brass |
| Connector material | Nickel |
| Transmission medium | Twisted pair |
Weight & dimensions | |
| Bend radius (min) | 5.5 cm |
| Weight | 220 g |
| Connector 1 dimensions (WxDxH) | 12.4 x 39.7 x 9 mm |
| Connector 2 dimensions (WxDxH) | 20 x 80 x 13 mm |
| Cable diameter | 5 mm |
Packaging data | |
| Package height | 63 mm |
| Package width | 230 mm |
| Package weight | 420 g |
| Package depth | 198 mm |
| Package type | Carton |
| Quantity per pack | 1 pc(s) |
Sustainability | |
| Sustainability compliance | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Logistics data | |
| Warranty period | 2 year(s) |
Power | |
| Power note | 2.5/0.7mm DC |
Certificates | |
| Compliance certificates | CE, RoHS, REACH, Federal Communications Commission (FCC) |
| Certification | California Proposition 65 |
Packaging content | |
| Manual | Yes |
