ATEN 16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
ATEN 16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
ATEN 16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
ATEN 16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
ATEN 16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
ATEN 16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
ATEN 16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
ATEN 16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
ATEN 16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

ATEN 16-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port

605,11 €
Monthly payment from 16.48 €
2453574

CS1716I-AT-G

4710423776722, 0148560164876

Shipping 3-7 b.d.

Quantity

You are interested in this product?
(Read terms of service)

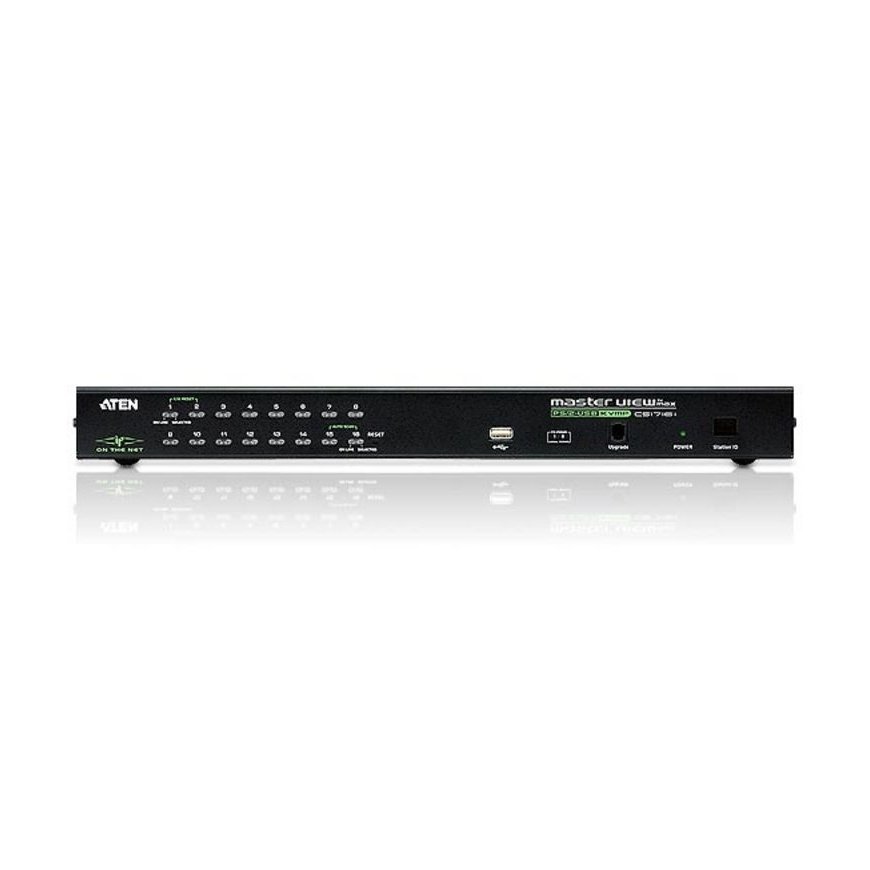

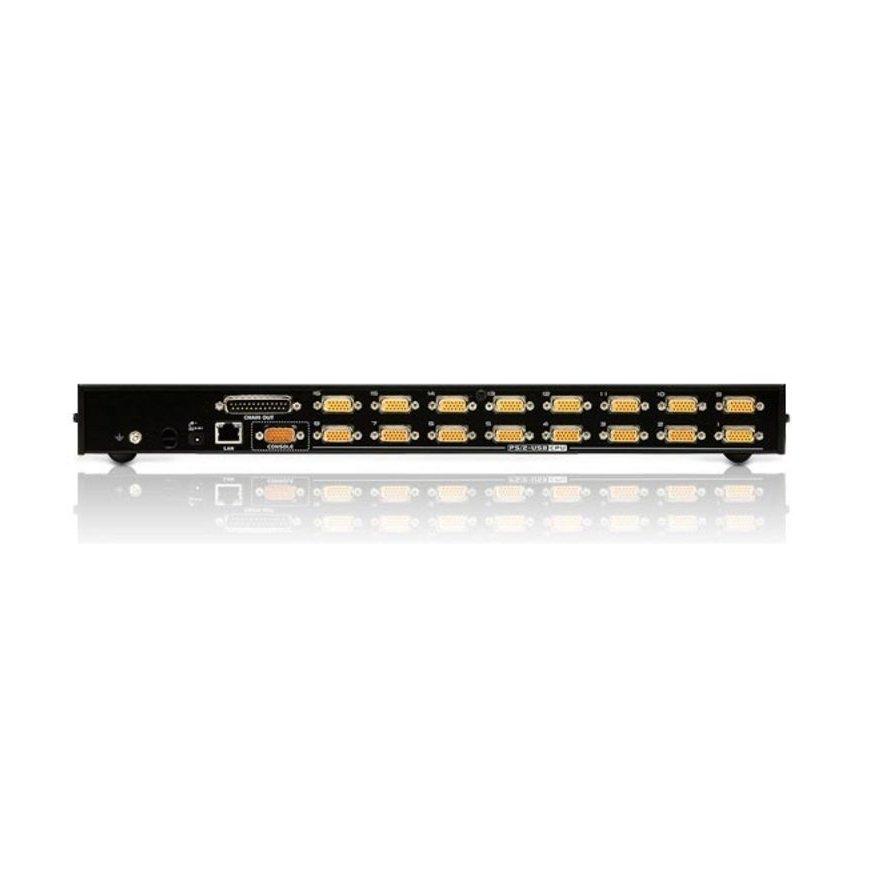

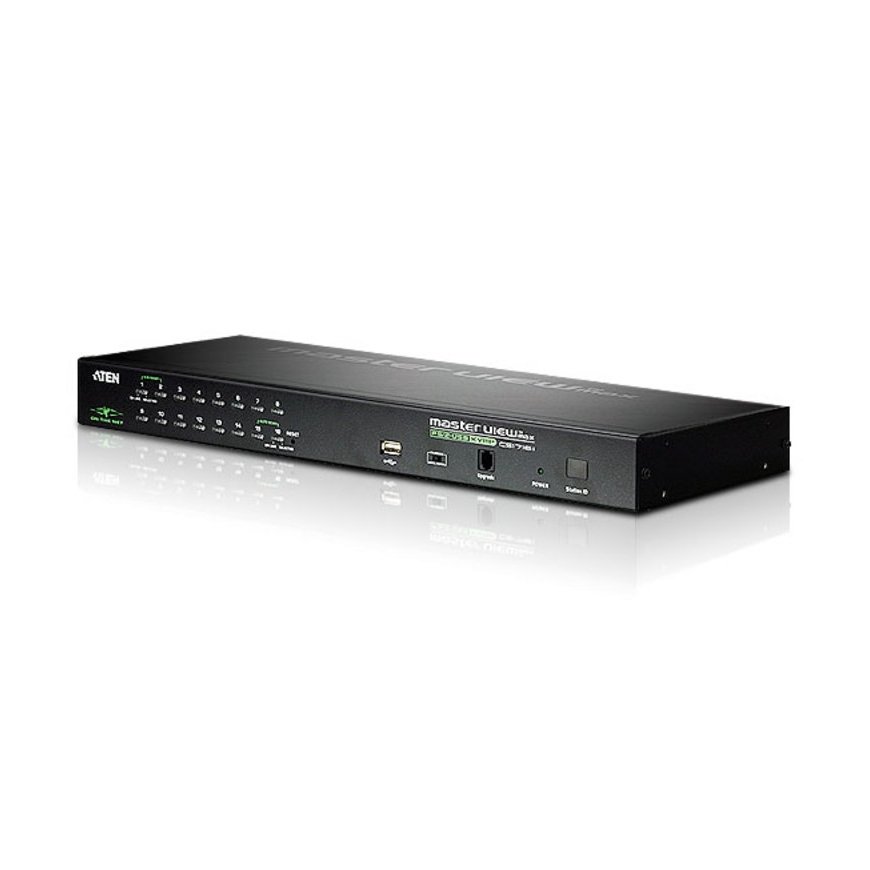

The CS1716i is a 16-port KVM switch in a 1U housing for convenient rack mounting. This device allows system administrators to access the attached servers both locally and over IP (LAN and/or WAN). CS1716i works platform independent and supports e.g. Windows, Linux, MAC, SUN

The special KVM cables and the Aten feature “Video DynaSync", makes sure that an optimal video resolution can be maintained. In addition it's easy to expand the KVM installation. By using Daisy Chain cables the number of accessible servers can be increased up to 256.
1x CS1716i KVM over IP Switch
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Network
Ethernet LAN Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Security
Security algorithms SSL/TLS, 128-bit RC4
Design
LED indicators Yes
Product colour Black
Housing material Metal
Rack capacity 1U
Built-in display No
Features
Firmware upgradeable Yes
Power
Power consumption (typical) 11 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 437.2 mm
Depth 159.6 mm
Height 44 mm
Weight 3.59 kg
Packaging data
Package width 116 mm
Package depth 540 mm
Package height 233 mm
Package weight 3.98 kg
System requirements
Windows operating systems supported Yes
Mac operating systems supported Yes
Linux operating systems supported Yes
Other features
Number of users 32 user(s)
Input voltage 5.3 V
Rack mounting Yes
Technical details
Compliance certificates RoHS
Logistics data
Master (outer) case width 375 mm
Master (outer) case length 565 mm
Master (outer) case height 258 mm
Master (outer) case gross weight 12.6 kg
Products per master (outer) case 3 pc(s)
Harmonized System (HS) code 85176200
Packaging content
AC adapter included Yes
Cables included KVM, DC
Manual Yes
Quick installation guide Yes
