COMPRESSION PLUG BNC-W/4879*P50 RG6 NS100 Triset113
2405789 5902887003424
Shipping 1-14 b.d.

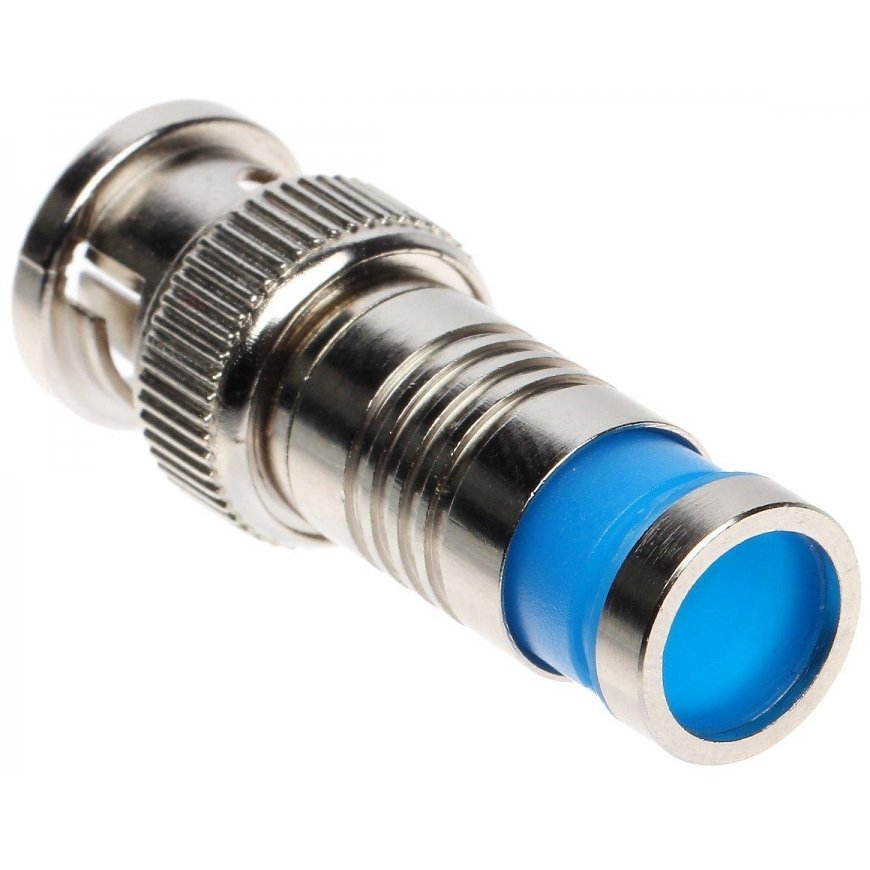

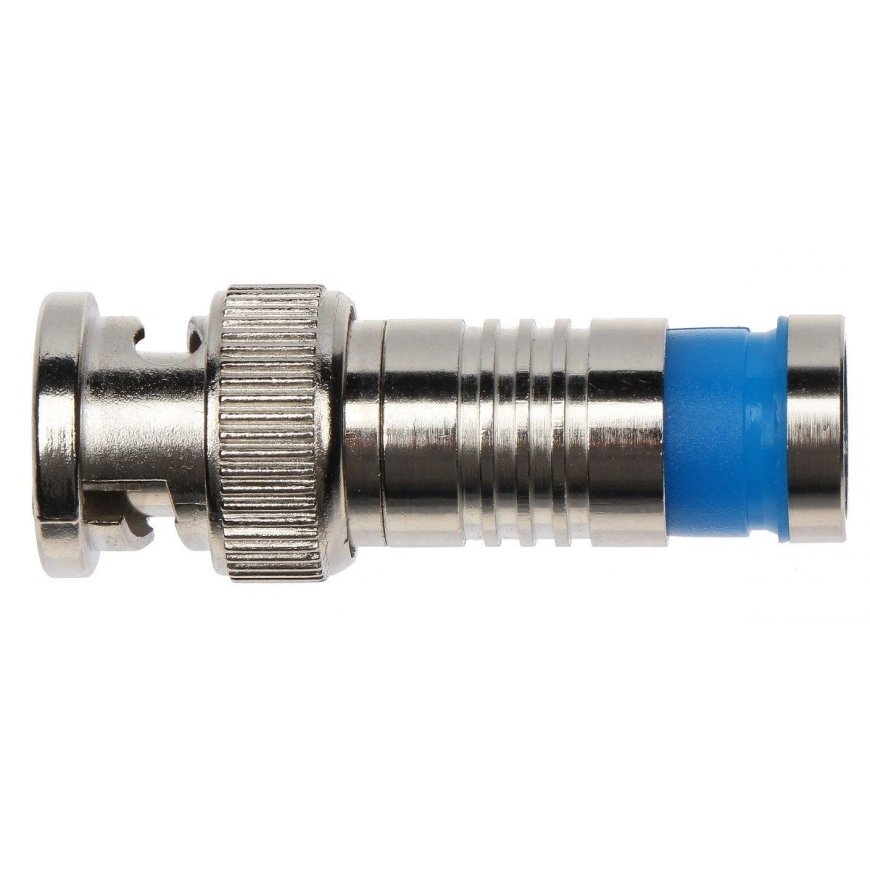

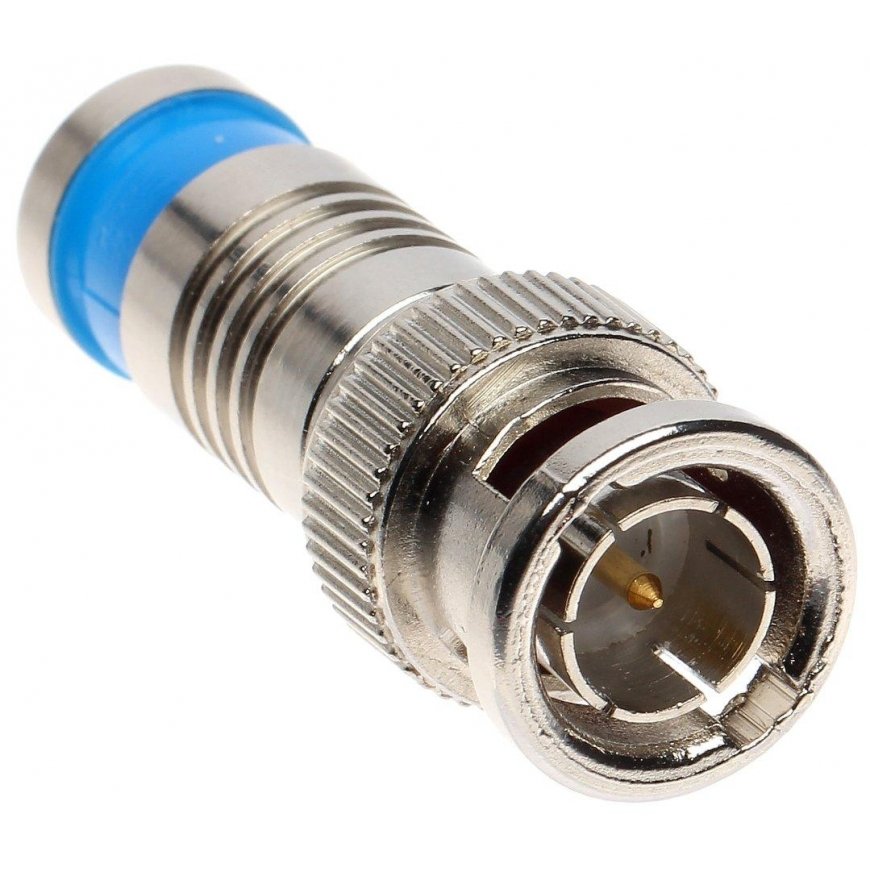

BNC plug, crimp on coaxial cable.
The type of materials used guarantees protection against corrosion. The highest manufacturing accuracy affects both the appearance of the joint and its quality. It is very easy to press the plug correctly, while ensuring a correct and stable connection that will last a very long time.
The connector is manufactured under very strict technological discipline.
When the plug is inserted into the socket of the device, there is no looseness characteristic of cheaper connectors, which becomes an obstacle to signal transmission.
The central conductor of the coaxial cable is centered during insertion into the connector and hits the correspondingly prepared non-perforated hole.

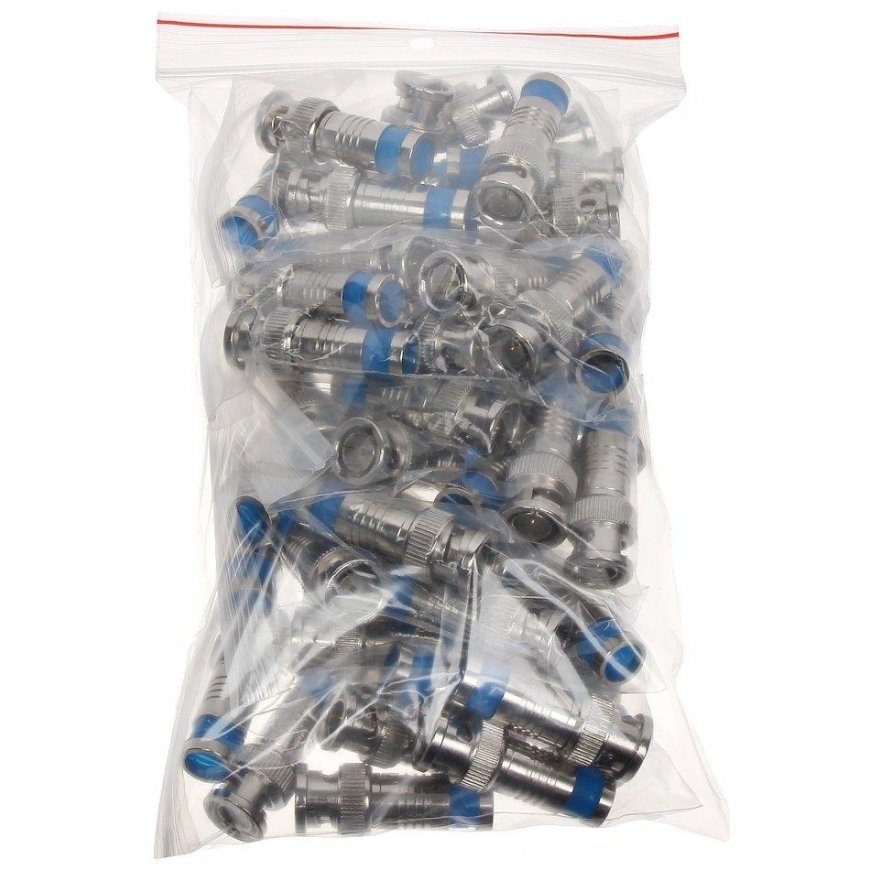

| In the package : | 50 pcs. The price shown is per pack |
| Connection type : | BNC Plug |
| Fastening of connecting elements : | Compression fastening |
| Purpose : | Coaxial cable |
| Fixation of the vein : | Embossing |
| Dielectric diameter : | max. 4.8 mm |
| Cable diameter : | max. 7.9 mm |
| Screen Mount : | Compression fastening |
| Water impermeability : | ✔ |
| Example of use : | RG6, NS100-TRISHIELD Triset113 |
| Main features : | A properly crimped connection cannot be broken Water resistance of the connector and cable connection Very simple and quick installation Corrosion resistance Very low losses in the entire working frequency band Special pliers HT-5082R are required for crimping |
| Weight : | 0.013 kg |
| Dimensions : | Ø 14.5 mm x 39 mm |
| Warranty : | 2 years |
