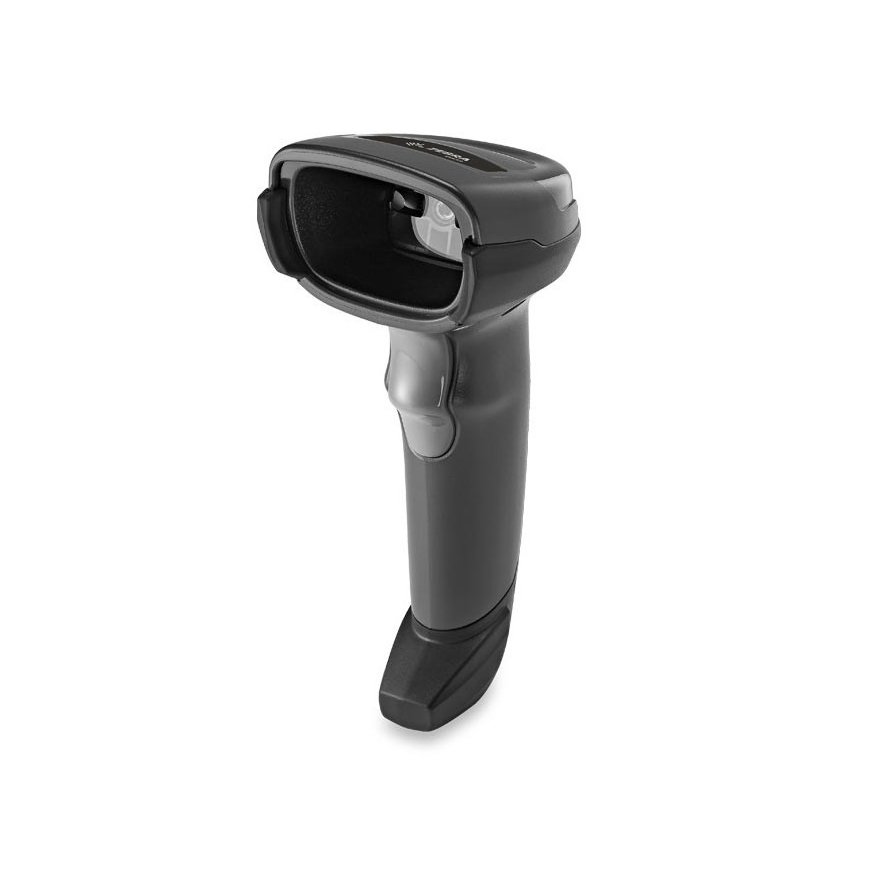

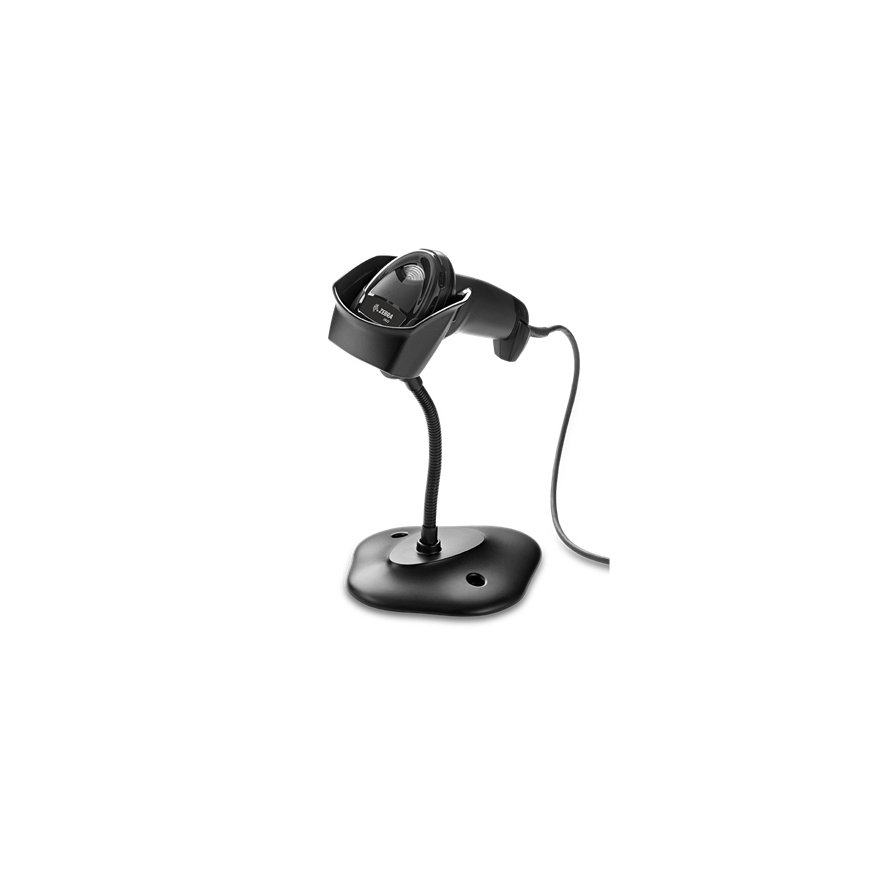

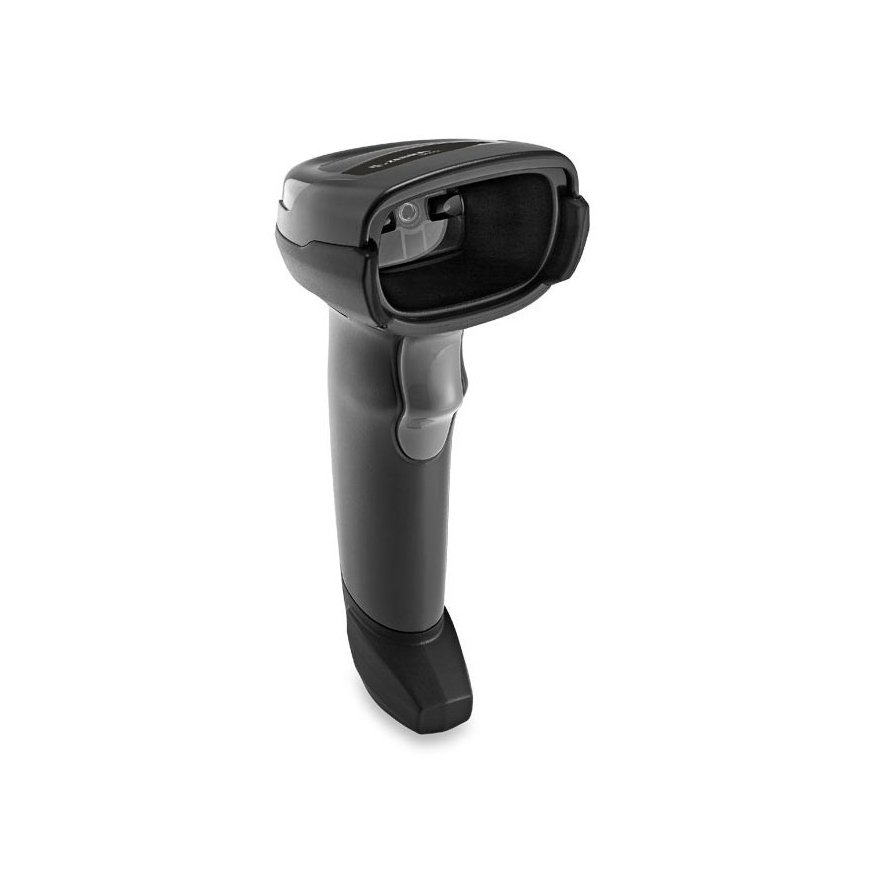

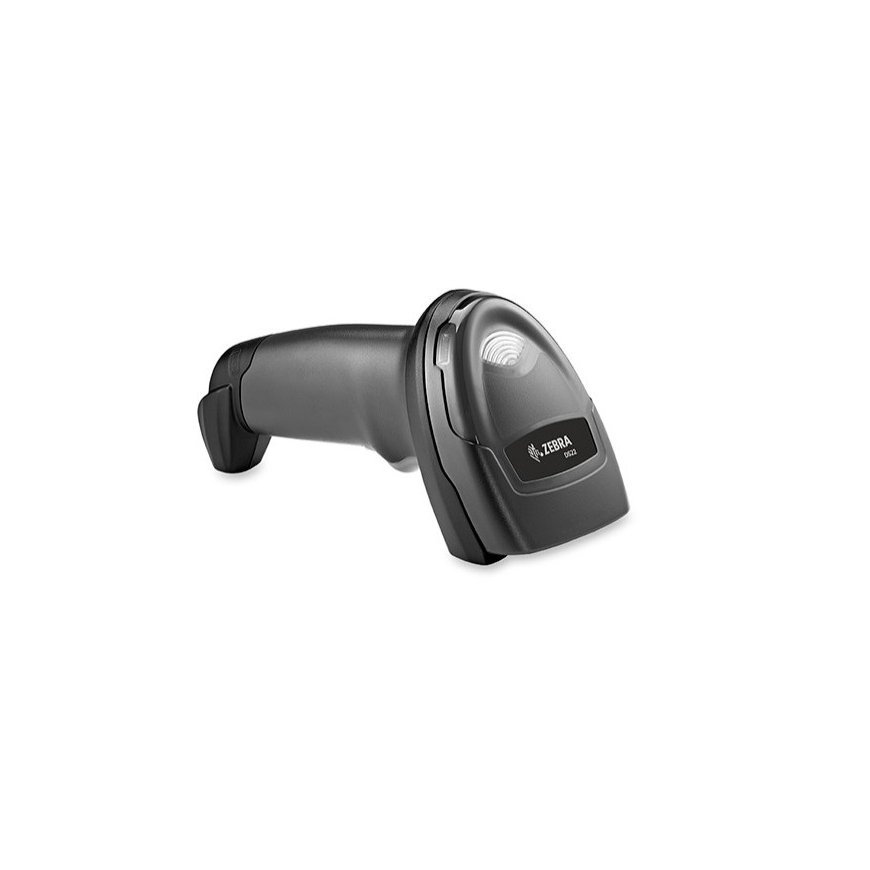

Zebra DS2208 Handheld bar code reader 1D/2D LED Black
98,46 €
Monthly payment from 3.44 €
2400367 DS2208-SR7U2100SGW
8596375044401, 0761973626986, 4060533163173, 5711783381266
2026-07-15
You are interested in this product?
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.
But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
Features | |
| Scanner type | 1D/2D |
| Product colour | Black |
Performance | |
| Sensor type | LED |
| International Protection (IP) code | IP42 |
| LED indicators | Yes |
Technical details | |
| Working distance | 36.8 cm |
| Linear (1D) barcodes supported | Code 39, EAN-13, Codabar, Code 128, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C., Code 11 |
Scanning | |
| Wavelength | 645 nm |
| Yaw reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Tilt reading angle | -65 - 65° |
| Type | Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, PDF417, QR Code, Han Xin, Composite Codes, TLC-39 |
| Motion tolerance (cm/s) | 13 |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB, RS-485, Keyboard wedge |
Other features | |
| Certification | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07, IEC 62471, EN 55022 (Class B); EN 55032 (Class B), EN 55024, EN 61000-3-2, EN 61000-3-3, 47 CFR Part 15, Subpart B, Class B, ICES-003 Issue 6, Class B |
| Compliance certificates | RoHS |
Power | |
| Battery capacity | 2400 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power source type | DC |
| Battery life | 100 h |
| Power consumption | 250 mA |
| AC adapter output voltage | 5 V |
Weight & dimensions | |
| Weight | 161.6 g |
| Width | 66 mm |
| Depth | 99 mm |
| Height | 165 mm |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging content | |
| Cables included | Micro-USB |
Packaging data | |
| Charging base | No |
Logistics data | |
| Harmonized System (HS) code | 84716070 |
