GRAPHIC KEYBOARD FOR ALARM PANEL TM70 PARADOX
2395450 TM-70
5902887027857
Shipping 1-14 b.d.

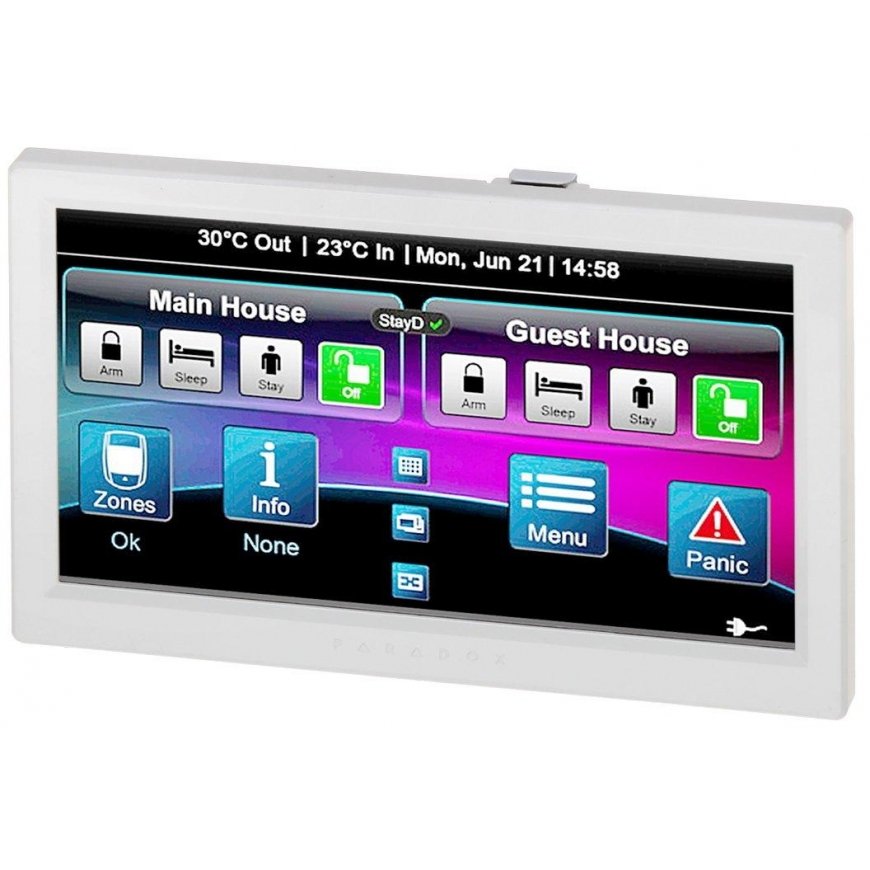

Touch keyboard TM-70 has an attractive appearance and facilitates the daily operation of advanced alarm systems and home automation using the central option PARADOX: Digiplex EVO, Spectra, Magellan.
The simple and intuitive menu system makes servicing simple and obvious.
The visual function of high plans allows immediate localization of the damaged sensor.
Overview table mode allows you to view the status of all disk partitions and lines on one screen.
The addition of functions related to the alarm system can display the temperature inside and outside the premises (requires an additional sensor).

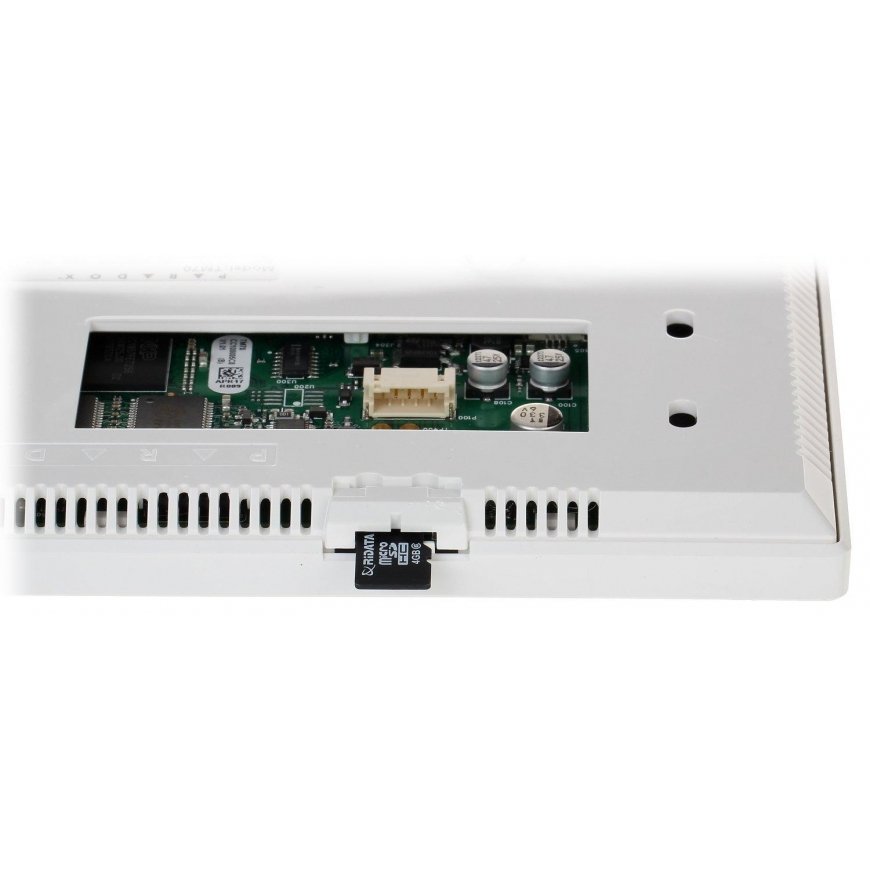

In screen saver mode, the keyboard can act as a "photo frame" to display images stored on the MicroSD card.
| Support : | PARADOX: SPECTRA SP/MAGELLAN MG V4.72+, EVO V2.16+ |
| Selected features : | Clear backlit LCD display for detailed system status information 7 "capacitive touch screen - 16 bit / 800 x 480 px, 1 Input - possibility of connecting 1 alarm signaling line / Temperature sensor The entire on-screen menu is in Polish Servicing single or multiple disk partitions warning signals: ATTACK, FIRE, HELP, called by keyboard Independent setting of gong lines Audible alarm for selected system events SpotOn Locator - feature of high plans, One Screen Monitoring - an overview summary table function, Connection to a 4-wire communication bus 8 control options with PGM outputs temperature sensor, microSD card service - uploading high plans and photos, Working mode digital photo frame |
| Feed : | 9 V ... 15 V DC |
| Current consumption : | max. 330mA |
| Color : | White |
| Permissible relative humidity of the environment : | 5% ... 90% |
| Weight : | 0.306 kg |
| Dimensions : | 177 x 114 x 15 mm |
| Country of origin : | Canada |
| Manufacturer / Brand : | PARADOX |
| Warranty : | 2 years |
