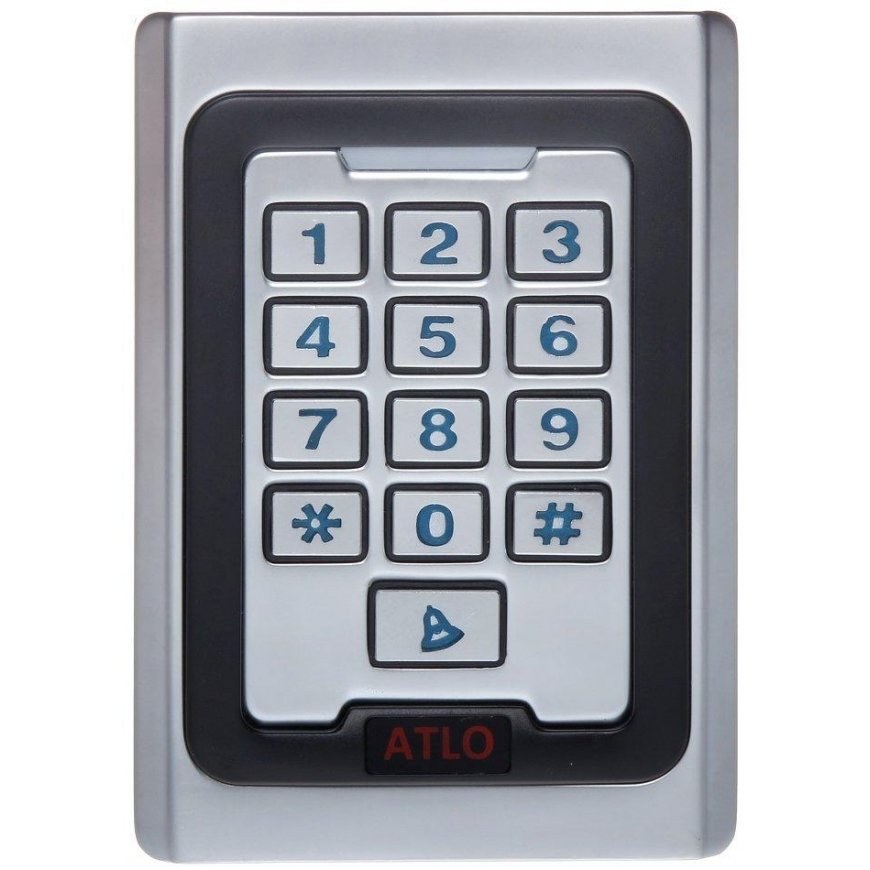

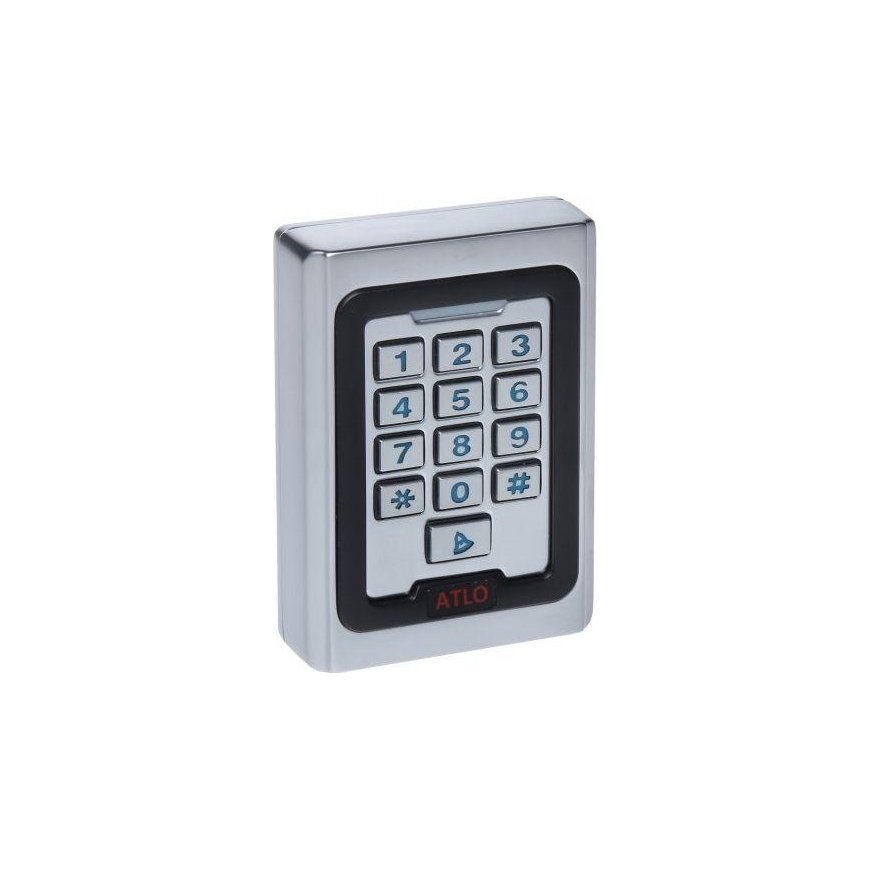

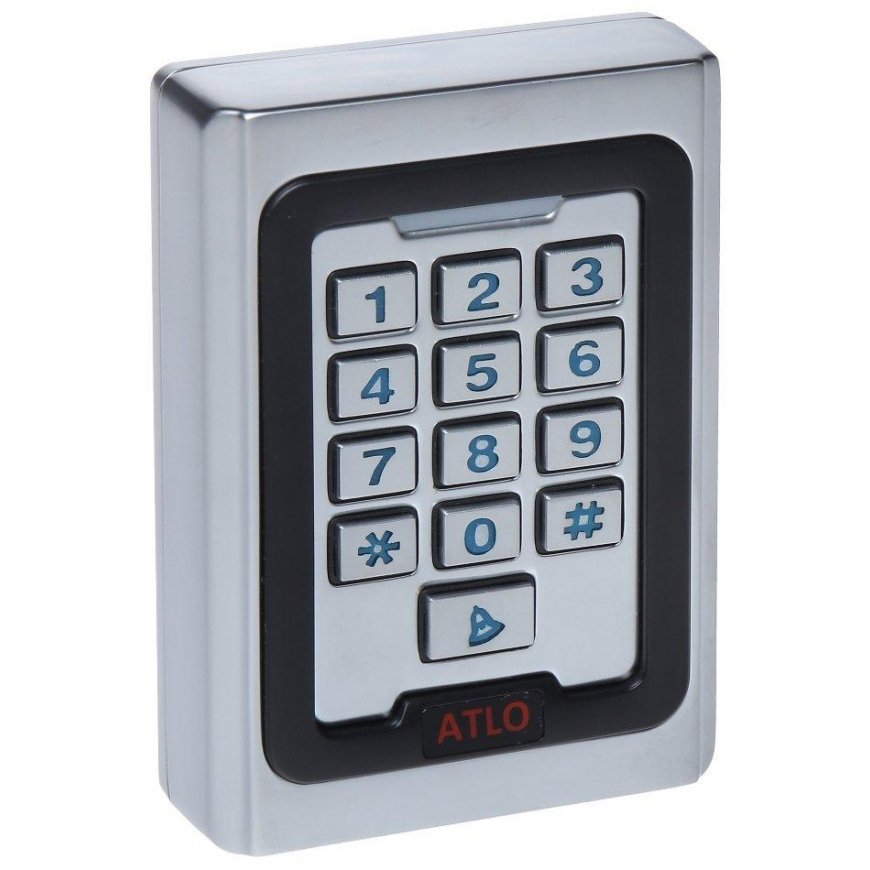

CODE LOCK ATLO-KRM-511
2394645 ATLO-KRM-511
5902887002748
Shipping 1-14 b.d.
Internal, independent code lock with RFID reader.
Independent installation work gives the user the opportunity to:
Opening with the help of a card or PIN code.
Adding saved cards or PIN codes to the memory.
Would leave the door open alarm.
Sound and optical alarm.
Options provided to the administrator:.
Keyboard programming.
Adding a new card with a keyboard.
Adding a new card and entering a PIN code.
Changing the user's PIN code.
Deleting a user's PIN code.
Setting the time to remove the blockade.
Return to default settings.
| Card support : | Unique EM 125kHz |
| Remote card reading distance : | max. 6 cm |
| Automatic work : | ✔ |
| Integrated keyboard : | ✔ |
| Call Button : | ✔ |
| Tamper output : | - |

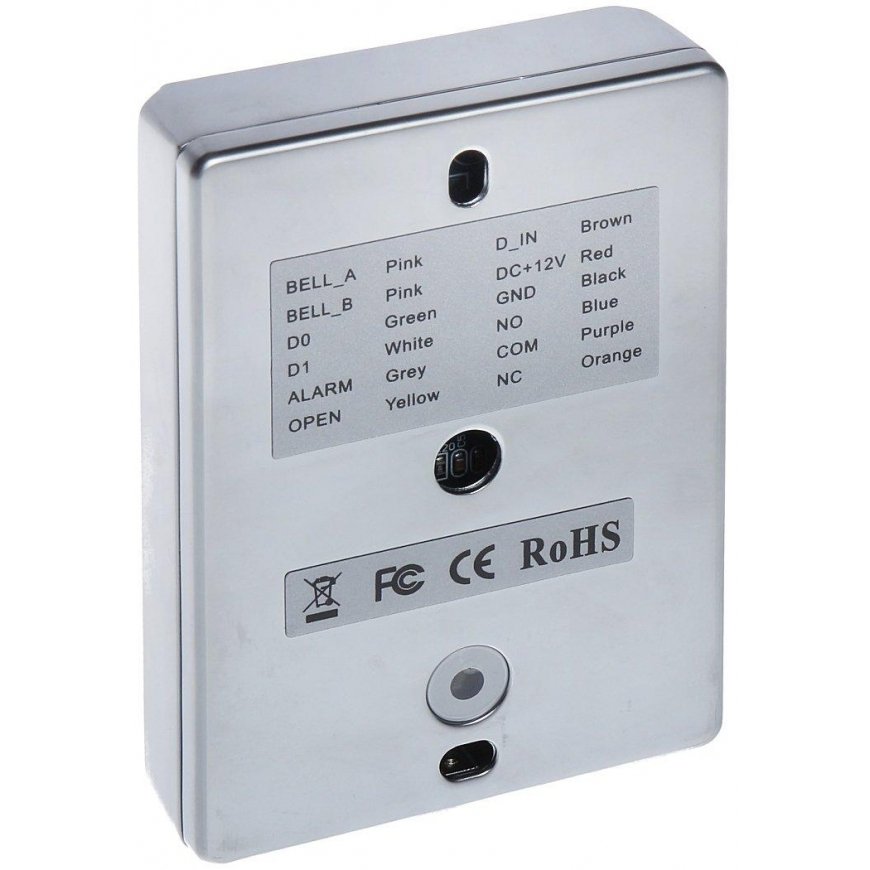

| Connection : | Wiegand 26 |
| Feed : | 12 V DC ± 10% |
| Maximum current demand : | 55 mA |
| Main features : | 2000 indexed users Identification: Card and/or PIN code Blue button lighting Cooperation with door contact and exit button NO/NC output Possibility of connecting an additional ATLO-R series reader (reciprocal access control) |
| Working temperature : | -45 °C ... 60 °C |
| Permissible relative humidity of the environment : | 10 ... 90% (non-condensing) |
| Sealing class : | IP40 |
| Body : | Metallic |
| Color : | Silver + Black |
| Weight : | 0.44 kg |
| Dimensions : | 77 x 110 x 27 mm |
| Manufacturer / Brand : | ATLO |
| Warranty : | 3 years |
