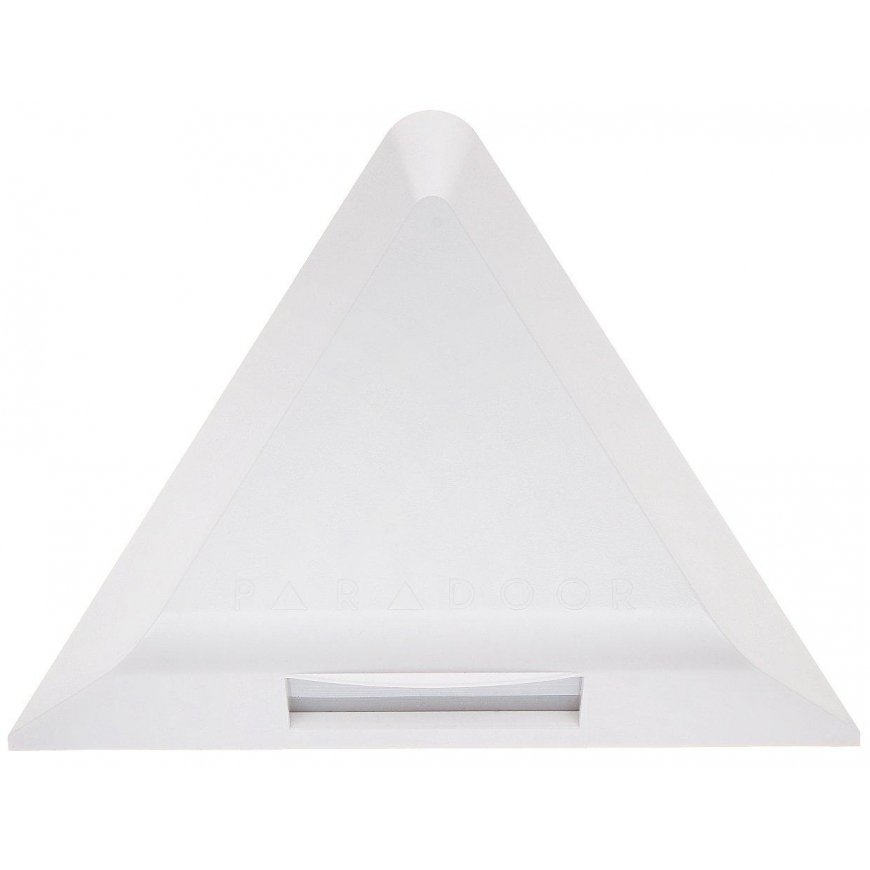

PIR SENSOR PARADOOR-460 PARADOX
53,41 €
Monthly payment from 2.28 €
2393535 PARADOOR-460
5902887035050
Shipping 1-14 b.d.
You are interested in this product?
The passive infrared sensor PARADOOR-460 is designed for indoor use.
Thanks to advanced signal analysis algorithms, it is characterized by very stable operation and a low probability of false alarms.
PARADOOR-460 is a vertical curtain for the protection of one belt of a room, e.g. walls with windows for protection.
| Usage : | For indoor spaces |
| Pyroelement : | Double |
| Sensor type : | Passive IR (PIR) |

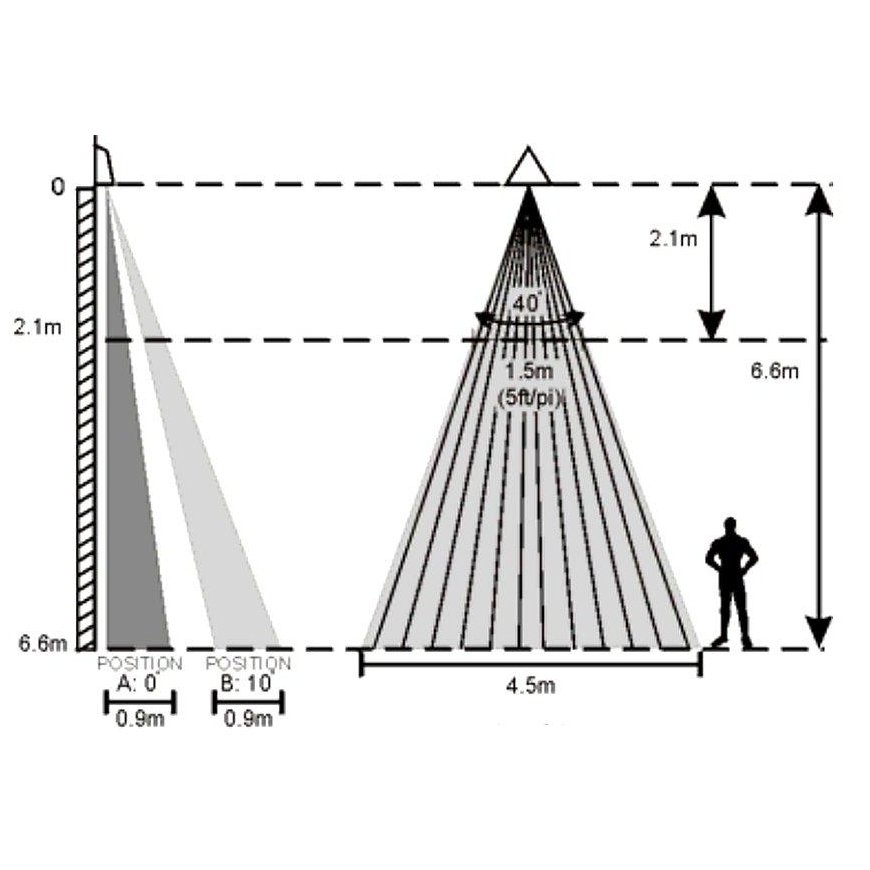

| Distance : | 2.1 x 1.5 m - detection of palm-sized objects 6.6 x 4.5 m - motion detection of human-sized objects |
| Detection angle : | 40 ° |
| Recommended installation height : | 2 ... 2.7 years |
| Sensitivity adjustment : | - |
| Self-diagnosis : | - |
| Resistance to animals : | - |
| Pre-alarm function : | - |
| Maximum output load : | 28 V DC / 150 mA |
| Alarm outputs : | NO/NC |
| Violation alarm time : | 0.5 ... 25 s |
| Detectable movement speed : | 0.2 ... 3.5 m/s |
| Digital temperature compensation : | - |
| Feed : | 9 ... 16 V DC / 20 ... 27 V DC |
| Maximum current demand : | 18 mA |
| Main features : | Adjustable Fresnel lens position: 0 ° ... 10 ° vertical curtain Tamper detection - housing opening Test mode EN 50130-4, EN 55022 |
| Working temperature : | -10 °C ... 50 °C |
| Color : | White |
| Weight : | 0.076 kg |
| Dimensions : | 92 x 114 x 33 mm |
| Country of origin : | Canada |
| Manufacturer / Brand : | PARADOX |
| Warranty : | 2 years |
